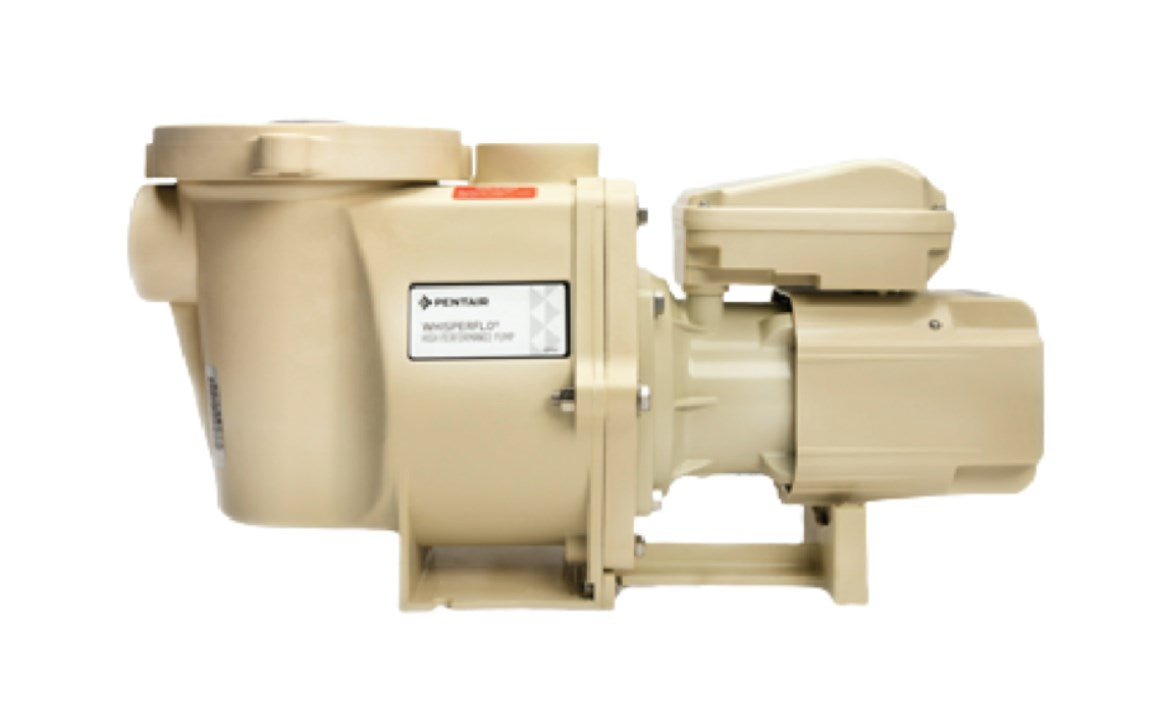

Pentair WhisperFlo® High Performance Pump 2HP 3-Phase 208-230V
The Pentair WhisperFlo® 2 HP High Performance Pump 3-Phase (011643) is a heavy-duty commercial single-speed pool pump built on the proven WhisperFlo platform. Robust thermoplastic construction with the Cam & Ramp™ see-through lid design for durability and easy servicing. Commercial-duty 56-frame motor with threaded shaft and NEMA-rated square flange — designed for long service life. CSA certified.
Note: This is a 3-phase pump requiring 208-230V 3-phase electrical service. 60-day manufacturer warranty.
Key Features
Commercial-Duty 56-Frame NEMA Motor
Threaded shaft, NEMA-rated square flange, commercial-duty 56-frame motor designed for long life in demanding applications.
TEFC Motor / 3-Phase
Totally Enclosed Fan-Cooled motor for outdoor commercial pool installations.
Cam & Ramp™ See-Through Lid
Quick basket inspection and easy access — the proven WhisperFlo service design.
Robust Thermoplastic Construction
Heavy-duty housing for durability in commercial pool environments.
Specifications
| Horsepower | 2 HP |
| Service Factor HP (THP) | 2.6 SF HP |
| Motor Speed | Single Speed |
| Motor Type | TEFC, 56-Frame NEMA Square Flange |
| Phase | Three Phase |
| Voltage | 208V / 230V |
| WEF | 3.4 |
| Product Weight | 47.05 lb |
| Shipping Dimensions | 28.35 × 12.62 × 15 in |
| Certifications | CSA Certified |
| Warranty | 60 Days |
What's in the Box
- Pentair WhisperFlo 2 HP 3-Phase Pump (011643)
- User Manual
Warranty
The Pentair WhisperFlo 011643 comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
