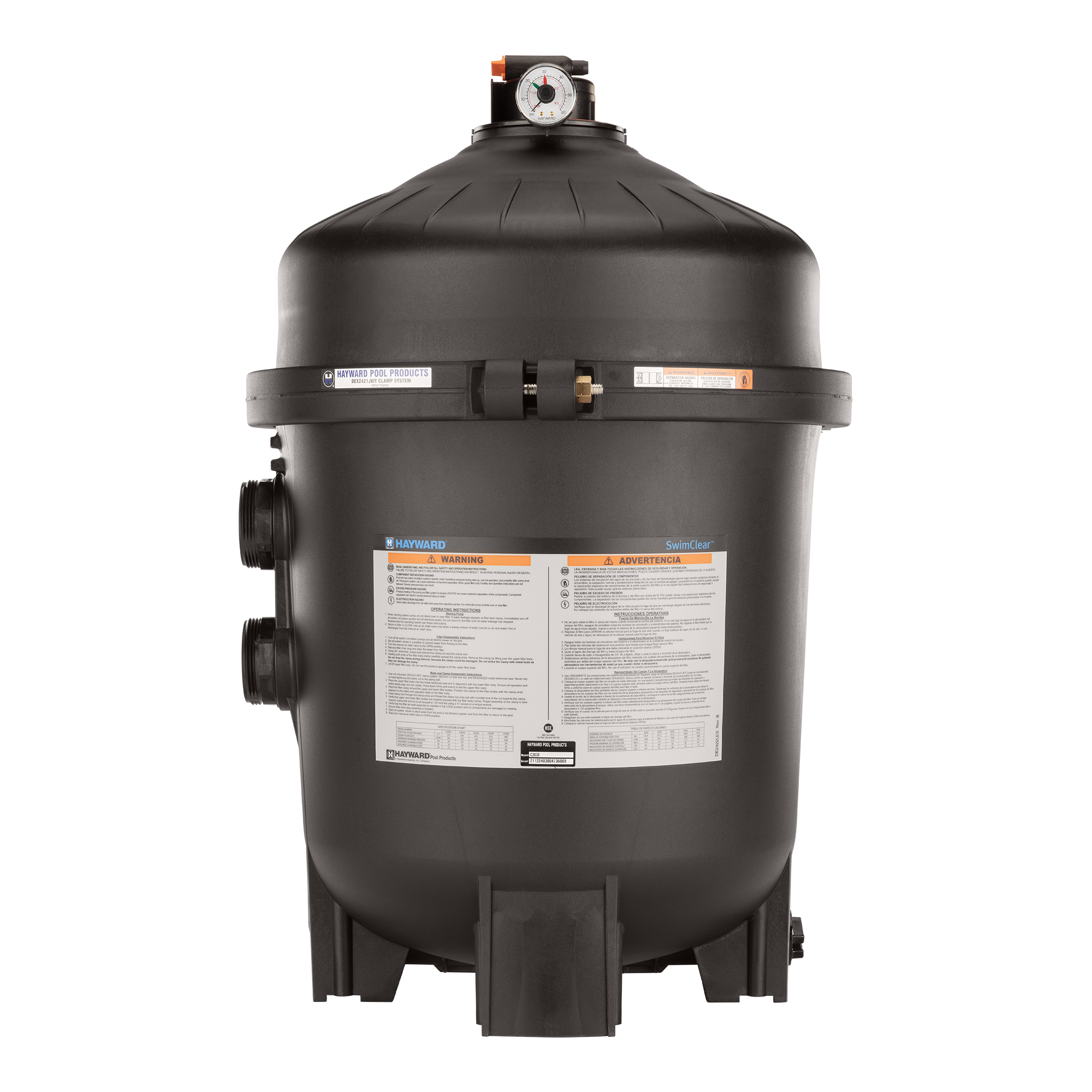

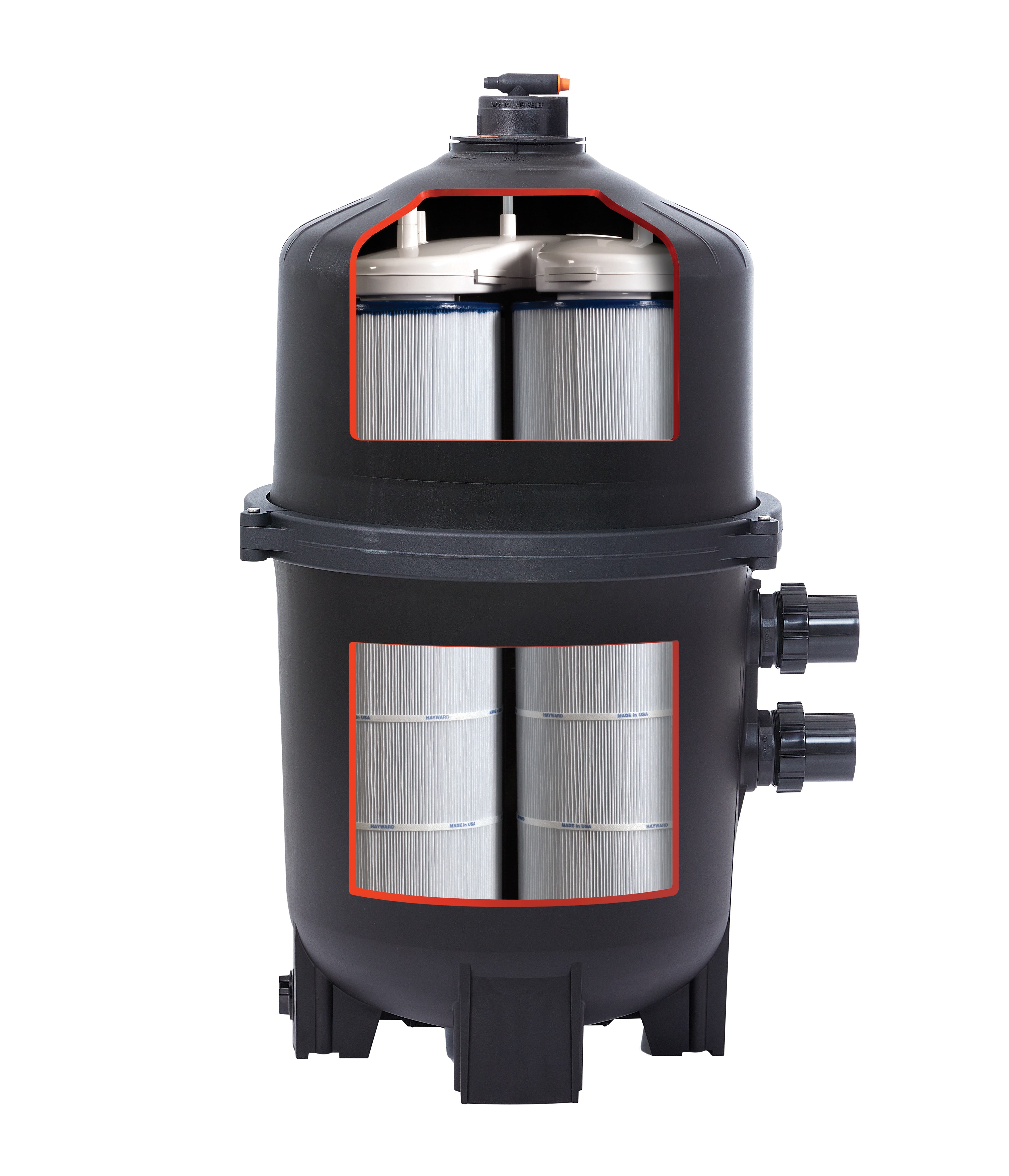

Hayward SwimClear™ 225 Sq Ft Multi-Element Cartridge Filter
The Hayward SwimClear™ 225 Sq Ft Multi-Element Cartridge Filter is a compact SwimClear model suited for both new pool and aftermarket installations. 225 sq ft of filtration with no backwashing required — saves up to 2,500 gallons of water per year. Rated for 84 GPM at 50 PSI with only 15 inches of vertical clearance needed.
Built with a durable injection-molded tank and SwimClear's proven efficient flow design. Green certified. Backed by a 1-year warranty.
Key Features
225 Sq Ft — No Backwashing
225 sq ft of cartridge filtration — saves up to 2,500 gallons of water per year vs. backwash filter operation.
Low Vertical Clearance — 15 Inches
Only 15 inches of vertical clearance required — the most compact SwimClear model, ideal for tight equipment pads or low-ceiling installations.
84 GPM Flow Rate
Sized for mid-range in-ground pools and spas.
New Pool and Aftermarket Compatible
Suitable for both new construction installations and replacement of existing filters.
Most Energy-Efficient Flow
SwimClear's efficient flow design lowers cost of operation — green certified.
1-Year Warranty
Hayward residential warranty.
Who It's For
- In-ground pool and spa owners who need cartridge filtration with minimal vertical clearance
- Equipment pads or enclosures where overhead height is limited to 15 inches above the filter
- Mid-range pools suited to 84 GPM where no backwashing and 225 sq ft capacity is the right specification
- Hayward system users wanting brand-matched SwimClear filtration in a compact format
Specifications
Performance
| Filtration Area | 225 sq ft |
| Design / Max Flow Rate | 84 GPM |
| Max Working Pressure | 50 PSI |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Color | Beige / Gray |
| Inlet/Outlet Spacing | 5 in center-to-center |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 15 in |
Physical
| Product Weight | 68 lb |
| Shipping Dimensions | 24.6 × 23.1 × 33.8 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C2030 Filter Tank
- Cartridge Element
- One-Piece Flange Clamp
- User Manual
Warranty
The Hayward SwimClear 225 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the C2030 (225 sq ft / 84 GPM) fit in the SwimClear lineup?
The C2030 sits below the 325 sq ft C3030 (122 GPM) and above the single-element C200S (200 sq ft / 120 GPM). Its 84 GPM rating makes it ideal for pools that don't need the higher flow of the C3030, while the 225 sq ft filter area provides a meaningful step up from the C200S. The C2030's standout spec is its 15-inch vertical clearance — the lowest in the SwimClear line, making it uniquely suited for tight installations.
How often does the cartridge need cleaning?
Clean when pressure rises 8–10 PSI above the clean starting pressure. Open the one-piece flange clamp to access the cartridge element and rinse with a garden hose.
