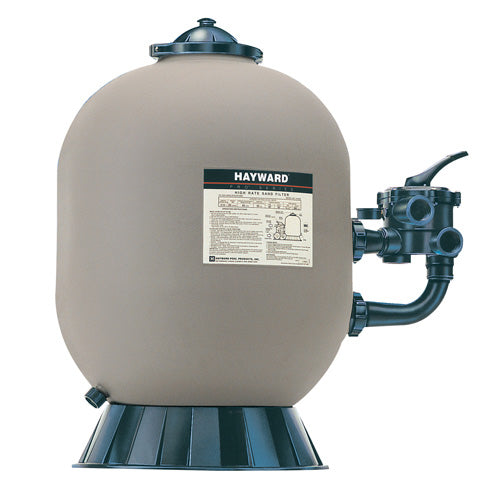

Hayward Pro Series 24" Side Mount Sand Filter with 2" Slide Valve
The Hayward Pro Series 24" Side Mount Sand Filter with 2" Slide Valve (S244SV) is a compact complete ProSeries system with a 2-inch slide valve — the two-position (filter/backwash) valve choice for commercial, professional, and residential applications. The ProSeries umbrella-fold self-cleaning lateral system provides efficient flow and totally balanced backwashing for long-lasting performance.
24-inch side-mount tank with 3.14 sq ft filtration area, injection-molded polymer base, 50 PSI working pressure. Suitable for in-ground pools, spas, and ponds. Backed by a 1-year warranty.
Note: Filter sand is not included and must be sourced separately.
Key Features
2" Slide Valve Included
Complete system — 2-inch slide valve for simple two-position filter/backwash operation.
24" Compact Side-Mount
3.14 sq ft filtration area for smaller pools where the 31-inch tank is oversized.
Umbrella-Fold Self-Cleaning Laterals
Efficient, balanced flow and backwashing for long-lasting performance.
Corrosion-Proof Construction
Durable all-weather polymer tank and base.
Large Pressure Sand/Water Drain
Rapid winterizing or servicing drain port.
1-Year Warranty
Hayward warranty coverage.
Who It's For
- Commercial, professional, and residential pool installations where a 2-position slide valve is specified on a 24-inch tank
- Smaller pools where the 24-inch ProSeries is correctly sized
- Installations where a slide valve is preferred over a VariFlo multiport
Specifications
Performance
| Filtration Area | 3.14 sq ft |
| Max Working Pressure | 50 PSI |
Valve
| Control Valve | 2 in Slide Valve (Included) |
| Valve Positions | Filter / Backwash (2-Position) |
| Mounting | Side Mount |
Tank
| Tank Diameter | 24 in |
| Lateral System | Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded Polymer |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 62 lb |
| Shipping Dimensions | 24.6 × 24.6 × 44 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa / Ponds (Residential, Commercial, Professional) |
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S244SV 24" Sand Filter Tank
- 2" Slide Valve
- User Manual
Note: Filter sand is not included and must be purchased separately.
Warranty
The Hayward Pro Series S244SV comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the S244SV (slide valve) differ from the S244S (VariFlo valve)?
Both are complete 24-inch ProSeries side-mount systems. The S244S includes a 1-1/2 inch VariFlo multi-position valve with 6 positions (Filter, Backwash, Rinse, Waste, Recirculate, Closed). The S244SV includes a 2-inch slide valve with two positions (Filter and Backwash). Choose the S244SV when a simpler two-position valve is required or preferred for your installation.
