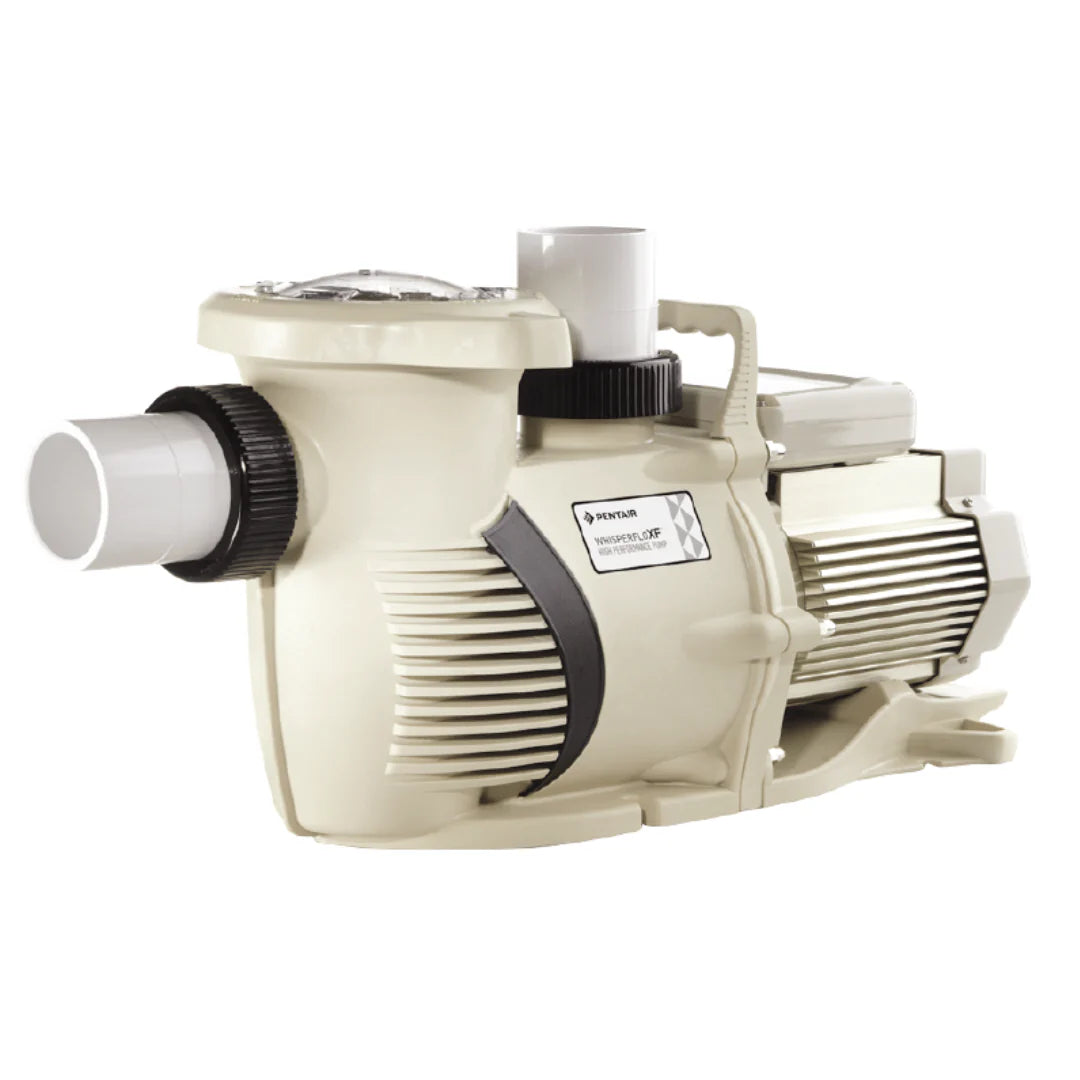

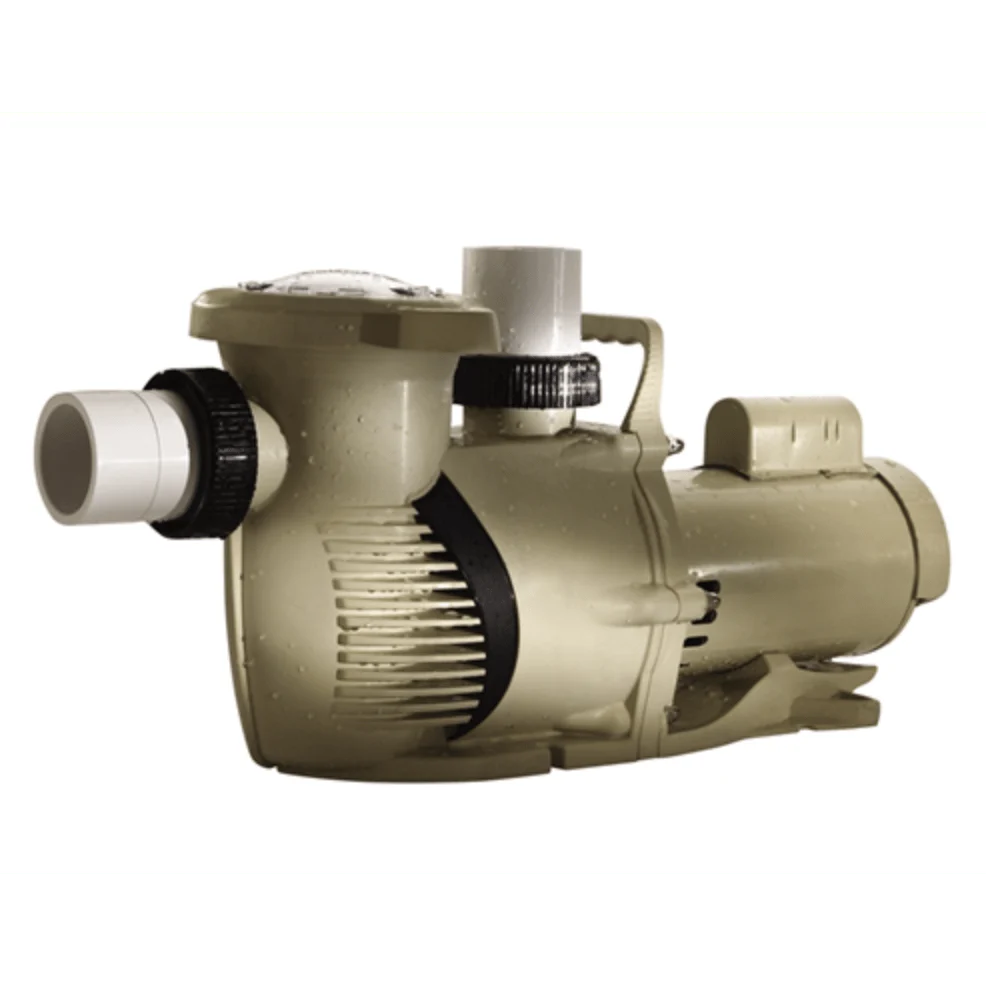

Pentair WhisperFloXF® High Performance Pump 5 HP 208-230V
The Pentair WhisperFloXF® 5 HP High Performance Pump 208-230V (022034) is an outstanding choice for demanding commercial applications requiring energy efficiency, quiet operation, and dependability. Redesigned hydraulics deliver smoother flow, greater efficiency, faster priming, and quieter operation. Built with a durable one-piece composite resin housing and dual-compartment motor for simplified field wiring. Union connectors for 2.5" or 3" plumbing included. 190 GPM max flow.
Note: This pump carries a 60-day manufacturer warranty.
Key Features
Hydraulic Isolator
Separates priming water from pumping water for faster priming, more turbulent-free flow, and increased efficiency.
5 HP / 190 GPM
High-power single-speed for demanding commercial pool and spa applications.
2.5" or 3" Union Connectors Included
Direct connection to large-diameter commercial plumbing — unions included in the box.
Dual-Compartment Motor
Simplified field wiring for professional installation.
EPDM Diamond Seals
Oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal.
Drop-In WhisperFloXF Replacement
Direct drop-in replacement for all WhisperFloXF pump models. Three-phase XF models compatible with Pentair Acu Drive XS VFDs.
Specifications
| Horsepower | 5 HP |
| Max Flow Rate | 190 GPM |
| Motor Speed | Single Speed |
| Phase | Single |
| Voltage | 208V / 230V |
| Amperage (High Speed) | 20 A |
| Plumbing | 2.5 in or 3 in (Union Connectors Included) |
| Housing | One-Piece Composite Resin |
| Product Weight | 67 lb |
| Shipping Dimensions | 30 × 13 × 16 in |
| Warranty | 60 Days |
What's in the Box
- Pentair WhisperFloXF 5 HP Pump (022034)
- 2.5" and 3" Union Connectors
- User Manual
Warranty
The Pentair WhisperFloXF 022034 comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
