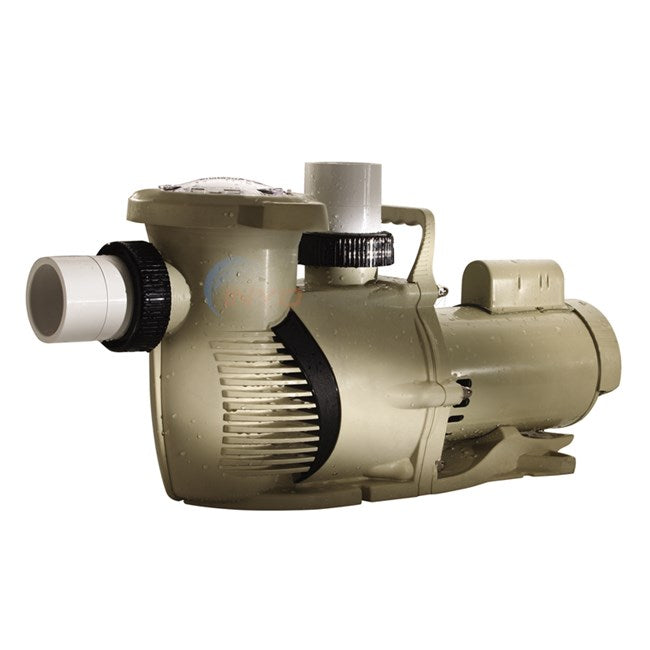

Pentair WhisperFloXF® High Performance Pump 3 HP 3-Phase 208-230/460V
The Pentair WhisperFloXF® 3 HP 3-Phase High Performance Pump 208-230/460V (022018) delivers CFD and FEA-engineered hydraulic performance at 3 HP — the mid-range WhisperFloXF for commercial pools, water features, negative edges, and slides requiring up to 220 GPM. Proprietary impeller design with precision concentricity, hydraulic isolator for turbulence-free flow, EPDM diamond seals, and 2.5"/3" union connectors included. Drop-in for original WhisperFlo® and optional Challenger® replacement. CSA certified.
Note: 3-phase pump. 60-day manufacturer warranty.
Key Features
CFD/FEA-Engineered Impeller
Precision concentricity impeller — the most efficient WhisperFlo design ever produced.
3 HP / 220 GPM / 3-Phase
Mid-range WhisperFloXF — 220 GPM for commercial pools, water features, and high-flow residential applications.
Hydraulic Isolator
Separates priming water from pumping water for faster priming and turbulence-free, highly efficient flow.
2.5" or 3" Union Connectors Included
Direct connection to large commercial plumbing — tool-free union nuts, external port threading.
Drop-In WhisperFlo / Challenger® Replacement
Drop-in for original WhisperFlo®; optional riser plate for Challenger® replacement.
EPDM Diamond Seals / TEFC Motor
Oxidation-resistant self-retaining seals, dual-compartment TEFC motor for simplified field wiring.
Specifications
| Horsepower | 3 HP |
| Service Factor HP | 3.45 SF HP |
| Max Flow Rate | 220 GPM |
| Motor Speed | Single Speed |
| Motor Type | TEFC (Dual-Compartment) |
| Phase | Three Phase |
| Voltage | 208V / 230V / 460V |
| Amperage (High/Low) | 9.8 A / 4.7 A |
| Plumbing | 2.5 in or 3 in (Union Connectors Included) |
| Product Weight | 60 lb |
| Shipping Dimensions | 28.5 × 14.5 × 18 in |
| Certifications | CSA Certified |
| Warranty | 60 Days |
What's in the Box
- Pentair WhisperFloXF 3 HP 3-Phase Pump (022018)
- 2.5" and 3" Union Connectors
- User Manual
Warranty
The Pentair WhisperFloXF 022018 comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
