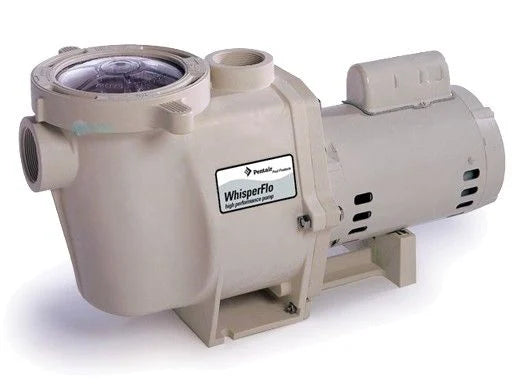

Pentair WhisperFlo® High Performance Pump 1.5 HP 208-230/460V 3-Phase
The Pentair WhisperFlo® 1.5 HP TEFC Super-Duty High Performance Pump 3-Phase 208-230/460V (011642) is a heavy-duty commercial pool and spa pump on the proven WhisperFlo platform. Robust thermoplastic with Cam & Ramp™ see-through lid for durability and easy servicing. Commercial-duty 56-frame TEFC motor with threaded shaft and NEMA-rated square flange for long life. CSA certified.
Note: 3-phase pump. 60-day manufacturer warranty.
Key Features
Commercial-Duty 56-Frame NEMA TEFC Motor
Threaded shaft, NEMA-rated square flange, TEFC — engineered for long service life in demanding commercial pool environments.
1.5 HP 3-Phase / 208-230/460V
3-phase efficiency at 1.5 HP — lower amperage draw than single-phase equivalents.
Cam & Ramp™ See-Through Lid
Oversized strainer basket — quick basket inspection and easy servicing without tools.
Universal Compatibility
Compatible with all cleaning systems, various filters, and jet action spas.
Specifications
| Horsepower | 1.5 HP |
| Service Factor HP | 2.21 SF HP |
| Motor Speed | Single Speed |
| Motor Type | TEFC, 56-Frame NEMA Square Flange |
| Phase | Three Phase |
| Voltage | 208V / 230V / 460V |
| Amperage (High/Low) | 6.4 A / 2.3 A |
| Product Weight | 43.39 lb |
| Shipping Dimensions | 28.35 × 12.62 × 15 in |
| Certifications | CSA Certified |
| Warranty | 60 Days |
What's in the Box
- Pentair WhisperFlo 1.5 HP 3-Phase TEFC Pump (011642)
- User Manual
Warranty
The Pentair WhisperFlo 011642 comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
