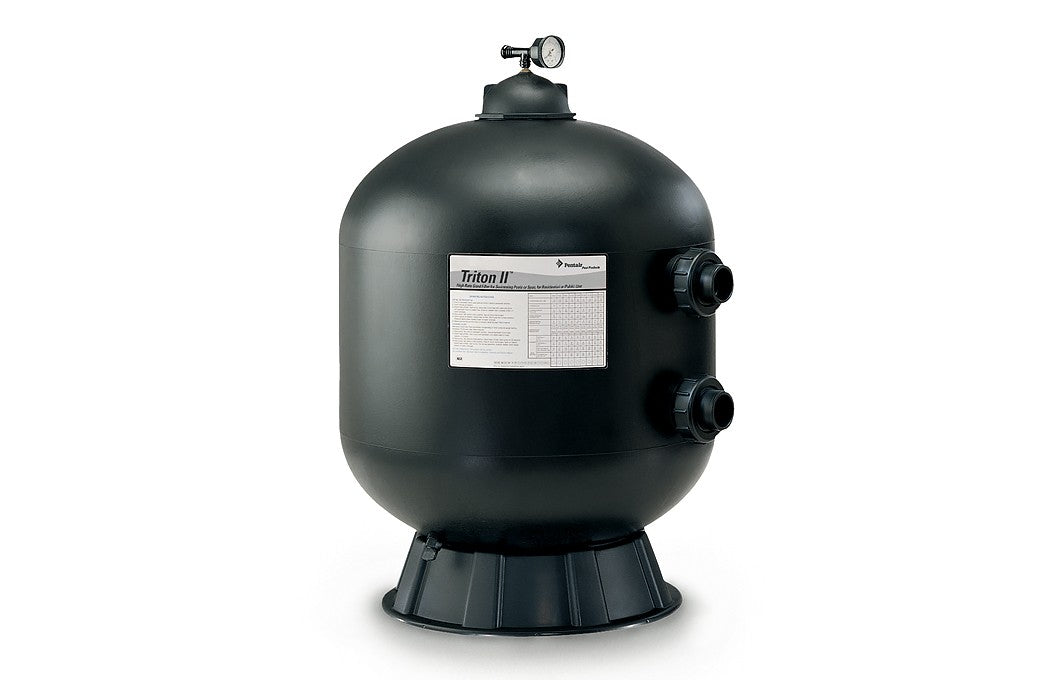

Pentair Triton® II 30" Heavy-Duty Fiberglass Side Mount Sand Filter TR100HD Black
The Pentair Triton® II TR100HD 30" Heavy-Duty Fiberglass Side Mount Sand Filter in Black delivers the same proven Triton II fiberglass performance with a critical upgrade: a maximum operating pressure of 75 PSI — 50% higher than the standard Triton II. This makes it the required choice for high-pressure installations such as single-pump in-floor cleaning systems, where standard 50 PSI filters are insufficient. 4.91 sq ft, 74 GPM, NSF/ANSI Standard 50 certified. No valve included.
One-piece UV-resistant fiberglass-reinforced tank in black, combination sand/water drain, heavy-duty closure with pressure gauge and air relief valve, internal air bleed. Requires 450 lb of sand and 150 lb of pea gravel (not included). Backed by a 2-year warranty.
Note: No valve included. Unions not included. Filter sand (450 lb) and pea gravel (150 lb) not included. Professional installation required.
Key Features
75 PSI Maximum Operating Pressure
50% higher pressure rating than the standard Triton II — required for single-pump in-floor cleaning systems and other high-pressure applications where standard 50 PSI tanks cannot be used.
30" Black Fiberglass Tank
UV-resistant Glas®Lok fiberglass construction in black — same proven Triton II tank quality in a high-pressure rated body.
74 GPM / 4.91 Sq Ft
Same flow performance as the standard TR100 — now rated for the elevated system pressures of in-floor cleaning.
NSF/ANSI Standard 50 Certified
Certified commercial performance with Pentair's 2-year warranty.
Who It's For
- In-floor cleaning system installations using a single pump — the TR100HD is specifically designed for these high-pressure applications
- Commercial and residential pools where system operating pressure exceeds standard 50 PSI filter ratings
- Pool professionals who specify the Triton II HD for any high-pressure pool system
Specifications
Performance
| Filtration Area | 4.91 sq ft |
| Max Flow Rate | 74 GPM |
| Max Operating Pressure | 75 PSI |
Filter Media
| Sand Required | 450 lb (not included) |
| Pea Gravel Required | 150 lb (not included) |
Tank
| Tank Material | Fiberglass-Reinforced |
| Tank Diameter | 30 in |
| Tank Color | Black |
| Mount Style | Side Mount (No Valve) |
Physical
| Product Weight | 65 lb |
| Shipping Dimensions | 31.5 × 31.5 × 37.5 in |
Approvals & Warranty
| Certifications | NSF/ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair Triton II TR100HD 30" Sand Filter Tank — Black
- User Manual
Note: No valve included. Unions not included. Filter sand (450 lb) and pea gravel (150 lb) not included.
Warranty
The Pentair Triton II TR100HD comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What's the difference between the TR100HD and the standard TR100 (Triton II 30")?
The TR100HD is rated to 75 PSI operating pressure vs. 50 PSI for the standard TR100. Both have the same 4.91 sq ft filtration area and 74 GPM flow rate. The HD is specifically designed for high-pressure applications like single-pump in-floor cleaning systems. If your system operates at or near 50 PSI, the standard TR100 is appropriate. If you're running a single-pump in-floor system or any high-pressure configuration, spec the TR100HD.
