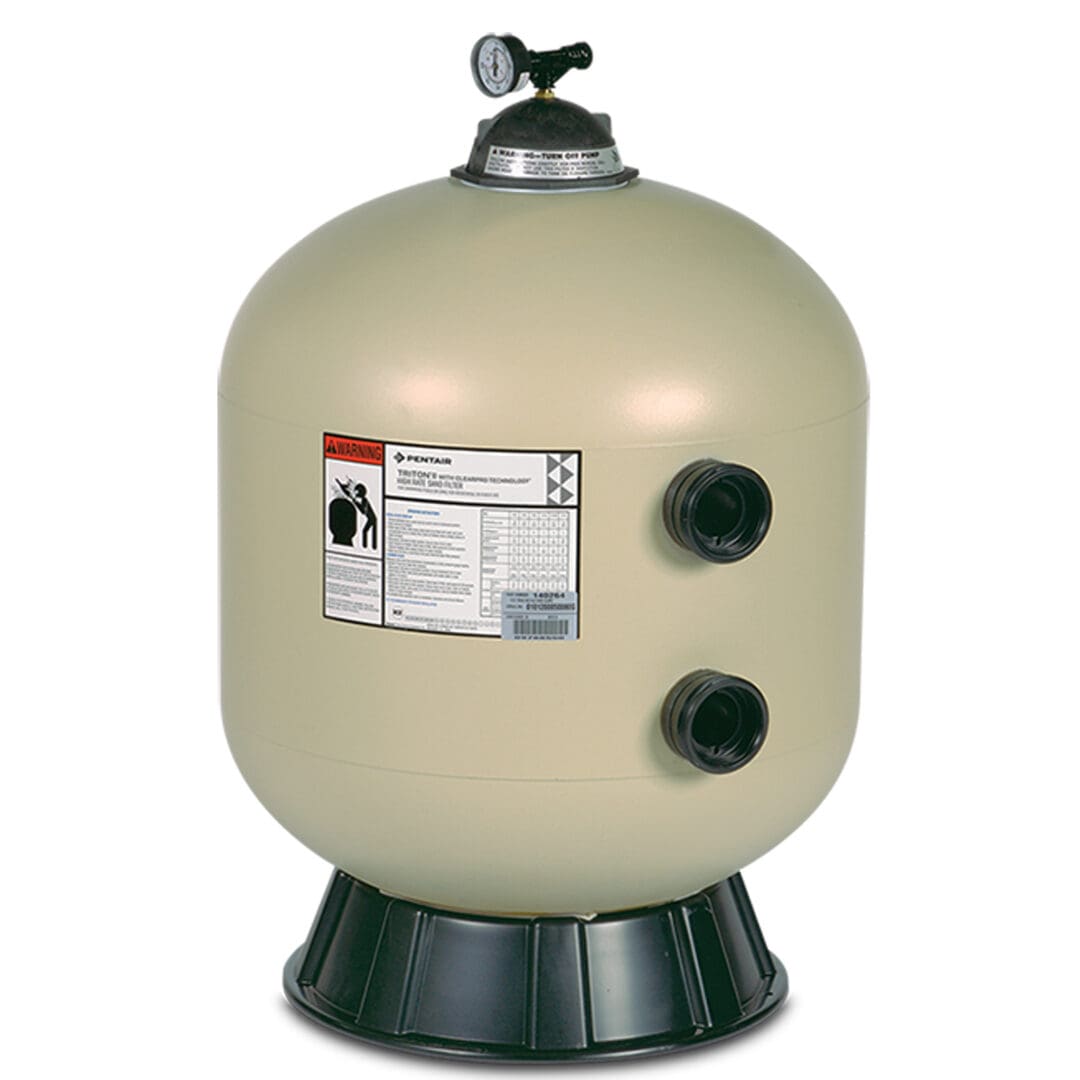

Pentair Triton® II 36" Side Mount Sand Filter TR140 Almond
The Pentair Triton® II 36" Side Mount Sand Filter (TR140) is the largest residential Triton II — the original and still the industry standard in fiberglass sand filtration. Pentair's unique manufacturing process creates a one-piece fiberglass-reinforced tank with UV-resistant surface finish for years of unequalled strength and durability — fiberglass locked in to prevent fiber "blooming" under harsh conditions.
Features include a swing-away diffuser for instant sand access, fully threaded internal parts, internal air bleed, and combination sand/water drain for fast winterization. The 36-inch tank requires 650 lb of sand and 275 lb of pea gravel (not included). ANSI Standard 50 certified. Backed by a 2-year warranty.
Note: Filter sand (650 lb) and pea gravel (275 lb) are not included and must be sourced separately.
Key Features
36" Fiberglass-Reinforced Tank
Largest residential Triton II — 7.06 sq ft of filtration area for larger pools or installations where maximum sand filter capacity is preferred.
Swing-Away Diffuser
Swings out of the way for instant, unobstructed access to the sand bed and all internal parts during service.
Fully Threaded Internals
All internal parts are threaded for ease of service and replacement — no special tools required.
Heavy-Duty Closure with Pressure Gauge
Easy inspection access with built-in air relief valve and easy-to-read pressure gauge.
Internal Air Bleed
Built-in internal air bleed for system priming and air management.
Combination Sand and Water Drain
Single drain for both sand removal and complete water drain-down — fast winterizing and sand changes.
Threaded Bulkhead Connectors
Threaded connections for easy plumbing installation and service without specialty fittings.
ANSI Standard 50 Certified / 2-Year Warranty
Certified performance and Pentair's 2-year residential warranty.
Who It's For
- Residential pool owners with larger pools who want maximum Triton II sand filter capacity
- Pools where the 30-inch TR100 is undersized and the 36-inch tank is the right specification
- Anyone who wants the swing-away diffuser's service-friendly design in the largest residential Triton II
- New builds and replacements specifying 7.06 sq ft of sand filtration area
Specifications
Performance
| Filtration Area | 7.06 sq ft |
| Filter Type | Side Mount Sand |
Filter Media
| Sand Required | 650 lb (not included) |
| Pea Gravel Required | 275 lb (not included) |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced |
| Tank Diameter | 36 in |
| Tank Color | Almond |
| Connections | Threaded Bulkhead |
| Mount Style | Side Mount |
Physical
| Product Weight | 75 lb |
| Shipping Dimensions | 39.5 × 39.5 × 41.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair Triton II 36" Sand Filter Tank (TR140)
- User Manual
Note: Filter sand (650 lb), pea gravel (275 lb), and multiport/backwash valve are not included and must be purchased separately.
Warranty
The Pentair Triton II TR140 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the TR140 (36") compare to the TR100 (30")?
Both are Pentair Triton II residential side-mount fiberglass sand filters with identical service features and 2-year warranties. The TR140 is the larger 36-inch model with 7.06 sq ft of filtration area and requires 650 lb of sand + 275 lb of pea gravel. The TR100 is the 30-inch model with 4.91 sq ft needing 450 lb sand + 150 lb gravel. Choose the TR140 for larger pools or when maximum residential sand filter capacity is preferred.
What is the difference between the residential TR140 and the commercial Triton C TR140C?
Both are 36-inch Pentair Triton sand filters with the same 7.06 sq ft area and 650 lb sand requirement. The TR140 is the residential model with threaded bulkhead plumbing connections. The TR140C is the commercial model using 3-inch flange connections and a multi-diffuser system rated up to 20 GPM per sq ft. The TR140 is designed for residential installations with standard threaded plumbing.
Is a multiport valve included?
No. The TR140 is the filter tank only. A compatible side-mount multiport valve must be purchased separately. Pentair offers compatible side-mount valves for the Triton II series.
