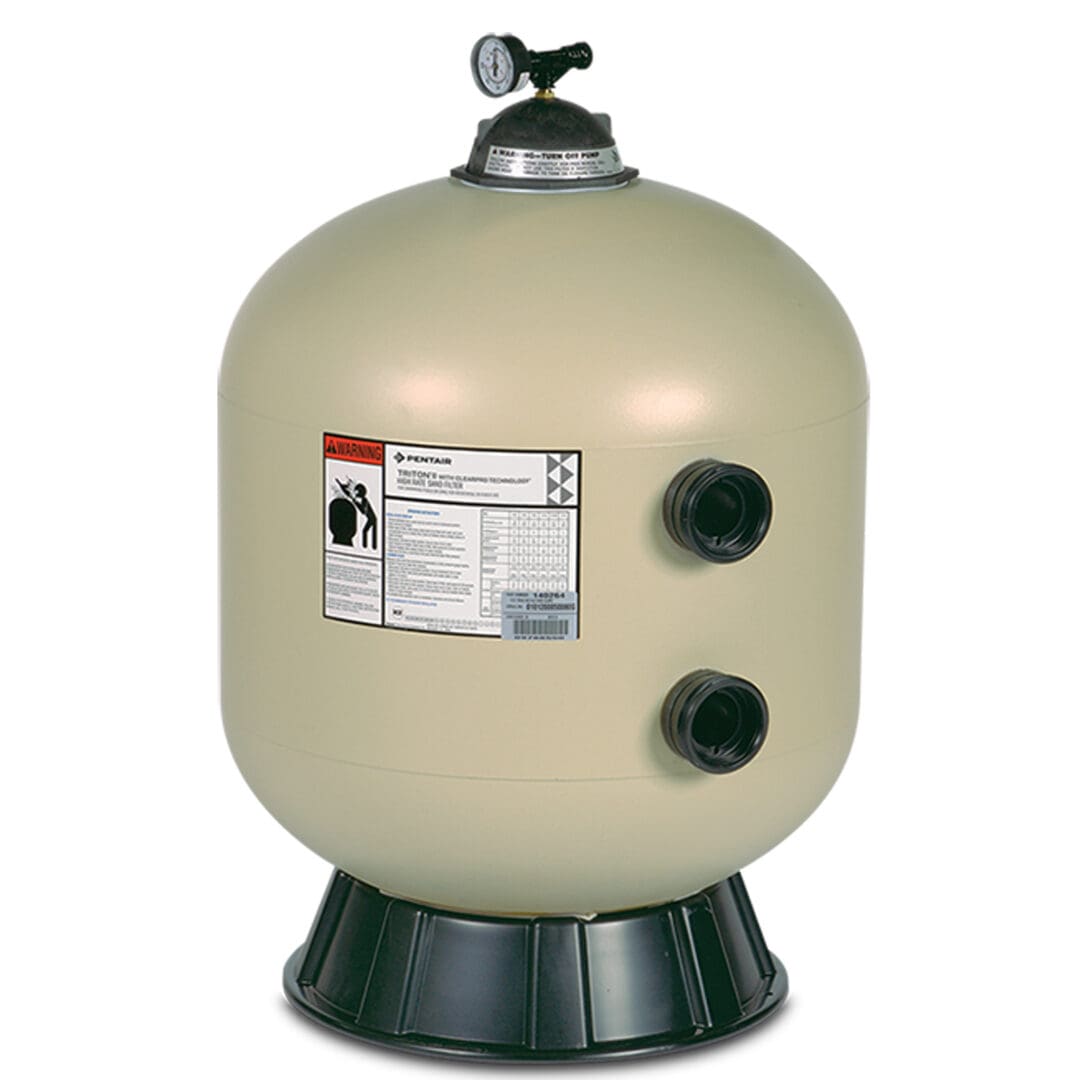

Pentair Triton® II 30" Side Mount Sand Filter TR100 Almond
The Pentair Triton® II 30" Side Mount Sand Filter (TR100) is the original and still the industry standard in residential sand filtration. Pentair's unique process creates a one-piece fiberglass-reinforced tank with UV-resistant surface finish for years of unequalled strength and durability — fiberglass locked in to prevent fiber "blooming" under harsh conditions.
The Triton II is the residential counterpart to the commercial Triton C, featuring a swing-away diffuser for instant sand access, fully threaded internals for easy service, internal air bleed, and combination sand/water drain for fast winterization. Requires 450 lb of sand and 150 lb of pea gravel (not included). ANSI Standard 50 certified. Backed by a 1-year warranty.
Note: Filter sand (450 lb) and pea gravel (150 lb) are not included and must be sourced separately.
Key Features
30" Fiberglass-Reinforced Tank
One-piece Glas®Lok-style construction — UV-resistant surface finish and fiberglass locked in to prevent blooming.
Swing-Away Diffuser
Swings out of the way for instant, unobstructed access to the sand bed and all internal parts during service.
Fully Threaded Internals
All internal parts are threaded for ease of service and replacement — no special tools required.
Heavy-Duty Closure with Pressure Gauge
Easy inspection access with built-in air relief valve and easy-to-read pressure gauge.
Internal Air Bleed
Built-in internal air bleed for system priming and air management.
Combination Sand and Water Drain
Single drain serves both sand removal and water drain-down — makes winterizing fast and easy.
Threaded Bulkhead Connectors
Threaded connections for easy plumbing installation and service without specialty fittings.
ANSI Standard 50 Certified
Certified to ANSI Standard 50 for pool filtration equipment.
Who It's For
- Residential pool owners who want the proven Triton platform in a residential sand filter
- Anyone who wants a fiberglass sand filter with easy swing-away diffuser access for DIY-friendly service
- Pools where threaded plumbing connections are preferred over commercial flange fittings
- New builds and upgrades requiring the Pentair Triton II at the 30-inch residential size
Specifications
Performance
| Filtration Area | 4.91 sq ft |
| Filter Type | Side Mount Sand |
Filter Media
| Sand Required | 450 lb (not included) |
| Pea Gravel Required | 150 lb (not included) |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced |
| Tank Diameter | 30 in |
| Tank Color | Almond |
| Connections | Threaded Bulkhead |
| Mount Style | Side Mount |
Physical
| Product Weight | 65 lb |
| Shipping Dimensions | 31.5 × 31.5 × 37.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 1 Year |
What's in the Box
- Pentair Triton II 30" Sand Filter Tank (TR100)
- User Manual
Note: Filter sand (450 lb), pea gravel (150 lb), and multiport/backwash valve are not included and must be purchased separately.
Warranty
The Pentair Triton II TR100 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the Triton II (TR100) and the Triton C (TR100C)?
Both are 30-inch Pentair Triton fiberglass sand filters with the same 4.91 sq ft filtration area and 450 lb sand requirement. The Triton II (TR100) is the residential model — it uses threaded bulkhead plumbing connections and a swing-away diffuser for easy sand access. The Triton C (TR100C) is the commercial model — it uses 3-inch flange connections and a multi-diffuser system rated up to 20 GPM per sq ft, plus carries a 2-year warranty vs. 1 year for the Triton II. Choose the Triton II for residential installations with standard threaded plumbing.
Is filter sand included?
No. The TR100 requires 450 lb of #20 silica sand and 150 lb of pea gravel, neither of which are included. These must be sourced locally. The pea gravel forms the bottom support layer, followed by the filter sand.
Is a multiport valve included?
No. The TR100 is the filter tank only. A compatible side-mount multiport valve must be purchased and installed separately. Pentair offers compatible valves for this tank.
