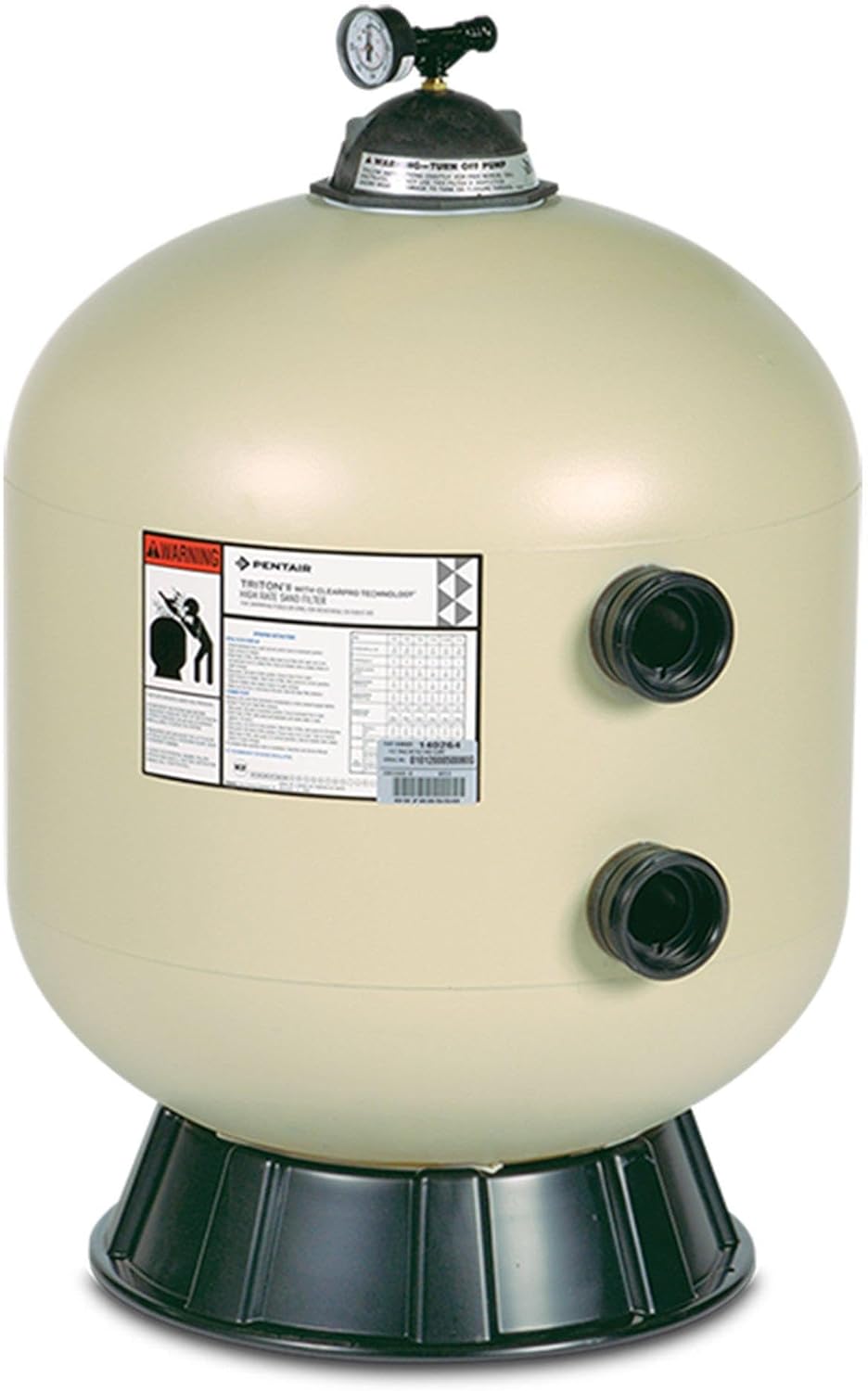

Pentair Triton® II 24" Side Mount Sand Filter TR60 Almond
The Pentair Triton® II 24" Side Mount Sand Filter (TR60) is the compact residential entry in the Triton II lineup — the original and still the industry standard in fiberglass sand filtration. Pentair's unique manufacturing process creates a one-piece fiberglass-reinforced tank with UV-resistant surface finish for years of unequalled strength and durability.
Features include a swing-away diffuser for instant sand access, fully threaded internal parts, internal air bleed, and combination sand/water drain for fast winterization. Requires 250 lb of sand and 75 lb of pea gravel (not included). ANSI Standard 50 certified. Backed by a 2-year warranty.
Note: Filter sand (250 lb) and pea gravel (75 lb) are not included and must be sourced separately.
Key Features
24" Fiberglass-Reinforced Tank
Compact 24-inch residential Triton II — 3.14 sq ft filtration area for smaller pools and spas.
Swing-Away Diffuser
Swings out of the way for instant, unobstructed access to the sand bed and all internal components during service.
Fully Threaded Internals
All internal parts are threaded for ease of service and replacement — no special tools required.
Heavy-Duty Closure with Pressure Gauge
Easy inspection access with built-in air relief valve and easy-to-read pressure gauge.
Internal Air Bleed
Built-in internal air bleed for system priming and air management.
Combination Sand and Water Drain
Single drain for both sand removal and water drain-down — makes winterizing fast and easy.
Threaded Bulkhead Connectors
Threaded connections for straightforward plumbing installation and service.
ANSI Standard 50 Certified / 2-Year Warranty
Certified performance and Pentair's 2-year residential warranty.
Who It's For
- Residential pool owners with smaller pools who want the proven Triton II sand filter in the compact 24-inch size
- Above-ground pool installations and smaller in-ground pools where a 30-inch tank would be oversized
- Anyone who wants the swing-away diffuser's DIY-friendly service access
- New builds and replacements on pools sized for the TR60's 3.14 sq ft filtration area
Specifications
Performance
| Filtration Area | 3.14 sq ft |
| Filter Type | Side Mount Sand |
Filter Media
| Sand Required | 250 lb (not included) |
| Pea Gravel Required | 75 lb (not included) |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced |
| Tank Diameter | 24 in |
| Tank Color | Almond |
| Connections | Threaded Bulkhead |
| Mount Style | Side Mount |
Physical
| Product Weight | 44 lb |
| Shipping Dimensions | 24.5 × 24.5 × 31.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box

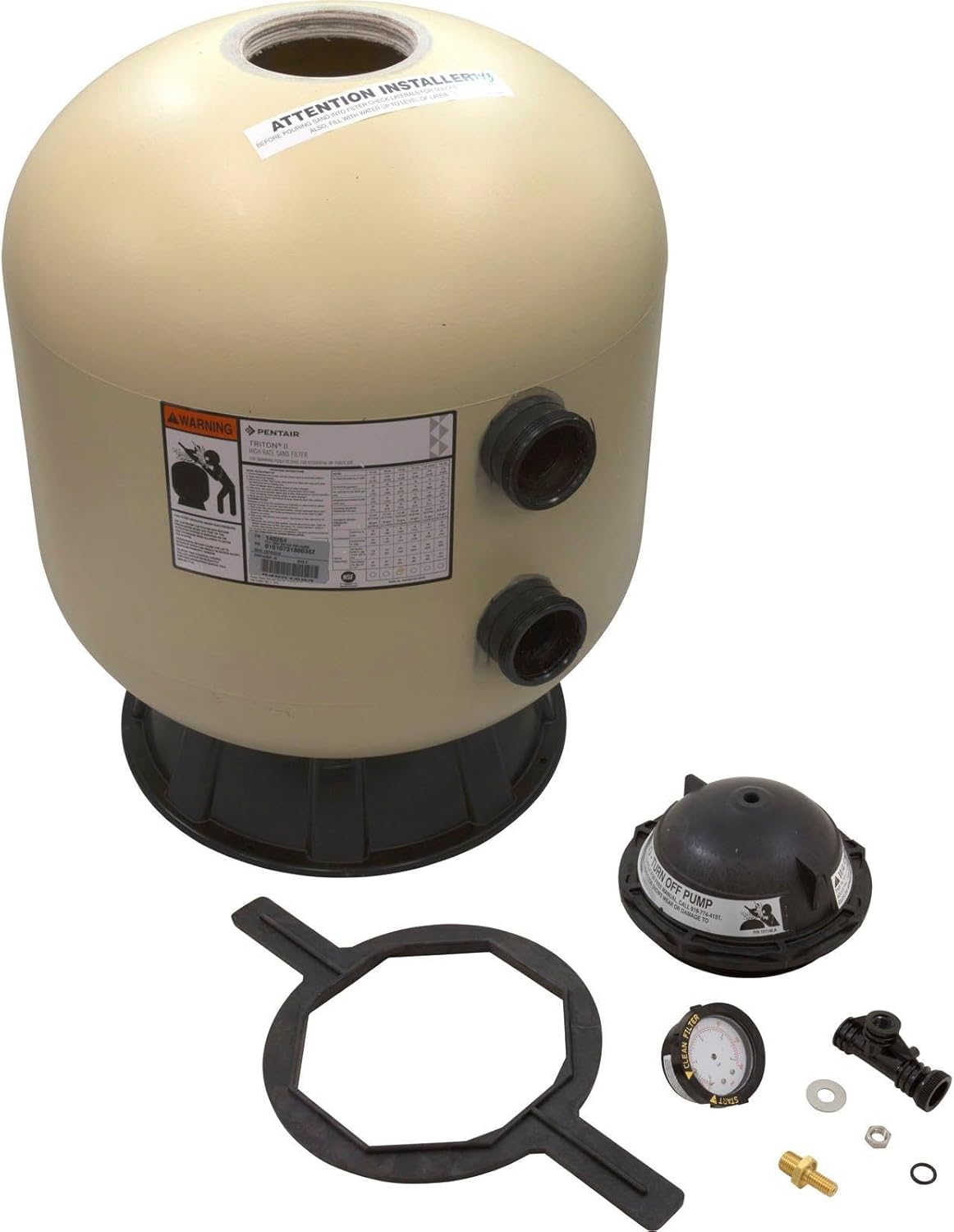

- Pentair Triton II 24" Sand Filter Tank (TR60)
- User Manual
Note: Filter sand (250 lb), pea gravel (75 lb), and multiport/backwash valve are not included and must be purchased separately.
Warranty
The Pentair Triton II TR60 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
- Install Guide Alt (PDF)
- Install Guide (PDF)
- Operating Manual (PDF)
- Technical Manual Alt (PDF)
- Technical Manual (PDF)
Frequently Asked Questions
How does the TR60 (24") compare to the TR100 (30")?
Both are Pentair Triton II side mount fiberglass sand filters with identical features and 2-year warranties. The TR60 is the smaller 24-inch model with 3.14 sq ft of filtration area and requires 250 lb of sand + 75 lb of pea gravel — suitable for smaller pools. The TR100 is the 30-inch model with 4.91 sq ft and requires 450 lb of sand + 150 lb of pea gravel. Choose the TR60 for smaller pools where the TR100 would be oversized.
Is a multiport valve included?
No. The TR60 is the filter tank only. A compatible side-mount multiport valve must be purchased separately. Pentair offers compatible valves for the Triton II series.
Is filter sand included?
No. The TR60 requires 250 lb of #20 silica sand and 75 lb of pea gravel, neither of which are included. Pea gravel goes in first as the bottom support layer, followed by the filter sand.
