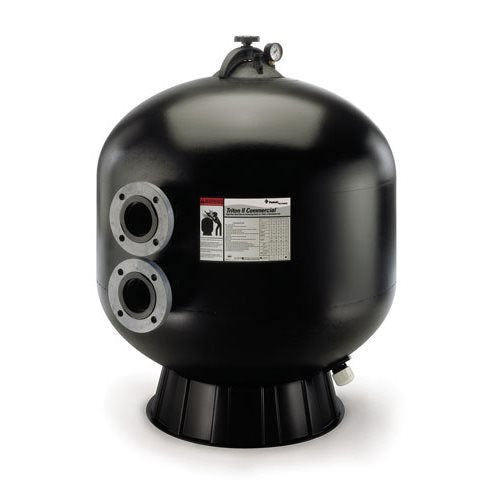

Pentair Triton® C-3 36" High Capacity Fiberglass Side Mount Sand Filter TR140C-3 Black
The Pentair Triton® C-3 36" High Capacity Fiberglass Side Mount Sand Filter (TR140C-3) is the black-finish version of the industry-standard Triton C commercial sand filter — same proven Glas®Lok fiberglass construction, multi-diffuser system, 3-inch flange connections, and 7.06 sq ft capacity as the TR140C, in a black tank color.
Patented Glas®Lok one-piece fiberglass-reinforced tank with UV-resistant surface finish, multi-diffuser for up to 20 GPM per sq ft, standard 3-inch flange connections, 8-inch sand access opening, and full 2-inch drain. Requires 650 lb of sand and 275 lb of pea gravel (not included). ANSI Standard 50 certified. Backed by a 2-year warranty.
Note: Filter sand (650 lb), pea gravel (275 lb), and backwash valve are not included. Professional installation required.
Key Features
Black Tank Color
Black finish for applications where the black Triton C-3 color is specified or preferred.
36" Glas®Lok Fiberglass Tank
7.06 sq ft commercial filtration area — same construction as the Almond TR140C.
Multi-Diffuser System
Multiple diverters for commercial flow rates up to 20 GPM per sq ft.
3" Flange Connections
Standard 3-inch flange connections for commercial high-flow plumbing.
8" Sand Access / Full 2" Drain
Wide 8-inch opening for easy sand bed access and full 2-inch drain port.
50 PSI / ANSI 50 / 2-Year Warranty
Certified commercial performance with Pentair's 2-year warranty.
Who It's For
- Commercial pool operators who specify the Triton C-3 in black
- Installations where black equipment aesthetics are specified or preferred
- Same commercial applications as the TR140C — aquatic facilities, hotels, community pools
Specifications
Performance
| Filtration Area | 7.06 sq ft |
| Max Flow Rate | Up to 20 GPM/sq ft (commercial) |
| Max Operating Pressure | 50 PSI |
Filter Media
| Sand Required | 650 lb (not included) |
| Pea Gravel Required | 275 lb (not included) |
Tank & Plumbing
| Tank Material | Glas®Lok Fiberglass-Reinforced |
| Tank Diameter | 36 in |
| Tank Color | Black |
| Connections | 3 in Flange (Standard) |
| Drain | Full 2 in |
| Sand Access Opening | 8 in |
| Mount Style | Side Mount |
Physical
| Product Weight | 82 lb |
| Shipping Dimensions | 39.5 × 39.5 × 41.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair Triton C-3 36" Sand Filter Tank (TR140C-3) — Black
- User Manual
Note: Filter sand (650 lb), pea gravel (275 lb), and multiport/backwash valve are not included. Professional installation required.
Warranty
The Pentair Triton C-3 TR140C-3 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the TR140C-3 (Black) and the TR140C (Almond)?
The TR140C-3 and TR140C are identical in all performance specifications — both are 36-inch Triton C commercial sand filters with 7.06 sq ft of area, 3-inch flange connections, multi-diffuser, and 2-year warranty. The only difference is tank color: TR140C-3 is Black, TR140C is Almond. Choose based on your installation's aesthetic requirements or specification.
