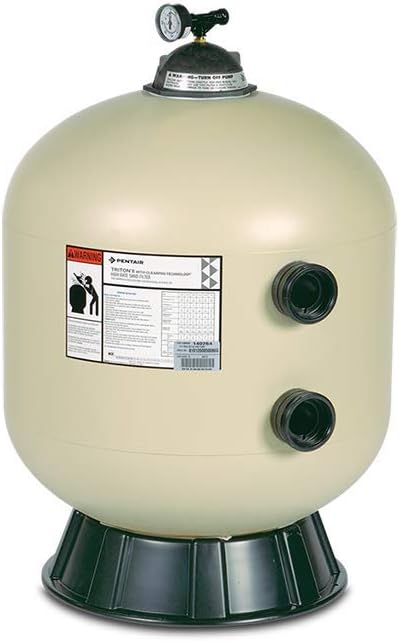

Pentair Triton® C 30" High Capacity Fiberglass Side Mount Sand Filter TR100C Almond
The Pentair Triton® C 30" High Capacity Fiberglass Side Mount Sand Filter (TR100C) is the original and still the industry standard in commercial sand filtration. The patented Glas®Lok process creates a one-piece fiberglass-reinforced tank with UV-resistant surface finish for unequalled strength and durability — fiberglass locked in to prevent fiber "blooming" under harsh conditions.
The Triton C series features a multi-diffuser system that increases filtration and flow rates for commercial applications up to 20 GPM per sq ft. The TR100C uses standard 3-inch flange connections, an 8-inch opening for easy sand bed access, full 2-inch drain, and 50 PSI maximum operating pressure. ANSI Standard 50 certified. Backed by a 2-year warranty.
Note: Filter sand (450 lb) and pea gravel (150 lb) are not included and must be sourced separately.
Key Features
Glas®Lok Fiberglass Tank
Patented one-piece construction — UV-resistant surface finish, fiberglass locked in to prevent blooming under harsh commercial conditions.
Multi-Diffuser System
Multiple diverters increase filtration and flow rates for commercial applications — rated up to 20 GPM per sq ft.
30" Tank Diameter
4.91 sq ft filtration area in a 30-inch diameter tank — high-capacity commercial sizing.
Standard 3" Flange Connections
3-inch flange connections for commercial plumbing compatibility.
8" Sand Bed Access Opening
Wide opening for easy access during sand changes and annual maintenance.
Full 2" Drain
Full 2-inch drain port for complete tank drainage during backwash, winterization, or sand changes.
50 PSI Maximum Operating Pressure
Rated for commercial high-flow systems.
ANSI Standard 50 Certified / 2-Year Warranty
Certified commercial filtration standard and 2-year manufacturer warranty.
Who It's For
- Commercial pool operators who need high-capacity sand filtration with commercial-grade flange connections
- Aquatic facilities, hotels, and community pools specifying the industry-standard Triton C platform
- Installations requiring 3-inch flange plumbing and up to 20 GPM/sq ft flow capacity
- Any commercial application where the Triton C's proven durability and Glas®Lok construction are required
Specifications
Performance
| Filtration Area | 4.91 sq ft |
| Max Flow Rate | Up to 20 GPM/sq ft (commercial) |
| Max Operating Pressure | 50 PSI |
Filter Media
| Sand Required | 450 lb (not included) |
| Pea Gravel Required | 150 lb (not included) |
Tank & Plumbing
| Tank Material | Glas®Lok Fiberglass-Reinforced |
| Tank Diameter | 30 in |
| Tank Color | Almond |
| Connections | 3 in Flange (Standard) |
| Drain | Full 2 in |
| Sand Access Opening | 8 in |
| Mount Style | Side Mount |
Physical
| Product Weight | 70 lb |
| Shipping Dimensions | 31.5 × 31.5 × 37 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair Triton C 30" Sand Filter Tank (TR100C)
- User Manual
Note: Filter sand (450 lb), pea gravel (150 lb), and multiport/backwash valve are not included and must be purchased separately.
Warranty
The Pentair Triton C TR100C comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the Glas®Lok process?
Glas®Lok is Pentair's patented manufacturing process for the Triton tank. It creates a one-piece fiberglass-reinforced tank where the fiberglass is permanently locked into the resin matrix — preventing fibers from "blooming" or protruding through the surface under UV exposure, chemical contact, or pressure cycling. The result is a tank that maintains its structural integrity and surface finish over decades of commercial use.
Is filter sand included?
No. The TR100C requires 450 lb of #20 silica sand and 150 lb of pea gravel, neither of which are included. These must be sourced locally. The pea gravel goes in first as the bottom layer, followed by the filter sand. Follow the installation guide for the correct layering sequence.
Is a multiport valve included?
No. The TR100C is the filter tank only. A compatible Pentair or third-party 3-inch flange multiport valve must be purchased and installed separately. Your pool professional can advise on the appropriate valve for this tank.
How often does the sand need to be replaced?
Filter sand typically lasts 5–7 years in commercial applications before it becomes too worn to filter effectively. The 8-inch access opening on the Triton C makes sand changes more manageable than tanks with smaller openings.
