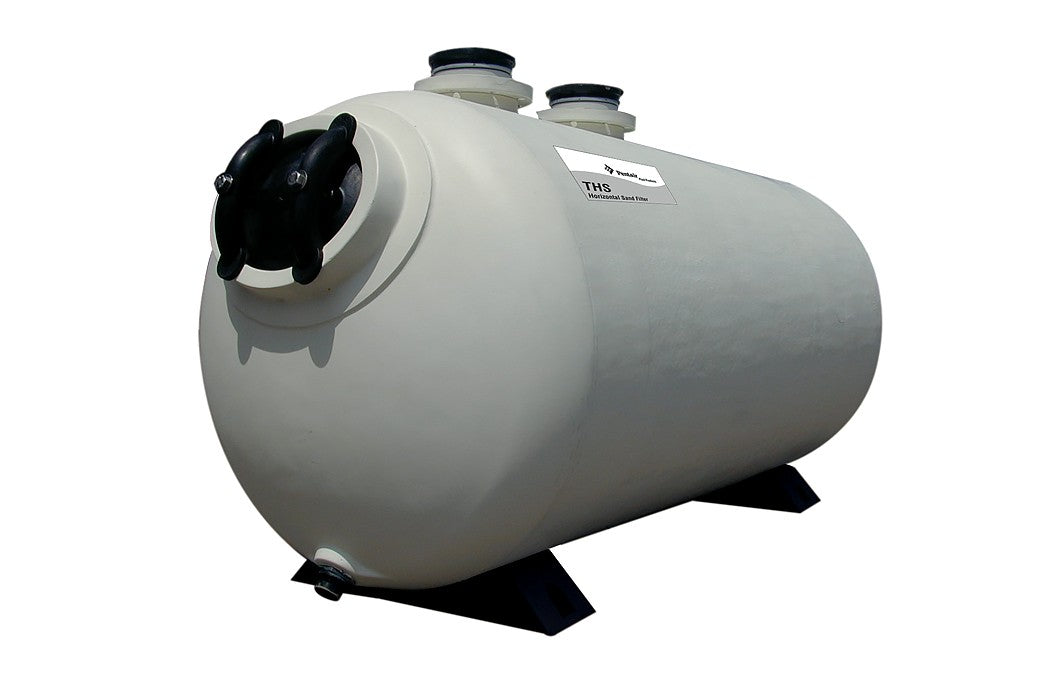

Pentair THS Series 42" × 96" Horizontal Sand Filter
The Pentair THS Series 42" × 96" Horizontal Sand Filter is a large-format commercial sand filter rated for flow rates up to 535 GPM at 50 PSI — engineered for aquatic facilities, commercial pools, water parks, and large-volume installations. The horizontal tank design provides a compact footprint with front-access manway for maintenance in space-constrained equipment rooms.
Built with a composite laminate shell using Paracote water-based coating for remarkable surface protection. Features 6-inch flanged connections, influent manifold distribution to prevent clogging, and NSF approval for 5–20 GPM per sq ft. Optional manual, semi-automatic, and automatic backwash systems available for single and dual-tank configurations. Requires 2,800 lb of sand and 700 lb of pea gravel (not included). ANSI Standard 50 certified. Backed by a 2-year warranty.
Note: Filter sand (2,800 lb), pea gravel (700 lb), and backwash valve/system are not included and must be specified separately. This is a commercial product — professional installation is required.
Key Features
Up to 535 GPM
Rated for flow rates up to 535 GPM at 50 PSI — suited for large commercial aquatic installations.
Horizontal Tank — Compact Footprint
Horizontal design reduces ceiling height requirements and equipment room footprint compared to vertical tanks of equivalent capacity.
Front-Access Manway
Manway in front for easy access without requiring clearance above the tank. Optional manway with viewport available.
6" Flanged Connections
Standard 6-inch flanged connections for commercial high-flow plumbing systems.
Influent Manifold Distribution
Engineered manifold distributes water across the full sand bed to prevent clogging and maintain uniform flow.
Optional Backwash Systems
Manual, semi-automatic, and automatic backwash options available — two backwash controllers to choose from, including single and dual-tank configurations.
Composite Laminate Shell
Unique composite laminate design eliminates the need for winding — Paracote water-based coating provides environmental durability.
NSF / ANSI 50 Certified
NSF approved from 5–20 GPM per sq ft. ANSI Standard 50 certified.
2-Year Warranty
Pentair commercial warranty coverage.
Who It's For
- Commercial aquatic facilities, water parks, hotels, and community pools requiring high-volume sand filtration
- Equipment rooms with height restrictions where a horizontal tank is preferred over vertical
- Installations requiring 6-inch flanged plumbing and flows up to 535 GPM
- Multi-tank filtration systems using optional automatic backwash controllers
Specifications
Performance
| Filtration Area | 26.7 sq ft |
| Max Flow Rate | 535 GPM |
| Max Operating Pressure | 50 PSI |
| NSF Flow Range | 5–20 GPM/sq ft |
Filter Media
| Sand Required | 2,800 lb (not included) |
| Pea Gravel Required | 700 lb (not included) |
Tank & Plumbing
| Tank Orientation | Horizontal |
| Tank Diameter | 42 in |
| Tank Length | 96 in |
| Connections | 6 in Flanged |
| Manway | Front Access (Viewport Option Available) |
| Tank Shell | Composite Laminate with Paracote Coating |
Physical
| Product Weight | 800 lb |
| Shipping Dimensions | 111 × 55.5 × 58.5 in |
Approvals & Warranty
| Certifications | NSF Approved, ANSI Standard 50 Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair THS Series 42" × 96" Horizontal Sand Filter Tank
- Technical Documentation
Note: Filter sand (2,800 lb), pea gravel (700 lb), backwash valve/controller, and associated commercial plumbing are not included. Professional installation required.
Warranty
The Pentair THS Series Horizontal Sand Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
Why choose a horizontal tank over a vertical sand filter for commercial applications?
Horizontal filters have a lower height profile — making them better suited for equipment rooms or mechanical spaces with limited ceiling height. They also allow front-access maintenance via the manway without requiring overhead clearance. For equivalent flow capacity, a horizontal tank can fit in spaces where a vertical tank of the same diameter would not.
What backwash options are available?
The THS Series supports manual, semi-automatic, and automatic backwash configurations with two backwash controller options. Single-tank and dual-tank backwash systems are available. Your Pentair commercial representative or pool professional can specify the appropriate backwash system for your installation.
Is professional installation required?
Yes. The THS Series is a commercial product weighing 800 lb (tank only, before sand) requiring 6-inch flanged commercial plumbing, significant sand media loading, and a properly engineered backwash system. Licensed commercial pool contractors must handle the installation.
