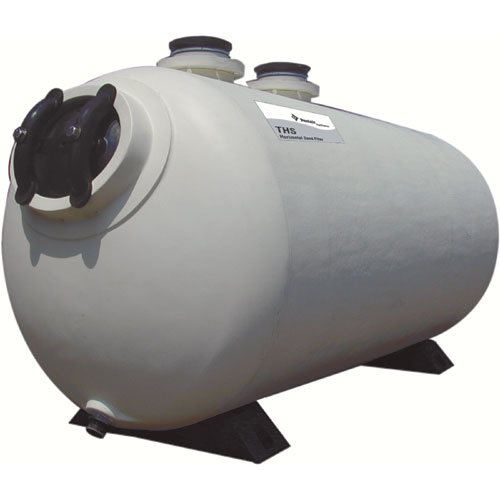

Pentair THS Series 42" × 72" Horizontal Sand Filter
The Pentair THS Series 42" × 72" Horizontal Sand Filter is one of the highest-capacity commercial sand filters available — delivering up to 535 GPM through 19.7 sq ft of filtration area in a horizontal tank configuration that minimizes equipment room height requirements. The unique composite laminate shell eliminates winding, and Paracote water-based coating provides long-lasting surface protection. Front manway placement reduces overall footprint for easier equipment room layout.
NSF/ANSI Standard 50 approved from 5–20 GPM per sq ft. Six-inch flanged connections. Optional manual, semi-automatic, and automatic backwash systems available. Requires 2,100 lb of sand and 500 lb of pea gravel (not included). 2-year warranty.
Note: Filter sand (2,100 lb), pea gravel (500 lb), and backwash control system are not included. Professional installation required. Freight shipping — contact us for a freight quote before ordering.
Key Features
535 GPM / 19.7 Sq Ft
Highest-flow THS model — handles the largest commercial pools and aquatic facilities.
Horizontal Tank — Reduced Height Footprint
Horizontal orientation ideal for equipment rooms with height restrictions. Front manway placement further minimizes footprint depth.
Composite Laminate Shell
Unique composite laminate design — no winding required. Paracote water-based environmentally friendly coating for surface protection.
6" Flanged Connections
Heavy-duty 6-inch flanged plumbing connections for high-flow commercial installations.
Influent Manifold Distribution
Prevents clogging and ensures even distribution across the full sand bed.
NSF/ANSI 50 Certified / 2-Year Warranty
Approved from 5–20 GPM per sq ft. Pentair 2-year warranty.
Flexible Backwash Control Options
Optional manual, semi-automatic, and automatic backwash systems for single and two-tank configurations — CM200 and CS400 series compatible.
Who It's For
- Large commercial aquatic facilities, water parks, and institutional pools requiring 535 GPM high-capacity filtration
- Equipment rooms where vertical height is limited — the horizontal design fits where tall vertical filters cannot
- Installations specifying 6-inch flanged connections and THS Series commercial performance
Specifications
Performance
| Filtration Area | 19.7 sq ft |
| Max Flow Rate | 535 GPM |
| Max Working Pressure | 50 PSI |
| Flow Rate Range | 5–20 GPM/sq ft (NSF approved) |
Filter Media
| Sand Required | 2,100 lb (not included) |
| Pea Gravel Required | 500 lb (not included) |
Tank & Plumbing
| Tank Design | Horizontal Composite Laminate |
| Tank Diameter | 42 in |
| Tank Length | 72 in |
| Connections | 6 in Flanged |
| Manway | Front-Access (Viewport Optional) |
Physical
| Product Weight | 584 lb |
| Shipping Dimensions | 86 × 48 × 58 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 / NSF Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair THS Series 42" × 72" Horizontal Sand Filter Tank
- User Manual
Note: Filter sand (2,100 lb), pea gravel (500 lb), and backwash control system not included. Professional installation required.
Warranty
The Pentair THS Series 42" × 72" comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
Why choose a horizontal tank over a vertical tank at this size?
At 42-inch diameter and 535 GPM capacity, a vertical tank would stand roughly 7–8 feet tall — requiring significant ceiling clearance in the equipment room. The horizontal THS design keeps the height to the tank diameter (42 inches) while using floor length instead, making it the practical choice when ceiling height is limited or when a lower center of gravity is preferred for the installation.
