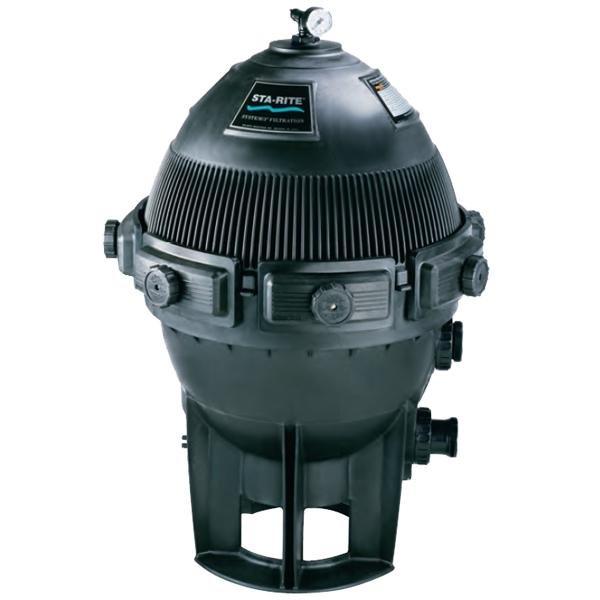

Pentair System:3™ 450 Sq Ft Modular Media Filter
The Pentair System:3™ 450 Sq Ft Modular Media Filter (S8M150) brings Sta-Rite's proven modular media technology to large in-ground pool installations — 450 sq ft of ultra-capacity filtration with completely care-free operation. Simply hose off the elements in minutes when cleaning is needed. Rated for 124 GPM and pools up to 60,000 gallons (8-hour turnover).
Same Dura-Glas™ two-piece glass-reinforced composite resin tank and balanced flow design as the S8M500, with 450 sq ft of shallow-pleat modular media. Dual drain plugs, 32.5-inch diameter, matte black finish. ANSI Standard 50 certified. Green certified. Backed by a 1-year warranty.
Key Features
450 Sq Ft Modular Media Filtration
450 sq ft of shallow-pleat media with complete coverage — maximum dirt-holding capacity for longer filter cycles.
Simple Hose-Off Cleaning
Remove and rinse elements in minutes — no backwash valve, no grid teardowns.
124 GPM / 60,000 Gallon Capacity
Sized for large in-ground pools up to 60,000 gallons at 8-hour turnover.
Balanced Flow Design
Integral manifold ensures perfectly balanced flow for uniform media loading and efficient filtration.
Dura-Glas™ Two-Piece Tank
Glass-reinforced composite resin in matte black — durable and attractive.
Dual Drain Plugs
Side plug for plumbing to waste; bottom plug drains entire filter.
Modular Tank Design

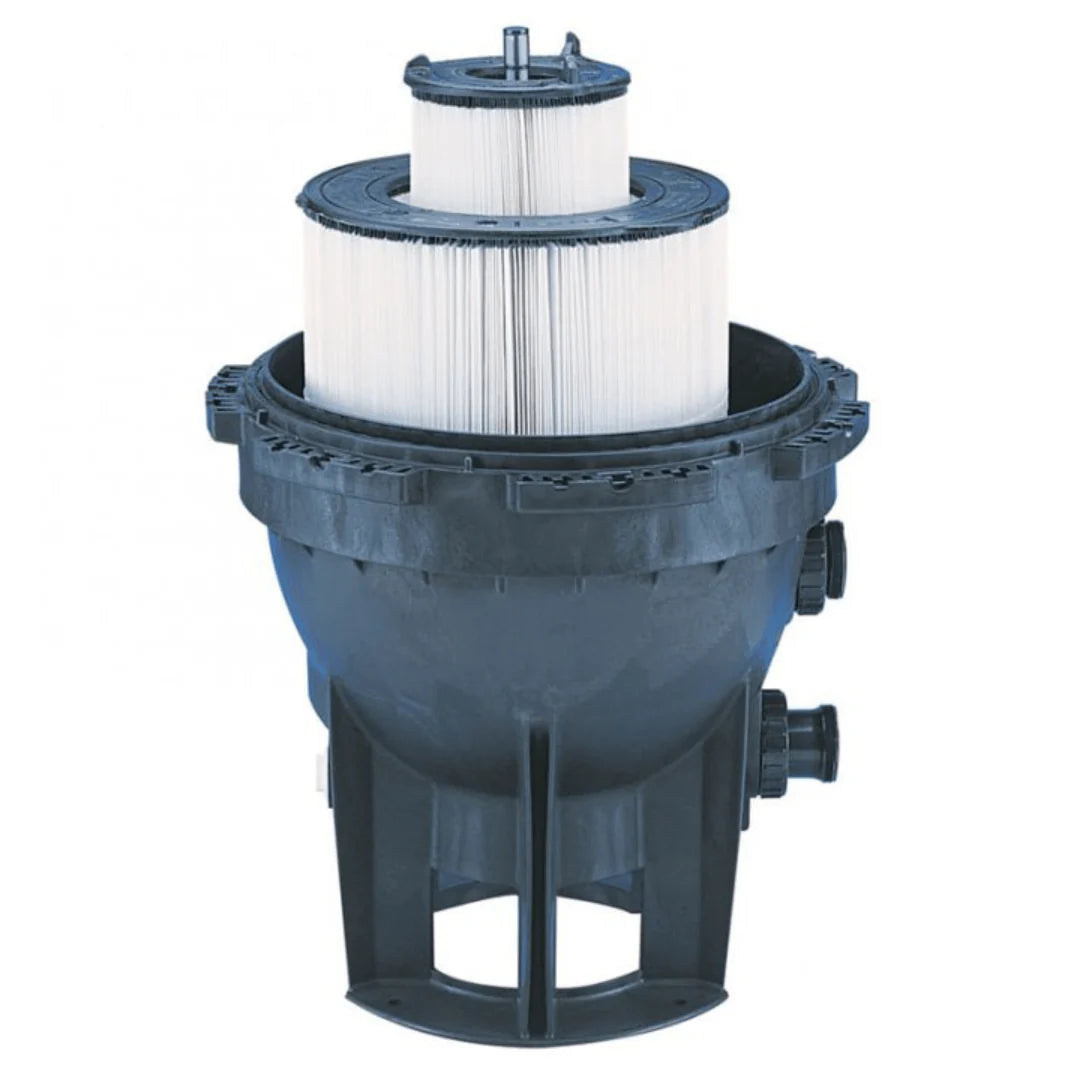

Change media type without replacing the tank — future-flexible investment.
ANSI Standard 50 / Green Certified / 1-Year Warranty
Certified performance with Pentair warranty.
Who It's For
- In-ground pool and spa owners with large pools who want high-capacity modular media filtration
- Anyone who wants the System:3 platform at 450 sq ft — between the 300 sq ft S7M120 and 500 sq ft S8M500
- Installations requiring 124 GPM flow in the System:3's 32.5-inch tank diameter
Specifications
Performance
| Filtration Area | 450 sq ft |
| Design / Max Flow Rate | 124 GPM |
| Max Working Pressure | 50 PSI |
| Pool Size (8-hr turnover) | Up to 60,000 gallons |
Tank & Plumbing
| Tank Material | Dura-Glas™ Glass-Reinforced Composite (Two-Piece) |
| Tank Diameter | 32.5 in |
| Tank Color | Matte Black |
| Plumbing Size | 2 in NPT |
| Drain | Dual (Side to waste + Bottom full drain) |
| Side Clearance Required | 40 in |
| Vertical Clearance Required | 50 in |
Physical
| Product Weight | 147 lb |
| Shipping Dimensions | 31 × 30.5 × 41.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Pentair System:3 S8M150 Modular Media Filter Tank
- Modular Media Elements
- User Manual
Warranty
The Pentair System:3 S8M150 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the S8M150 (450 sq ft) compare to the S8M500 (500 sq ft) and S7M120 (300 sq ft)?
All three are System:3 Dura-Glas™ modular media filters. The S8M150 sits between the 300 sq ft S7M120 (28.5-inch tank) and the 500 sq ft S8M500 in capacity. The S8M150 shares the 32.5-inch tank and dual drain plug design with the S8M500, but at 450 sq ft has a slightly lower 124 GPM max flow vs. 130 GPM for the S8M500. Both weigh 147 lb. Choose the S8M150 when the S7M120 is undersized but the full 500 sq ft of the S8M500 isn't required.
Does this filter require a backwash valve?
No. The System:3 design eliminates the need for a backwash valve — simply remove and hose off the modular media elements when cleaning is needed.
