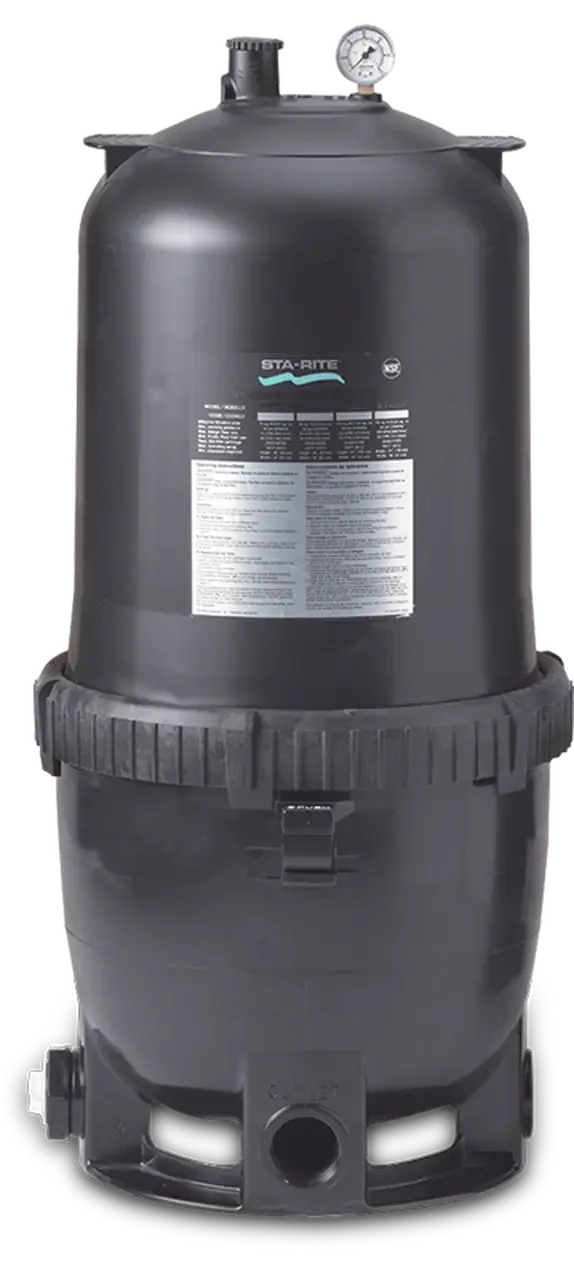

150 SqFt System:2 Mod Media Modular Media Filter
The Pentair System:2™ PLM Series 150 Sq Ft Modular Media Filter (PLM150) brings Sta-Rite's advanced modular media technology to a compact, low-profile design suited for both in-ground and above-ground pools. Advances in media technology and balanced flow design provide dirt-loading capabilities up to 15 times greater than sand filters of equivalent size — virtually maintenance-free operation for today's pool owner.
At just 27.75 inches tall, the PLM150 has the smallest footprint in the System:2 family. Four modular media elements with shallow pleats and complete media coverage deliver greater dirt-holding capacity and longer filter cycles. Interchangeable ports provide multiple plumbing options. Matte black finish, durable two-piece thermoplastic housing. ANSI Standard 50 certified. Backed by a 1-year warranty.
Key Features
15× More Dirt Capacity Than Equivalent Sand Filters
Shallow-pleat modular media provides dirt-loading capacity up to 15 times greater than a sand filter of equivalent size.
150 Sq Ft / 4 Modular Media Elements
Four easily accessible media elements with complete media coverage — long filter cycles and minimal cleaning required.
Ultra-Compact Low Profile
27.75-inch product height — among the most compact filter designs available for 150 sq ft capacity. Perfect for above-ground installations and tight equipment pads.
Interchangeable Ports
Multiple plumbing options for flexible installation in new construction and retrofit applications.
Balanced Flow Design
Innovative balanced flow design ensures uniform filtration across all media elements — virtually maintenance-free operation.
Modular Tank
Media can be changed without replacing the tank — future-flexible filtration investment.
Matte Black Contemporary Finish
Attractive in any pool setting — above-ground or in-ground.
ANSI Standard 50 Certified / 1-Year Warranty
Certified filtration performance with Pentair warranty.
Who It's For
- Above-ground and in-ground pool owners who want modular media filtration in the most compact design available
- New and retrofit installations where a low-profile filter is required
- Anyone upgrading from a sand filter who wants dramatically better filtration in a similar or smaller footprint
- Existing Sta-Rite System:2 PLM users replacing their filter
Specifications
Performance
| Filtration Area | 150 sq ft |
| Filter Type | Modular Media (4 Elements) |
| Max Working Pressure | 50 PSI |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
Tank & Plumbing
| Tank Material | Two-Piece Thermoplastic (Fiberglass-Reinforced) |
| Tank Color | Matte Black |
| Port Size | 2 in NPT (Interchangeable) |
| Vertical Clearance Required | 38.5 in |
Physical
| Product Height | 27.75 in |
| Product Weight | 43 lb |
| Shipping Dimensions | 20 × 21 × 29 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Warranty | 1 Year |
What's in the Box
- Pentair System:2 PLM150 Modular Media Filter Tank
- Four Modular Media Elements
- User Manual
Warranty
The Pentair System:2 PLM150 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the PLM150 compare to the System:3 S7M120?
Both are Sta-Rite modular media filters with the same balanced flow concept and matte black finish. The PLM150 is significantly more compact — 27.75-inch height vs. 42-inch for the S7M120 — making it the right choice for above-ground installations or any tight space. The S7M120 has more filtration area (300 vs. 150 sq ft) and suits larger pools. The PLM150 ships in a much smaller box and weighs 43 lb vs. 135 lb for the S7M120.
Is this filter suitable for above-ground pools?
Yes — this is one of the few modular media filters specifically designed for both above-ground and in-ground pools. Its low profile and compact dimensions make it practical for above-ground installations where full-size filters are too tall or heavy.
How does modular media compare to sand filtration?
The PLM150's shallow-pleat modular media provides up to 15 times more dirt-holding capacity than a sand filter of equivalent size. This means dramatically less frequent cleaning, better water clarity, and longer filter cycles — all from a more compact unit.
