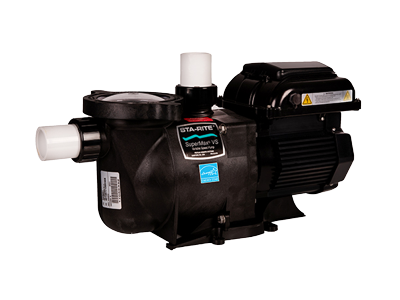

Pentair SuperMax® VS Variable Speed Pump 1.5HP 115/208-230V
The Pentair SuperMax® VS Variable Speed Pump 1.5 HP (343001) is the wise choice for pool owners stepping up to variable speed savings for the first time — engineered for easy installation, simple operation, and trouble-free service. Tri-voltage 115/208/230V auto-sensing, three operating speeds plus override, real-time clock with 24-hour memory. Energy Star and Eco-Select certified. Backed by a 2-year warranty. Sta-Rite by Pentair.
Key Features
Simple, Intuitive Interface
Easy to program and operate — ideal for pool owners new to variable speed technology.
Tri-Voltage 115/208/230V
Works on all standard pool electrical configurations — no rewiring or special switching required.
3 Operating Speeds + Override / Real-Time Clock
24-hour programmable schedule with 3 speed settings and override capability for flexible pool management.
1.5 HP / 2.2 THP
Ideal for standard pools requiring up to 1.5 HP — 450–3,450 RPM variable range.
Easy Installation
Easy-access electrical connections and simple design for straightforward installation and service.
Energy Star / Eco-Select / 2-Year Warranty
Dual-certified energy efficiency with Pentair's 2-year warranty.
Specifications
| Horsepower | 1.5 HP |
| Total HP (THP) | 2.2 THP |
| Motor Speed | Variable (450–3,450 RPM) |
| Voltage | 115V / 208V / 230V |
| Amperage (High Speed) | 13.2 A |
| Frequency | 50/60 Hz |
| Phase | Single |
| Port Size | 1.5 in NPT |
| Speed Settings | 3 Programmable + Override + 24-hr Clock |
| Product Weight | 53 lb |
| Shipping Dimensions | 28 × 12.5 × 15.5 in |
| Certifications | Energy Star, Eco-Select Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair SuperMax VS Variable Speed Pump (343001)
- User Manual
Warranty
The Pentair SuperMax VS 343001 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
