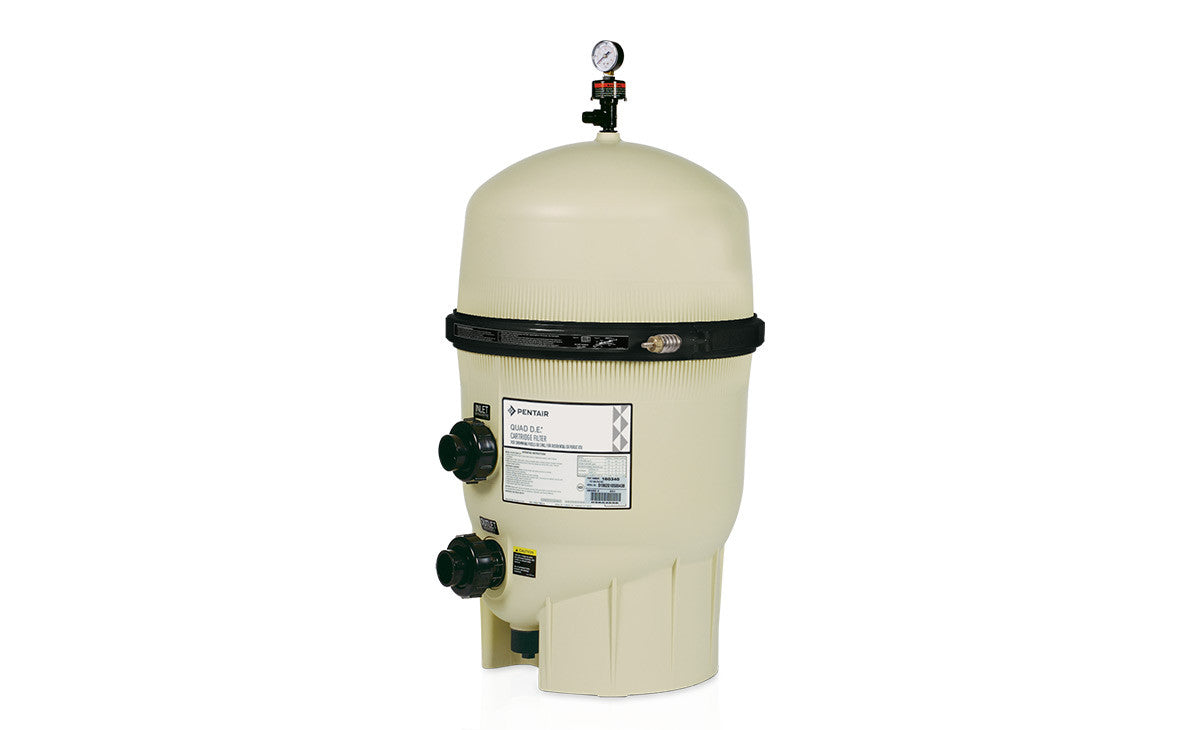

Pentair Quad D.E.® 80 Sq Ft Cartridge Style D.E. Filter
The Pentair Quad D.E.® 80 Sq Ft Cartridge-Style D.E. Filter delivers the best of both filtration worlds: the finest water clarity of diatomaceous earth filtration combined with the convenience and easy maintenance of a cartridge filter. Four large-capacity D.E. cartridges are easily removable for cleaning — no complicated teardown, no grid pack, just pull the cartridges and hose them off. Rated for 160 GPM, 8 lbs of D.E.
Built with a chemical-resistant fiberglass-reinforced polypropylene tank, unique internal flow path for optimum filtration and backwashing efficiency, and energy-efficient operation. ANSI Standard 50 certified. Backed by a 2-year warranty.
Key Features
D.E. Filtration + Cartridge Convenience
Finest D.E. water clarity (3–5 microns) with cartridge-style maintenance — easily removable cartridges replace complex grid teardowns.

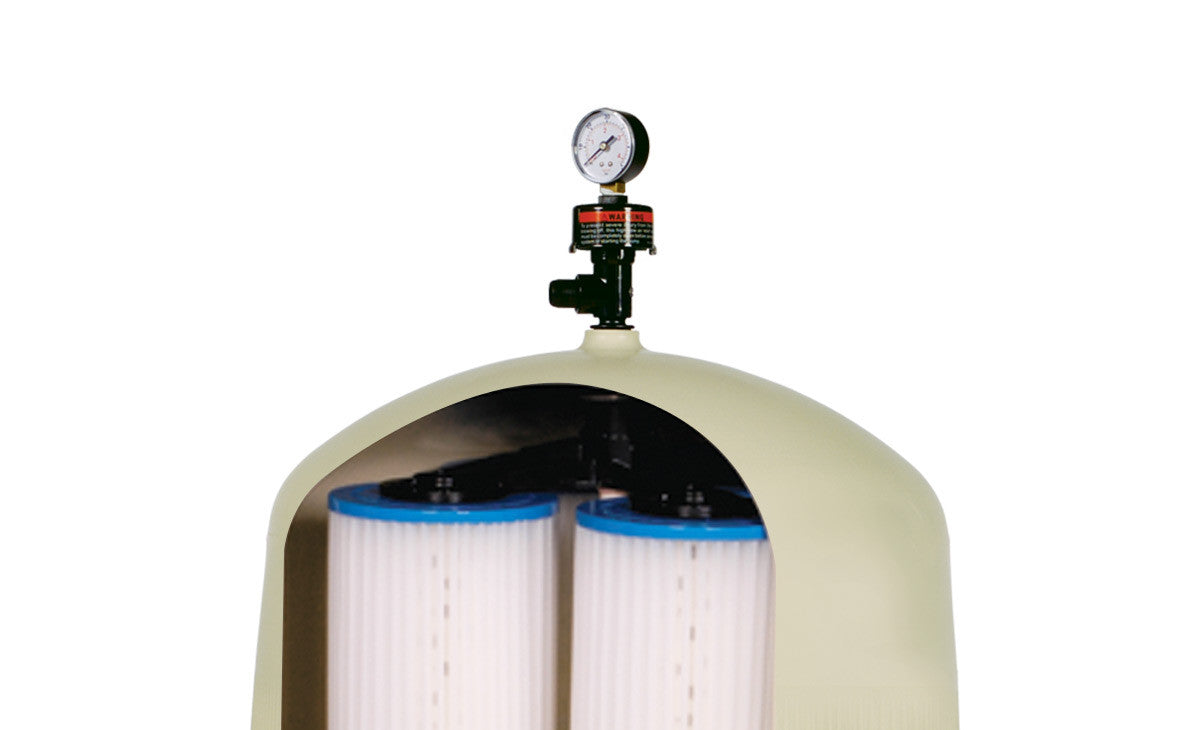

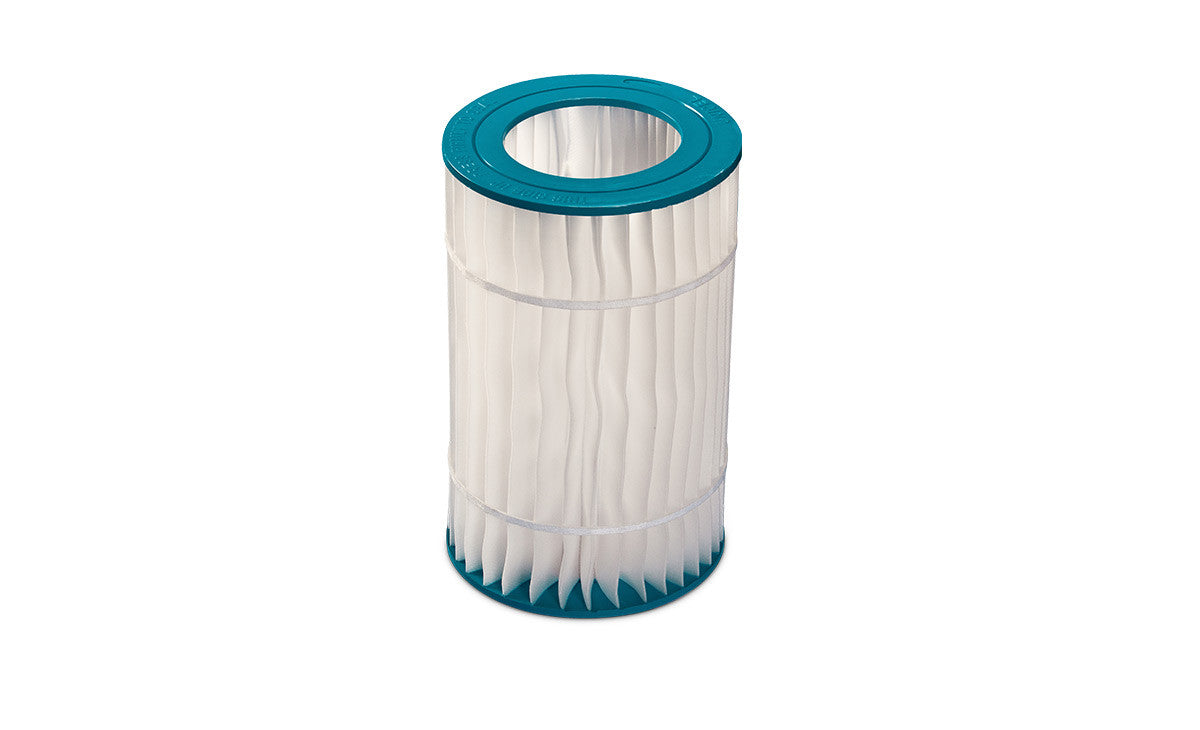

Four D.E. Cartridges — Easy Cleaning
Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings.
160 GPM Flow Rate
80 sq ft rated for up to 160 GPM — high-flow residential filtration with D.E.-level clarity.
Unique Internal Flow Path
Engineered for optimum filtration and backwashing efficiency — energy-efficient operation reduces pump energy use.
Chemical-Resistant Fiberglass-Reinforced Tank
Polypropylene construction for exceptional strength and long service life.
Energy Efficient
Water flows through so efficiently that your pump uses less energy — green certified.
ANSI Standard 50 Certified / 2-Year Warranty
Certified performance and Pentair's 2-year residential warranty.
Who It's For
- Pool owners who want D.E. water clarity but find traditional D.E. grid maintenance too complicated
- Anyone who loves cartridge-style easy maintenance but wants the finest possible filtration
- Pools where D.E. water quality is desired but the traditional backwash/teardown cycle is a barrier
- High-flow residential installations (up to 160 GPM) that want D.E.-level performance
Specifications
Performance
| Filtration Area | 80 sq ft |
| Filter Type | D.E. Cartridge (Quad) |
| Max Flow Rate | 160 GPM |
| D.E. Required | 8 lb |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
Physical
| Product Weight | 73 lb |
| Shipping Dimensions | 22 × 22.5 × 45 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 2 Years |
What's in the Box
- Pentair Quad D.E. Filter Tank
- Four D.E. Cartridge Elements
- User Manual
Note: Diatomaceous earth powder (8 lb) is not included and must be purchased separately.
Warranty
The Pentair Quad D.E. 80 sq ft Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How is the Quad D.E. different from a traditional D.E. filter?
Traditional D.E. filters use flat or curved grids that must be backwashed and periodically torn down as an assembly for cleaning. The Quad D.E. uses four removable cartridge elements coated with D.E. powder — when it's time to clean, you simply pull out the four cartridges and rinse them off, much like cleaning a standard cartridge filter. The D.E. powder provides the same 3–5 micron filtration of a traditional D.E. filter without the complex grid teardowns.
Does the Quad D.E. require backwashing?
The Quad D.E. supports backwashing for routine cleaning cycles, but also allows removing and hosing off the cartridges directly — giving you more flexibility than a traditional D.E. filter. Backwashing alone may not clean the cartridges as thoroughly as removal and rinsing.
How much D.E. powder is needed and when do I add it?
The Quad D.E. 80 requires 8 lb of D.E. powder at initial startup and after each cleaning. D.E. powder is added through the skimmer while the pump is running — it flows through the system and coats the cartridge elements. Use only pool-grade diatomaceous earth.
