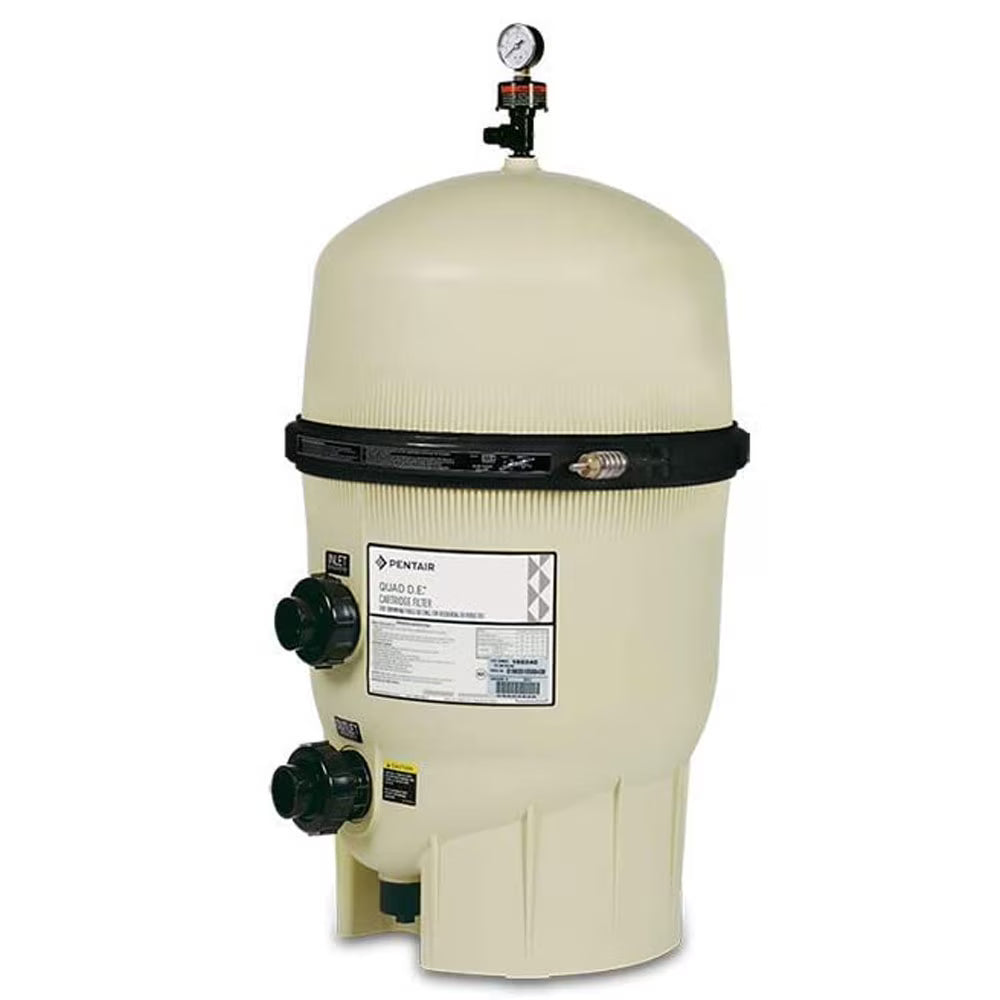

Pentair Quad D.E.® 60 Sq Ft Cartridge Style D.E. Filter EC-188592
The Pentair Quad D.E.® 60 Sq Ft Cartridge-Style D.E. Filter (EC-188592) combines the finest D.E. filtration available for the most sparkling-clear water with the convenience and easy-cleaning features of a cartridge filter. Four easily accessible and removable D.E. cartridges simplify maintenance — simply pull out and hose off when cleaning is needed. Rated for 120 GPM and pools up to 86,400 gallons (12-hour turnover).
Unique internal flow path for optimum filtration and backwashing efficiency, energy-efficient operation. Fiberglass-reinforced polypropylene tank. Backed by a 1-year warranty.
Key Features
D.E. Clarity + Cartridge Convenience

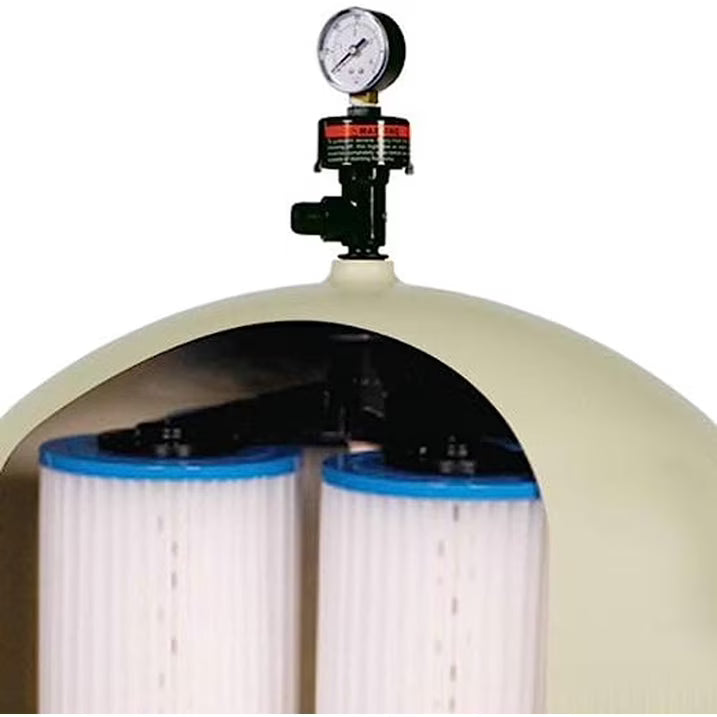

Four removable D.E. cartridges — finest filtration for crystal-clear water with easy hose-off cleaning.
60 Sq Ft / 120 GPM
Handles pools up to 86,400 gallons at 12-hour turnover.
Unique Internal Flow Path
Optimum filtration and backwashing efficiency — your pump uses less energy.
Fiberglass-Reinforced Polypropylene Tank
Chemical-resistant construction for exceptional strength and long service life.
Specifications
Performance
| Filtration Area | 60 sq ft |
| Filter Type | D.E. Cartridge (Quad) |
| Max Flow Rate | 120 GPM |
| Pool Size (8-hr turnover) | Up to 57,600 gallons |
| Pool Size (10-hr turnover) | Up to 72,000 gallons |
| Pool Size (12-hr turnover) | Up to 86,400 gallons |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Vertical Clearance Required | 62 in |
Physical
| Product Weight | 70 lb |
| Shipping Dimensions | 22.5 × 22.5 × 34.5 in |
Warranty
| Warranty | 1 Year |
What's in the Box
- Pentair Quad D.E. Filter Tank (EC-188592)
- Four D.E. Cartridge Elements
- User Manual
Note: Diatomaceous earth powder is not included and must be purchased separately.
Warranty
The Pentair Quad D.E. EC-188592 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
