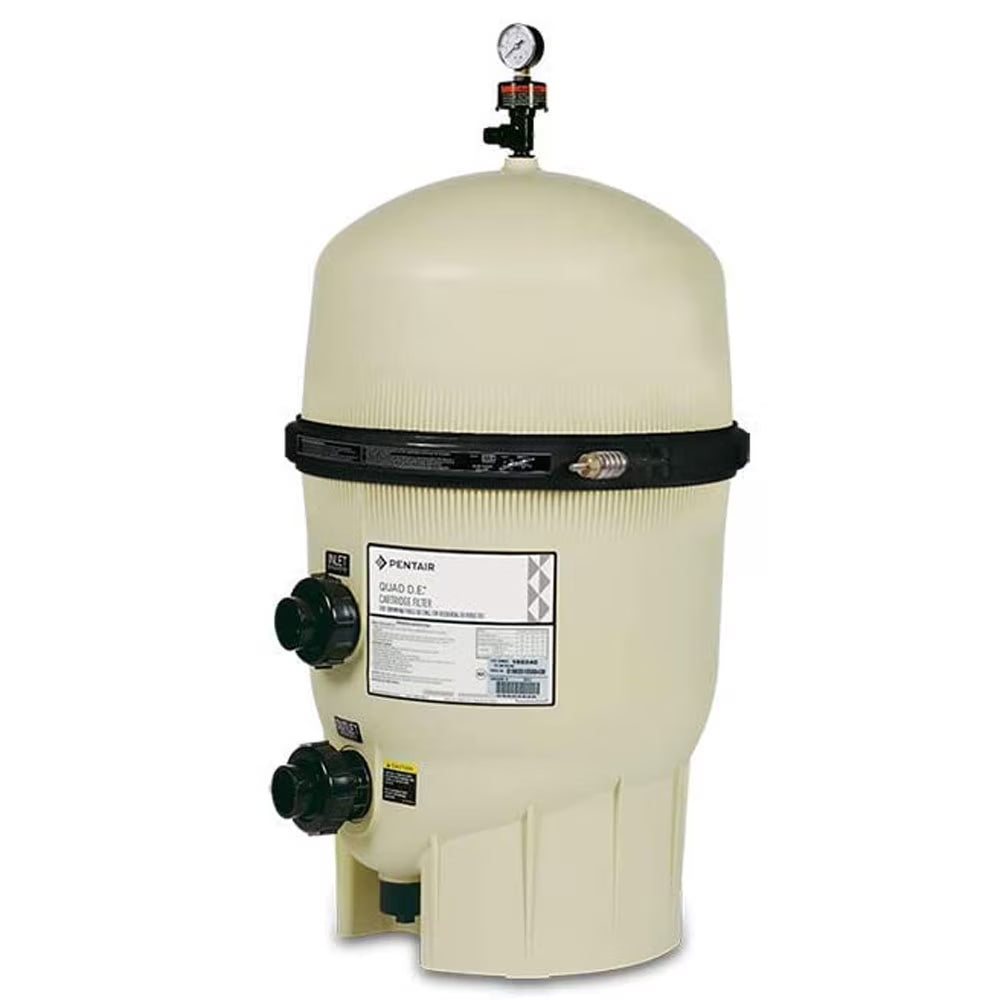

Pentair Quad D.E.® 60 Sq Ft Cartridge Style D.E. Filter
The Pentair Quad D.E.® 60 Sq Ft Cartridge-Style D.E. Filter delivers the finest D.E. water clarity with the convenience and easy maintenance of a cartridge filter. The entry model in the Quad D.E. family — four removable D.E. cartridges simply pull out and hose off when cleaning is needed. No complex grid teardown. Rated for 120 GPM with only 6 lb of D.E. required.
Chemical-resistant fiberglass-reinforced polypropylene tank, unique internal flow path for optimum filtration and backwashing efficiency, energy-efficient operation. ANSI Standard 50 certified. Backed by a 2-year warranty.
Key Features
D.E. Clarity + Cartridge Convenience

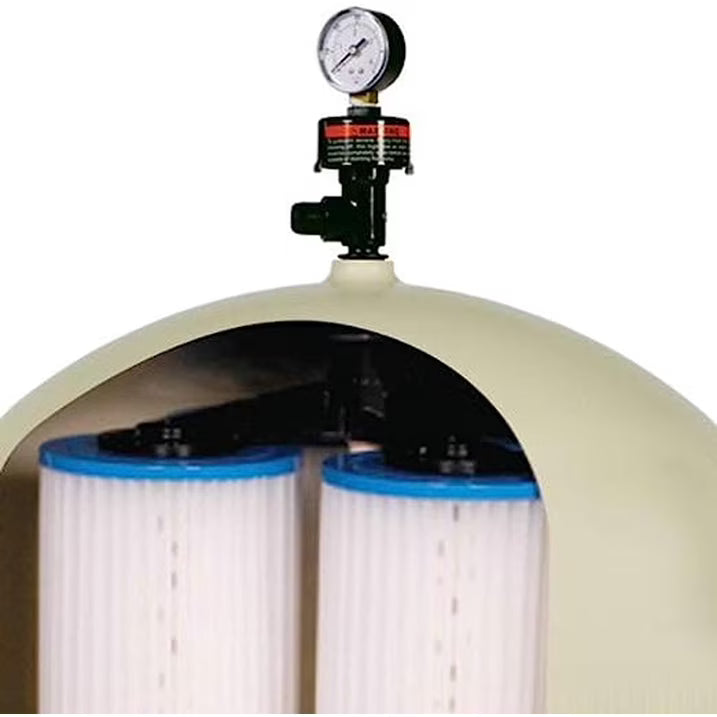

Finest D.E. water clarity (3–5 microns) with four removable cartridges — hose off to clean, no grid teardown required.
60 Sq Ft / 120 GPM
Entry Quad D.E. model — compact and lightweight (70 lb) for smaller pools or where the 80 or 100 sq ft model is oversized.
Only 6 lb D.E. Required
Lower D.E. charge than the larger models — less powder per cleaning cycle.
Unique Internal Flow Path
Engineered for optimum filtration and backwashing efficiency — energy-efficient operation.
Chemical-Resistant Fiberglass-Reinforced Tank
Exceptional strength and long service life.
ANSI Standard 50 / Green Certified / 2-Year Warranty
Certified performance and Pentair's 2-year residential warranty.
Who It's For
- Pool and spa owners who want D.E. clarity in a compact, easier-to-handle entry-level Quad D.E. filter
- Smaller pools where 60 sq ft / 120 GPM is correctly sized
- Anyone who wants the Quad D.E. cartridge-removal convenience at the most affordable Quad D.E. price point
Specifications
Performance
| Filtration Area | 60 sq ft |
| Filter Type | D.E. Cartridge (Quad) |
| Max Flow Rate | 120 GPM |
| D.E. Required | 6 lb |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
Physical
| Product Weight | 70 lb |
| Shipping Dimensions | 22 × 22 × 33.5 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 2 Years |
What's in the Box
- Pentair Quad D.E. Filter Tank (60 sq ft)
- Four D.E. Cartridge Elements
- User Manual
Note: Diatomaceous earth powder (6 lb) is not included and must be purchased separately.
Warranty
The Pentair Quad D.E. 60 sq ft Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the 60 sq ft Quad D.E. compare to the 80 sq ft (188593) and 100 sq ft (188594)?
All three are Pentair Quad D.E. cartridge-style filters with the same design and 2-year warranty. The 60 sq ft is the entry model — most compact at 70 lb with 6 lb D.E. charge and 120 GPM. The 80 sq ft (73 lb / 8 lb D.E. / 160 GPM) and 100 sq ft (83 lb / 10 lb D.E. / 160 GPM) offer more filter area for larger pools or longer cleaning intervals. Choose the 60 sq ft for smaller pools or where the most compact Quad D.E. is preferred.
