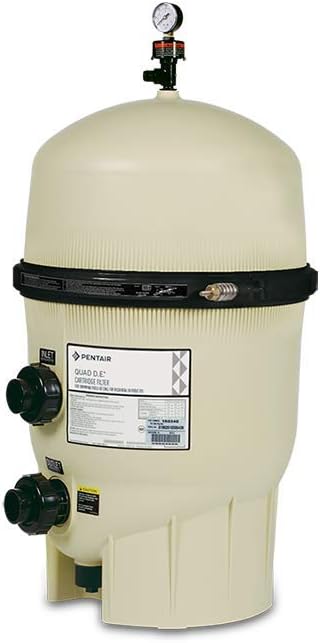

Pentair Quad D.E.® 100 Sq Ft Cartridge Style D.E. Filter
The Pentair Quad D.E.® 100 Sq Ft Cartridge-Style D.E. Filter delivers D.E.-level water clarity with the easy, cartridge-style maintenance that pool owners love. Four large-capacity D.E. cartridges are easily removable for cleaning — simply pull them out and hose them off. 100 sq ft rated for up to 160 GPM, requires 10 lbs of D.E.
Larger than the 80 sq ft model — more filter area for greater dirt-trapping capacity and longer periods between cleanings. Chemical-resistant fiberglass-reinforced polypropylene tank, unique internal flow path for optimum filtration and backwashing efficiency, energy-efficient operation. ANSI Standard 50 certified. Backed by a 2-year warranty.
Key Features
100 Sq Ft D.E. Cartridge — Easy Cleaning
25% more filter area than the 80 sq ft model — four removable D.E. cartridges for fast, manageable cleaning without complex grid teardowns.
D.E. Water Clarity + Cartridge Convenience
Finest filtration available (3–5 microns) with the easiest maintenance in D.E. filtration.
160 GPM Flow Rate
High-flow capability for larger residential pools.
Unique Internal Flow Path
Engineered for optimum filtration and backwashing efficiency — your pump uses less energy.
Chemical-Resistant Fiberglass-Reinforced Tank
Exceptional strength and long service life.
ANSI Standard 50 Certified / 2-Year Warranty
Green certified with Pentair's 2-year residential warranty.
Who It's For
- Pool owners who want D.E. clarity with cartridge convenience — and need more capacity than the 80 sq ft model
- Larger residential pools or heavier bather loads where extra D.E. area extends cleaning intervals
- Anyone who wants the Quad D.E. platform at maximum available residential capacity
Specifications
Performance
| Filtration Area | 100 sq ft |
| Filter Type | D.E. Cartridge (Quad) |
| Max Flow Rate | 160 GPM |
| D.E. Required | 10 lb |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 22 × 22.5 × 50 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 2 Years |
What's in the Box
- Pentair Quad D.E. Filter Tank (100 sq ft)
- Four D.E. Cartridge Elements
- User Manual
Note: Diatomaceous earth powder (10 lb) is not included and must be purchased separately.
Warranty
The Pentair Quad D.E. 100 sq ft Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the 100 sq ft Quad D.E. compare to the 80 sq ft model (188593)?
Both are Pentair Quad D.E. cartridge-style filters with the same 160 GPM flow rate and 2-year warranty. The 100 sq ft model has 25% more D.E. cartridge area — holding more dirt before cleaning is needed and requiring 10 lb of D.E. (vs. 8 lb for the 80 sq ft). It also ships taller (50 in vs. 45 in) and weighs slightly more (83 lb vs. 73 lb). Choose the 100 sq ft for larger pools or when maximum Quad D.E. capacity is the priority.
How much D.E. is needed and how is it added?
The Quad D.E. 100 sq ft requires 10 lb of D.E. powder at startup and after each cleaning. Add D.E. through the skimmer while the pump is running — it flows through the plumbing and coats the cartridge elements. Always use pool-grade diatomaceous earth.
