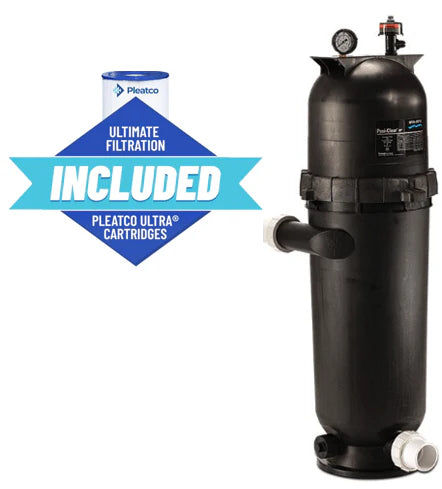

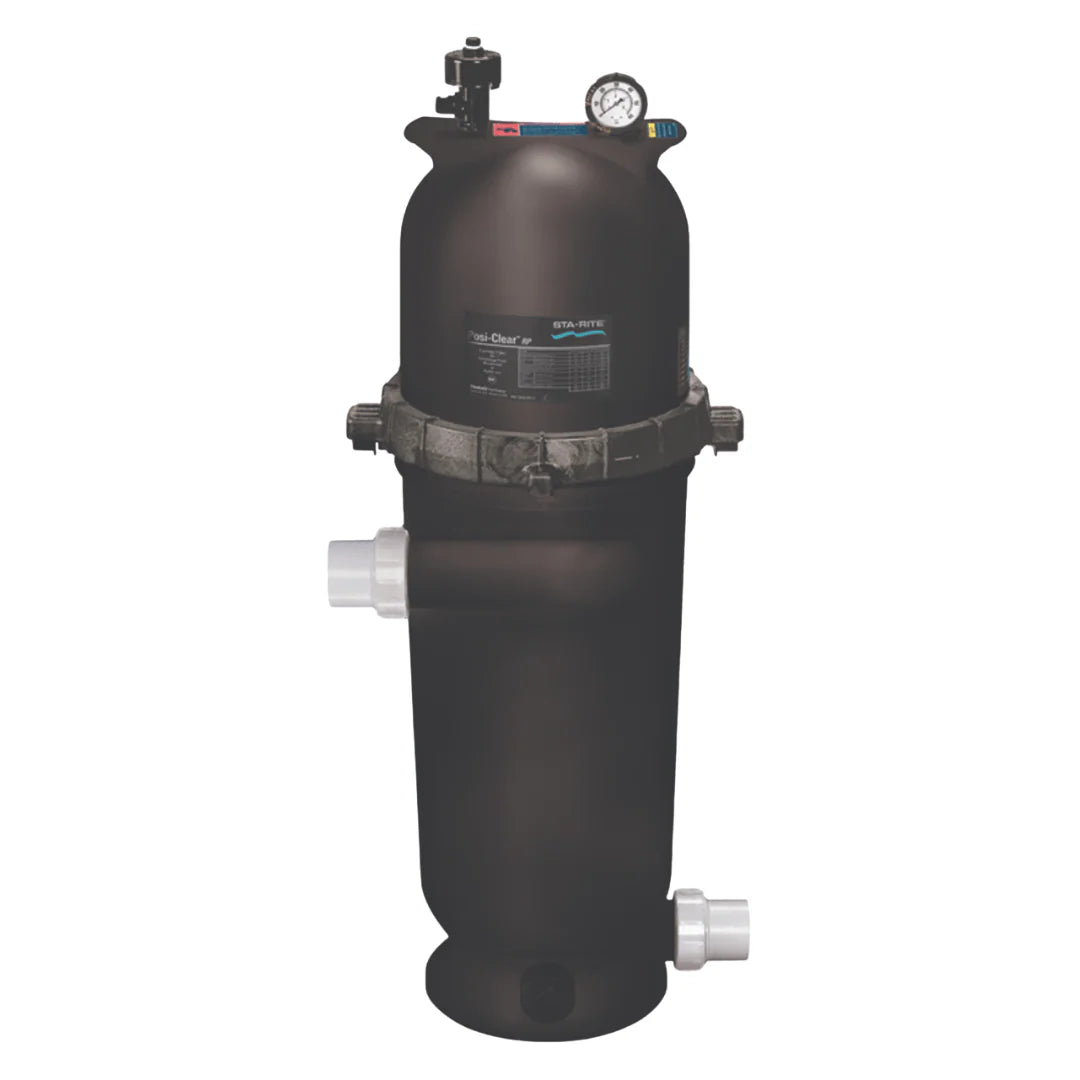

Pentair Posi-Clear™ RP 200 Sq Ft Cartridge Filter
The Pentair Posi-Clear™ RP 200 Sq Ft Cartridge Filter (PXCRP200) features the same innovative side-entry port design that provides nearly 50% more efficiency than any other single-cartridge pool filter available — in a sleek black fiberglass-reinforced polypropylene tank with no-tool servicing. Increased cartridge surface consistency traps particles as small as 20 microns for picture-perfect pool water. Rated for 150 GPM and pools up to 108,000 gallons (12-hour turnover). ANSI Standard 50 certified.
Innovative lock ring for leak-proof seal, easy and safe cartridge removal, 1.5-inch drain for quick winterization, Integrated Continuous High-Flow Manual Air Relief Valve. Backed by a 1-year warranty.
Key Features
Side-Entry Port — 50% More Efficient
Nearly 50% more efficiency than any other single-cartridge filter — 150 GPM from a single compact element.
200 Sq Ft / 150 GPM / 108,000 Gallon Coverage
Single cartridge, no backwash — handles pools up to 108,000 gallons at 12-hour turnover.
Filters to 20 Microns
Increased cartridge surface consistency traps particles as small as 20 microns.
No-Tool Servicing / Lock Ring
Innovative lock ring provides leak-proof seal — easy, safe cartridge removal and maintenance without tools.
1.5" Drain / Black Tank
Fast winterization drain, black single-piece fiberglass-reinforced polypropylene tank. ANSI 50 certified.
Green Certified / 1-Year Warranty
Energy-efficient operation. Pentair warranty coverage.
Specifications
Performance
| Filtration Area | 200 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges | 1 (Single Element) |
| Filtration Rating | 20 microns |
| Pool Size (6-hr turnover) | Up to 54,000 gallons |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank & Plumbing
| Port Design | Side-Entry |
| Inlet/Outlet Size | 1.5 in |
| Tank Color | Black |
| Drain | 1.5 in |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 76 in |
Physical
| Product Weight | 35 lb |
| Shipping Dimensions | 17.5 × 14.5 × 42 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Pentair Posi-Clear RP Filter Tank (160350)
- Single Cartridge Element (200 sq ft)
- User Manual
Warranty
The Pentair Posi-Clear RP 160350 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the Posi-Clear RP compare to the Pentair Clean & Clear RP?
Both are side-entry single-cartridge filters with identical performance — 200 sq ft, 150 GPM, 20-micron filtration, and ANSI 50 certification. The Posi-Clear RP is the Sta-Rite branded version in black with a lock ring closure; the Clean & Clear RP is the Pentair branded version. Both carry a 1-year warranty and are interchangeable for most installations.
