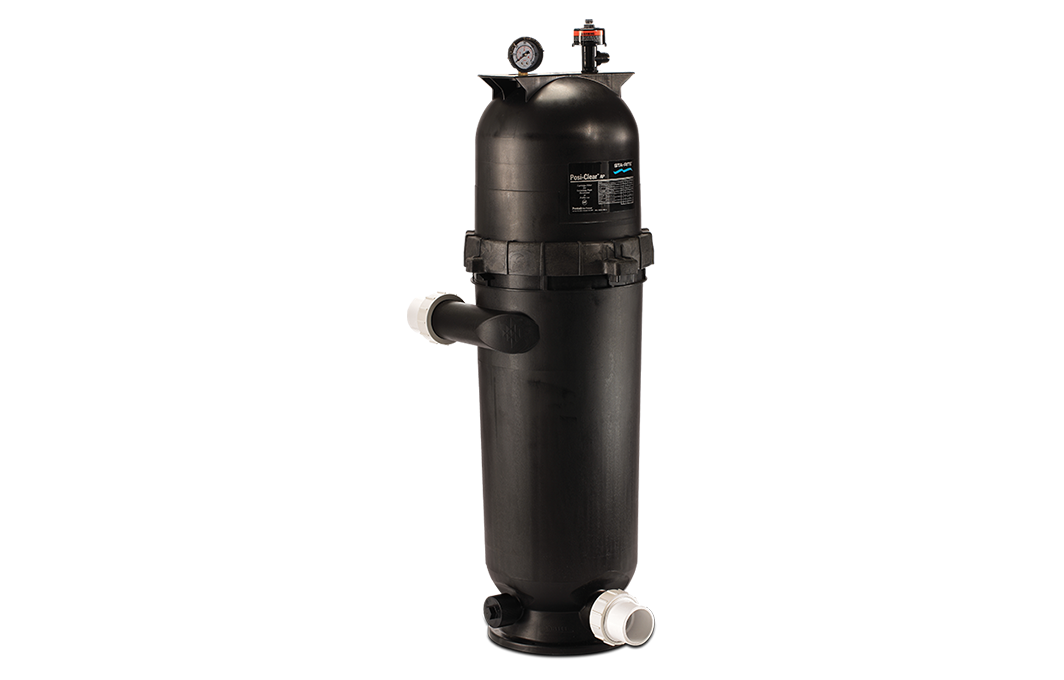

Pentair Posi-Clear™ RP 150 Sq Ft Cartridge Filter
The Pentair Posi-Clear™ RP 150 Sq Ft Cartridge Filter features the same innovative side-entry port design that provides nearly 50% more efficiency than any other single-cartridge pool filter available — combined with no-tool servicing for easier cleaning, an innovative lock ring for a leak-proof seal, and increased cartridge surface consistency that blocks and traps particles as small as 20 microns. Sta-Rite by Pentair. Available in 100, 150, and 200 sq ft sizes.
Single-piece fiberglass-reinforced polypropylene tank in black, rated for 150 GPM and pools up to 108,000 gallons (12-hour turnover). Integrated continuous high-flow manual air relief valve, 1.5-inch drain, 2-inch plumbing. ANSI Standard 50 certified. Backed by a 1-year warranty.
Key Features
Side-Entry Port — 50% More Efficient
Innovative side-entry port provides nearly 50% more efficiency than any other single-cartridge filter — 150 GPM from a single 150 sq ft element.
No-Tool Servicing
Innovative lock ring and no-tool design for easy, safe cartridge removal and maintenance.
Leak-Proof Lock Ring
Innovative lock ring provides a secure, leak-proof seal between filter head and tank.
150 GPM / Filters to 20 Microns
High flow with fine filtration — traps particles as small as 20 microns for picture-perfect pool water.
Fiberglass-Reinforced Black Tank
Single-piece black fiberglass-reinforced polypropylene for strength and corrosion resistance.
1.5" Drain
Full 1.5-inch drain port for quick maintenance and winterization.
Continuous High-Flow Manual Air Relief
Integrated continuous high-flow air relief valve maintains optimal system pressure.
ANSI Standard 50 Certified
Green certified — 1-year warranty.
Who It's For
- Pool and spa owners who want the side-entry port efficiency in a black Sta-Rite Posi-Clear platform
- Replacement for existing Posi-Clear RP installations
- Tight equipment pad installations needing only 6-inch side clearance with 76 inches of vertical clearance available
- Anyone who wants 150 GPM single-cartridge filtration in a compact black tank
Specifications
Performance
| Filtration Area | 150 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 1 (Single Element) |
| Filtration Rating | 20 microns |
| Pool Size (6-hr turnover) | Up to 54,000 gallons |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Tank Color | Black |
| Port Design | Side-Entry |
| Closure | No-Tool Lock Ring |
| Inlet/Outlet Size | 1.5 in (2-in pipe) |
| Drain | 1.5 in |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 76 in |
Physical
| Product Weight | 35 lb |
| Shipping Dimensions | 17.5 × 14.5 × 42 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Pentair Posi-Clear RP Filter Tank (Black)
- Single Cartridge Element (150 sq ft)
- User Manual
Warranty
The Pentair Posi-Clear RP 150 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the Posi-Clear RP and the Clean & Clear RP?
Both are Pentair side-entry port cartridge filters using the same platform and performance specs — 150 GPM, 150 sq ft, 20-micron filtration, 76-inch vertical clearance. The Posi-Clear RP is the Sta-Rite branded version in black; the Clean & Clear RP (160353) is the Pentair branded version in beige with a diamond-seal closure. Both are manufactured by Pentair. Choose based on brand preference, color, or which is the direct replacement for your existing filter.
How often does the cartridge need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. Use the no-tool lock ring to open the filter, remove the cartridge, and rinse with a garden hose.
