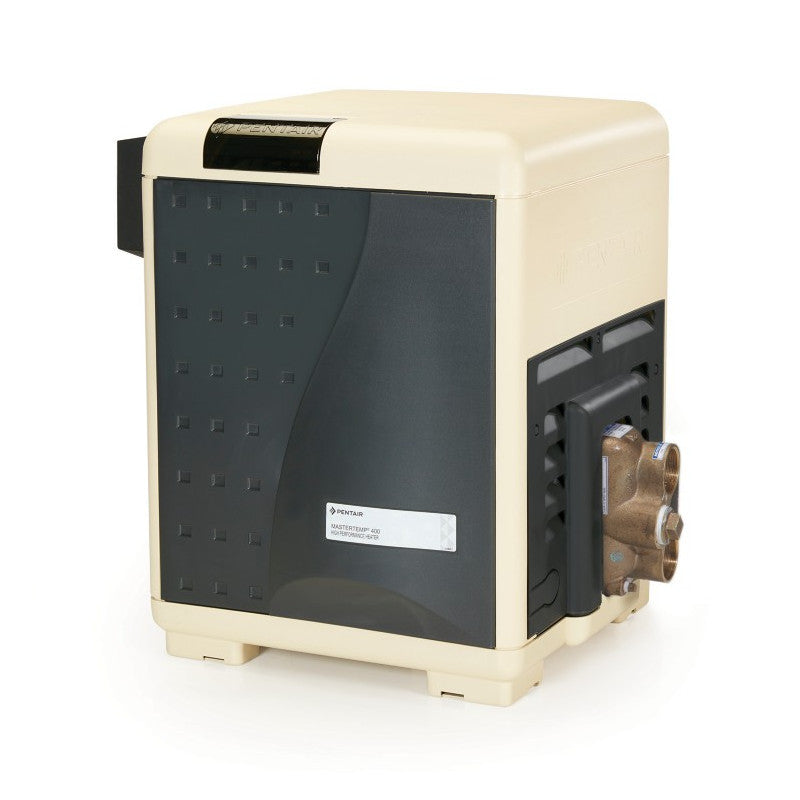

Pentair MasterTemp® Digital IID Heavy Duty Natural Gas Low NOx Heater 400K ASME HD BTU
The Pentair MasterTemp® Digital IID Heavy Duty Natural Gas Low NOx Heater 400K ASME HD BTU delivers all the efficiency, convenience, and reliability of the MasterTemp platform — plus commercial-grade ASME certification and heavy-duty cupro-nickel tubing rated for the most demanding pool environments. User-friendly indicator lights make system operation and monitoring a snap, while the compact design and super-quiet operation won't intrude on poolside leisure.
Built by Pentair with ASME-certified construction, cupro-nickel tubing, 400,000 BTU natural gas output, and a Digital IID ignition system — this is the HD MasterTemp for commercial applications where standard residential certification isn't sufficient. Backed by a 2-year warranty.
⚠️ Professional Installation Required. Pool heater installation involves gas line connections and electrical wiring. Always use a licensed contractor to ensure safety, code compliance, and warranty validity.
Key Features
ASME Certified Construction
Built to the most rigorous pressure vessel standards — required for many commercial installations.
400,000 BTU Heavy-Duty Output
Maximum-capacity natural gas heating in the ASME-rated MasterTemp platform.
Cupro-Nickel Tubing (HD)
Withstands low pH, high flow, and heavy use — the most demanding pool applications.
Digital IID Ignition
Intermittent Ignition Device — reliable electronic ignition without a standing pilot light.
Low NOx Certified
Meets low emissions standards — green certified.
Digital Indicator Lights
User-friendly indicator lights for simple operation and monitoring.
Compact, Quiet Design
Same 23-inch wide MasterTemp cabinet — super-quiet operation.
Indoor and Outdoor Rated
Suitable for both indoor and outdoor pool and spa installations.
2-Year Warranty
Pentair warranty coverage.
Who It's For
- Commercial pool installations that require ASME-certified heater construction
- Applications with low pH, high flow, or heavy bather loads demanding HD cupro-nickel tubing
- Indoor and outdoor commercial pool and spa heating at 400K BTU
- Anyone who needs the MasterTemp platform with ASME certification
Specifications
Heating Performance
| BTU Input / Output | 400,000 BTU |
| Fuel Type | Natural Gas |
| Ignition | Digital IID (Intermittent Ignition Device) |
| Max Flow Rate | 120 GPM |
Construction
| Tubing Material | Cupro Nickel (HD) |
| Control Type | Digital (Indicator Lights) |
Installation
| Gas Connection | 0.75 in |
| Voltage | 120V / 240V |
| Frequency | 60 Hz |
| Phase | Single |
| Application | Indoor / Outdoor / Pool / Spa |
Physical
| Product Weight | 149 lb |
| Cabinet Dimensions | 23 W × 28.2 D × 21 H in |
| Shipping Dimensions | 36 × 25 × 30 in |
Approvals & Warranty
| Certifications | ASME Certified |
| Emissions | Low NOx (Green Certified) |
| Warranty | 2 Years |
What's in the Box
- Pentair MasterTemp Digital IID HD 400K ASME Natural Gas Heater
- Union Fittings
- User Manual
Warranty
The MasterTemp Digital IID HD 400K ASME comes with a 2-year manufacturer warranty from Pentair. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What does ASME certified mean for this heater?
ASME (American Society of Mechanical Engineers) certification means the heat exchanger was designed and built to meet the most rigorous pressure vessel standards in the industry. Many commercial pool installations — hotels, fitness centers, aquatic facilities — require ASME-certified heaters per local code. The standard residential MasterTemp models are not ASME certified.
What is a Digital IID ignition system?
IID stands for Intermittent Ignition Device — an electronic ignition system that only sparks when the heater needs to fire, rather than maintaining a continuous standing pilot light. This improves energy efficiency and reliability compared to standing pilot designs.
How does this differ from the standard 400K HD MasterTemp (460805)?
The 461021 adds ASME certification to the HD platform — the key distinction is that ASME certification is required for many commercial pool codes. Both share the same cupro-nickel tubing, 400K BTU output, and compact 23-inch cabinet. Choose 461021 when ASME certification is required by code or specification.
Does this heater require professional installation?
Yes. Gas heater installation involves connecting to a natural gas supply line, electrical wiring, and proper venting. A licensed contractor must perform the installation to ensure safety, local code compliance, and warranty validity.
