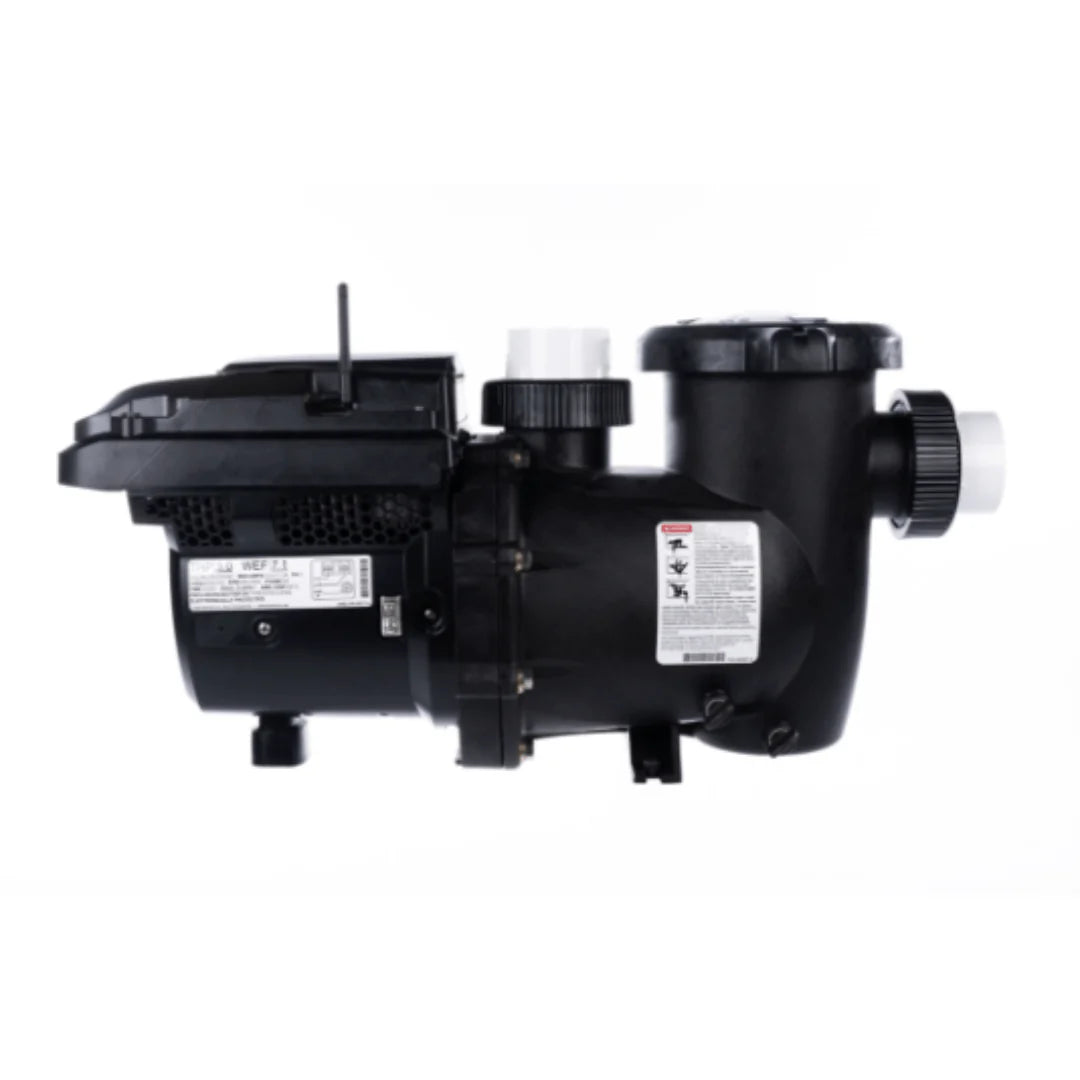

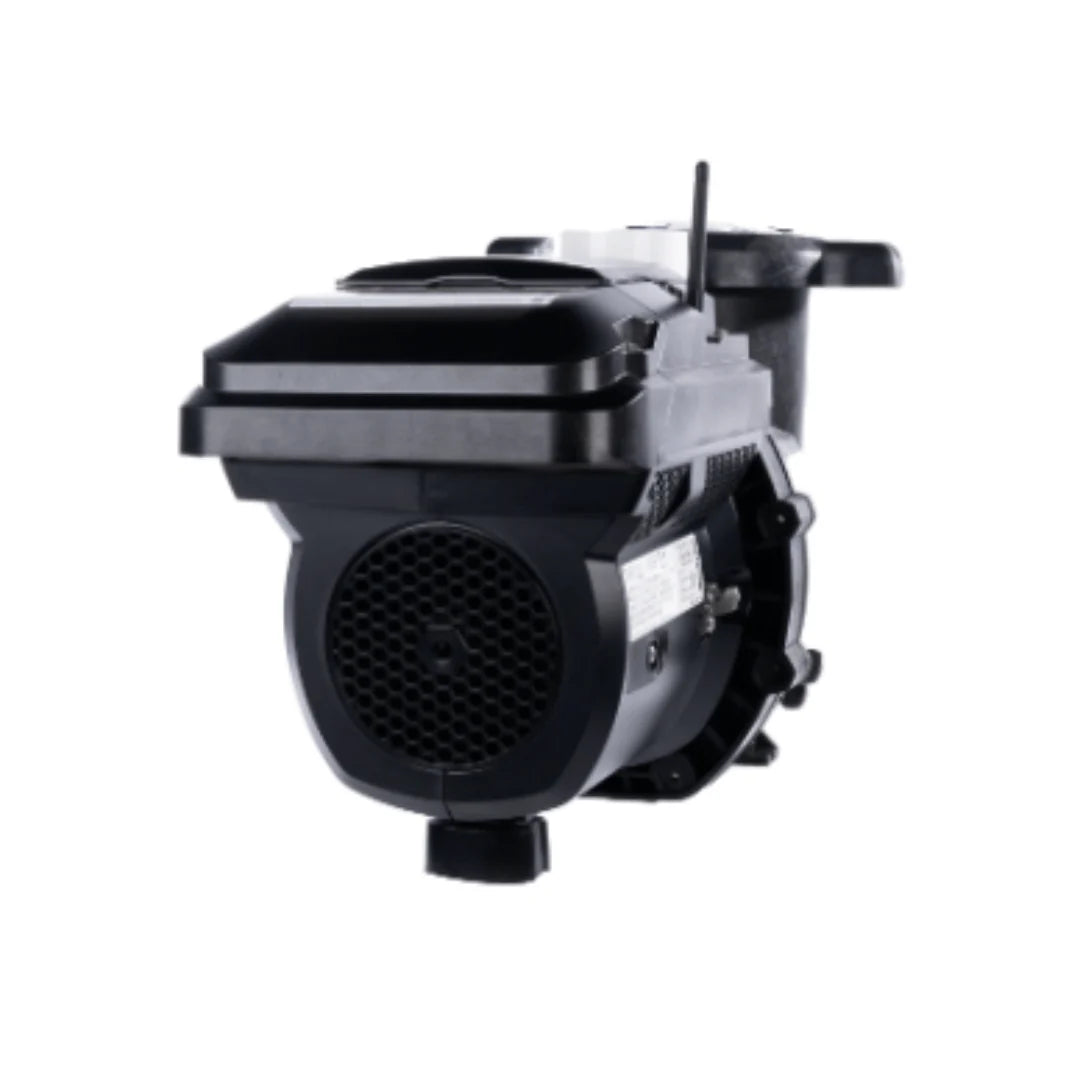

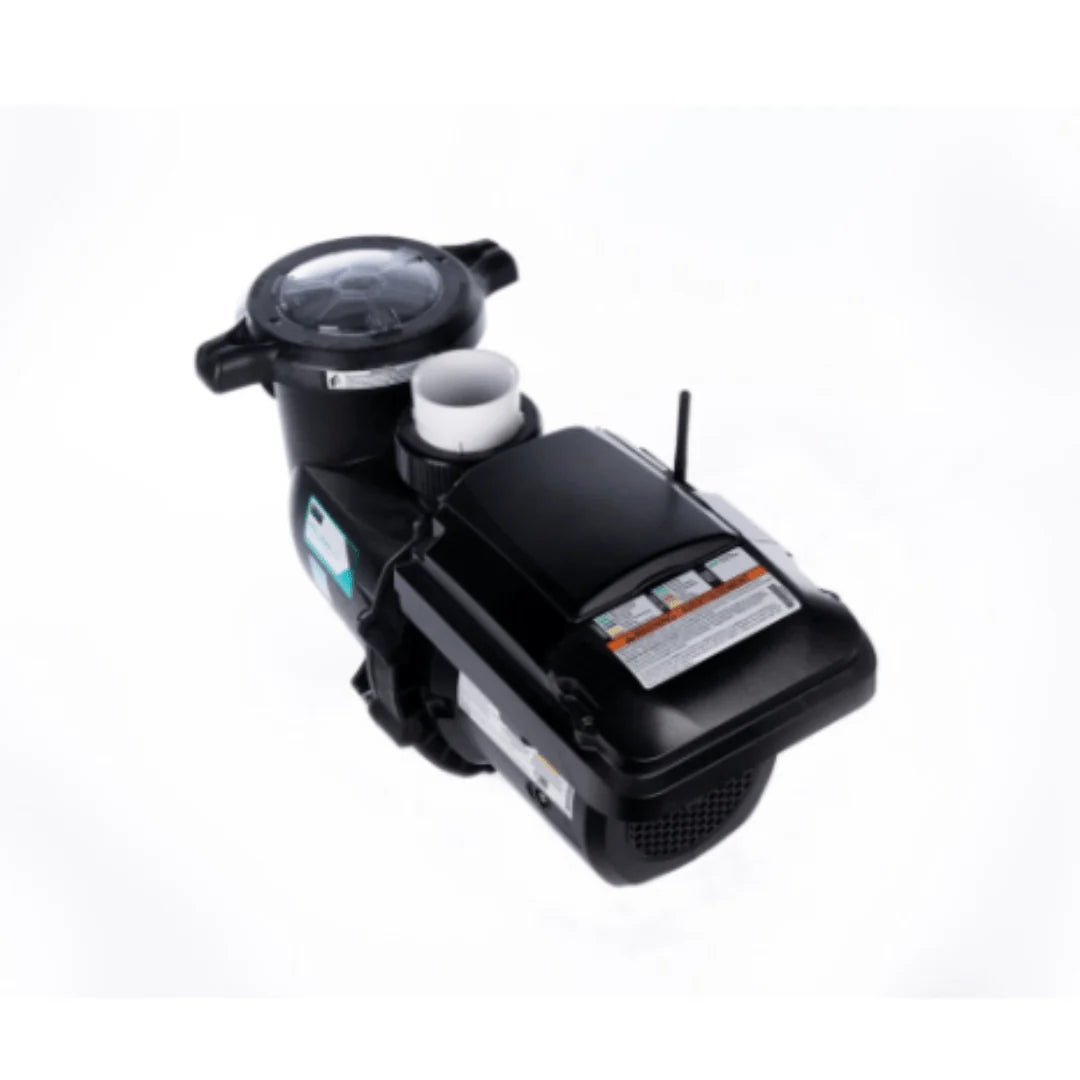

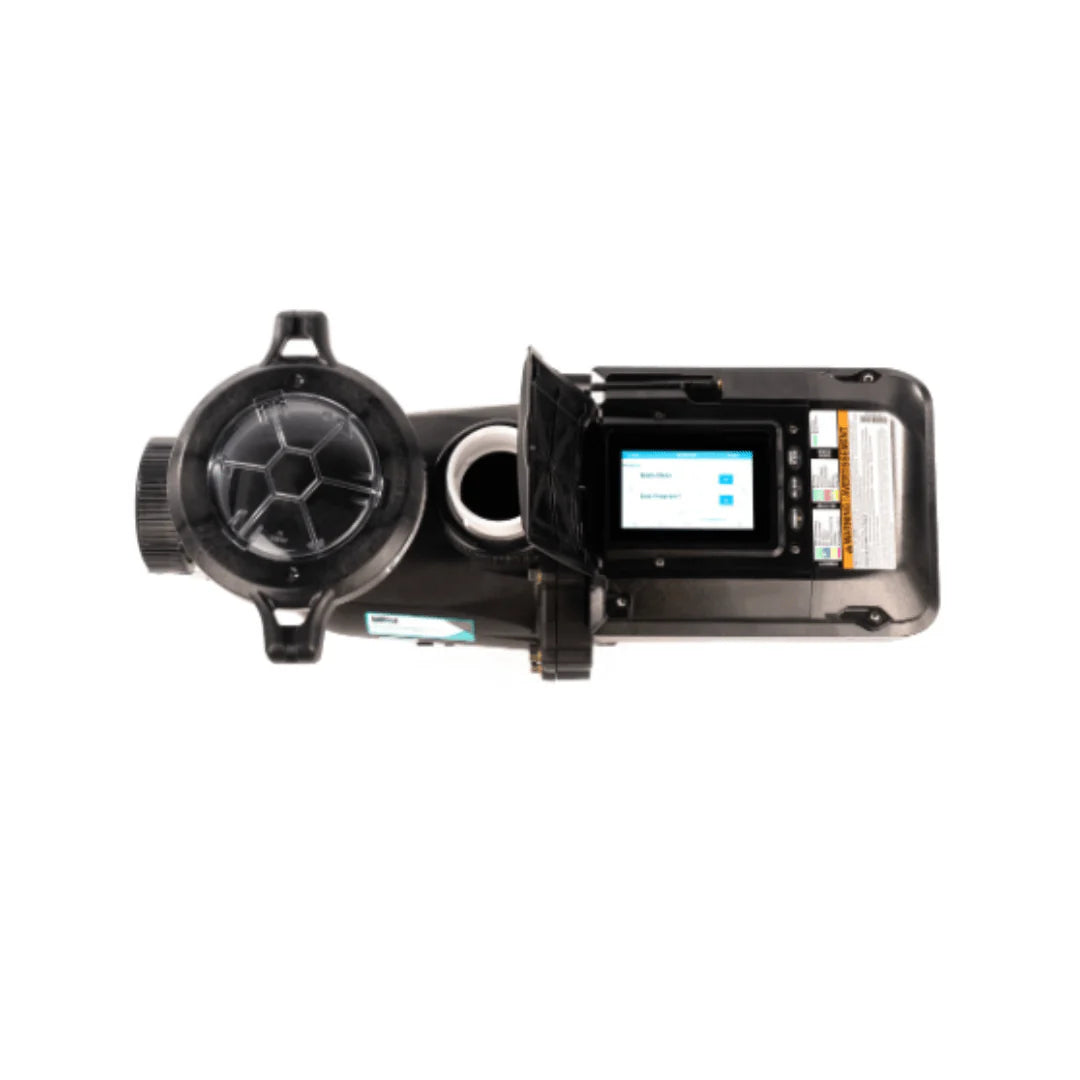

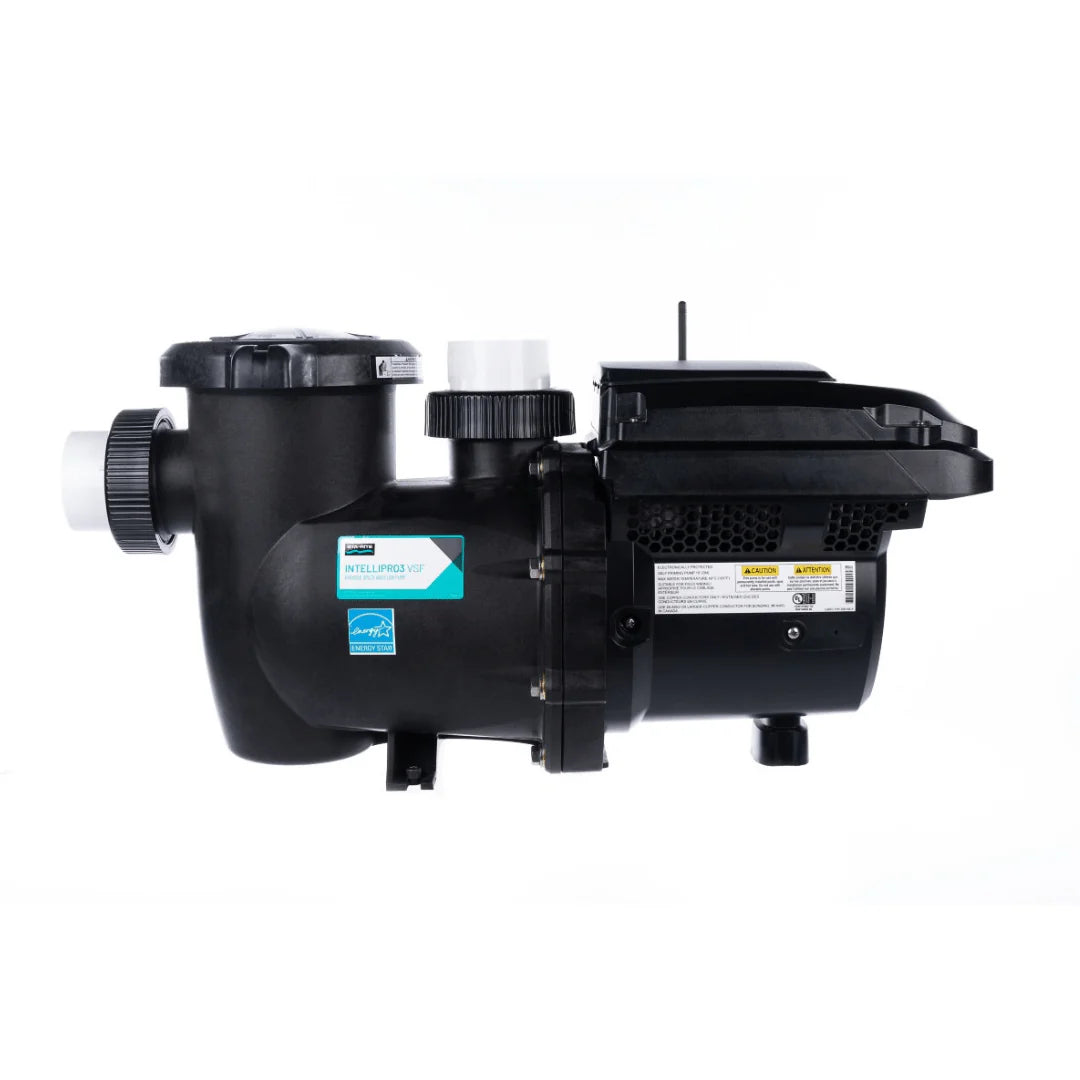

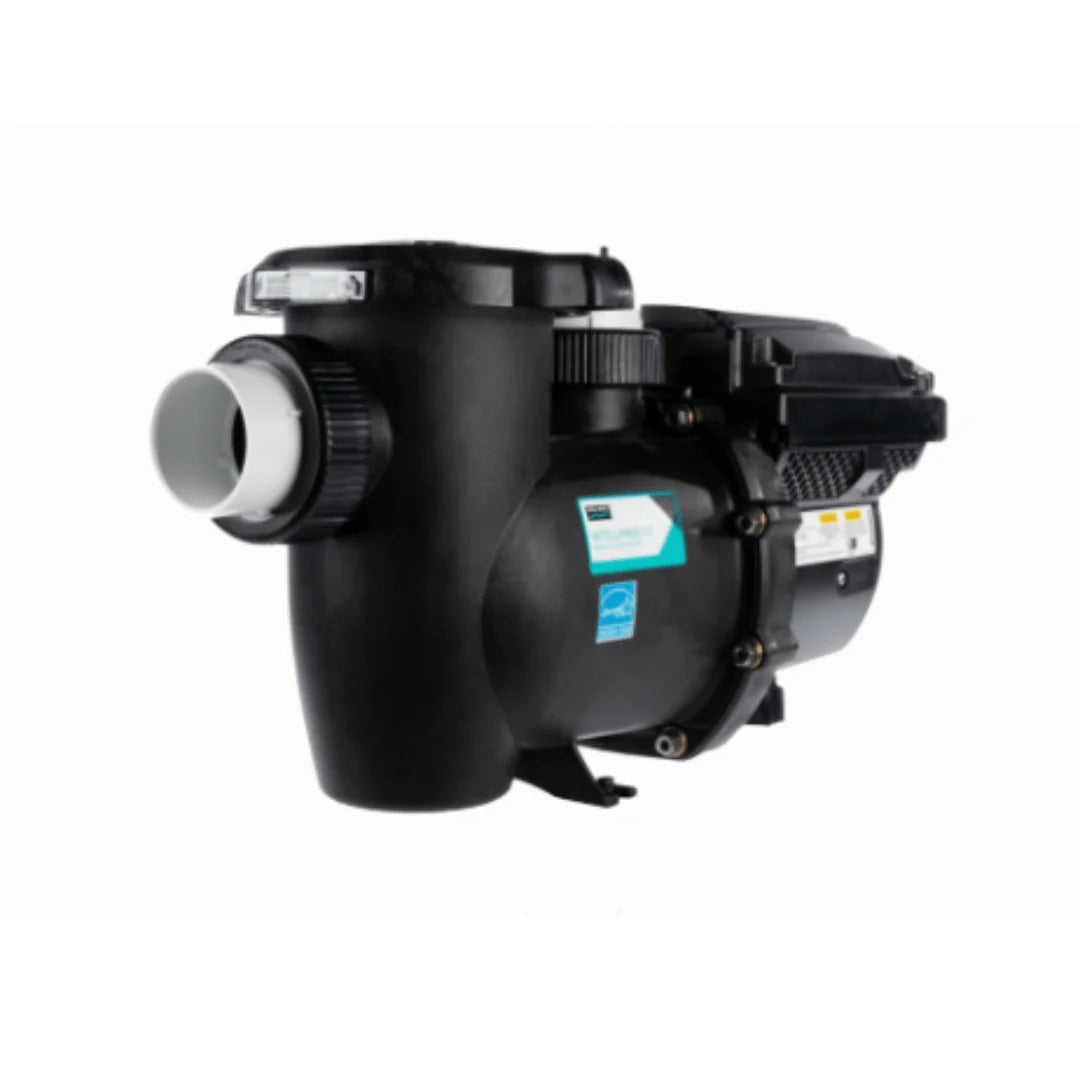

Pentair IntelliPro3® VSF Pump with Relay Board 3 THP 208-230V
The Pentair IntelliPro3® VSF 3 THP Pump with Relay Board 208-230V (013076) is the Sta-Rite branded counterpart to the IntelliFlo3 VSF — same built-in sensorless flow control technology that automatically maintains programmed flow rate, same 20–140 GPM range, same WEF 7.1 energy efficiency, with relay board included for automation integration.
Note: This pump carries a 60-day manufacturer warranty.
Key Features
Built-In Sensorless Flow Control
Automatically maintains the target GPM regardless of system resistance changes — no external sensors required.
3 THP / 20–140 GPM / WEF 7.1
Same performance specifications as the IntelliFlo3 VSF 011076.
Relay Board Included
Automation relay board included for integration with pool control systems.
Sta-Rite by Pentair
IntelliPro3 is the Sta-Rite branded version of the IntelliFlo3 VSF — same pump platform, different brand designation.
Specifications
| Total HP (THP) | 3 THP |
| Flow Rate Range | 20–140 GPM |
| Motor Speed | Variable (450–3,450 RPM) |
| Max Working Pressure | 30 PSI |
| Weighted Energy Factor (WEF) | 7.1 |
| Voltage | 208V / 230V |
| Frequency | 50/60 Hz |
| Phase | Single |
| Relay Board | Included |
| Color | Beige |
| Product Weight | 53.5 lb |
| Shipping Dimensions | 30 × 15 × 19 in |
| Warranty | 60 Days |
What's in the Box
- Pentair IntelliPro3 VSF Pump (013076)
- Relay Board
- User Manual
Warranty
The Pentair IntelliPro3 VSF 013076 comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
