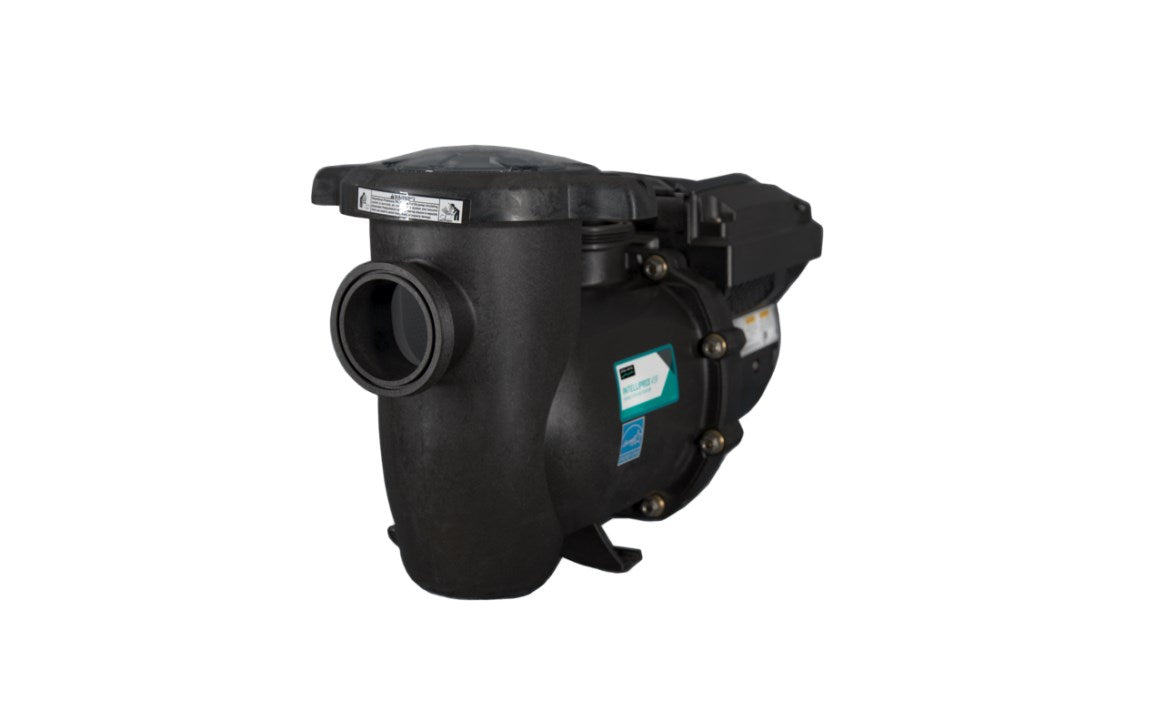

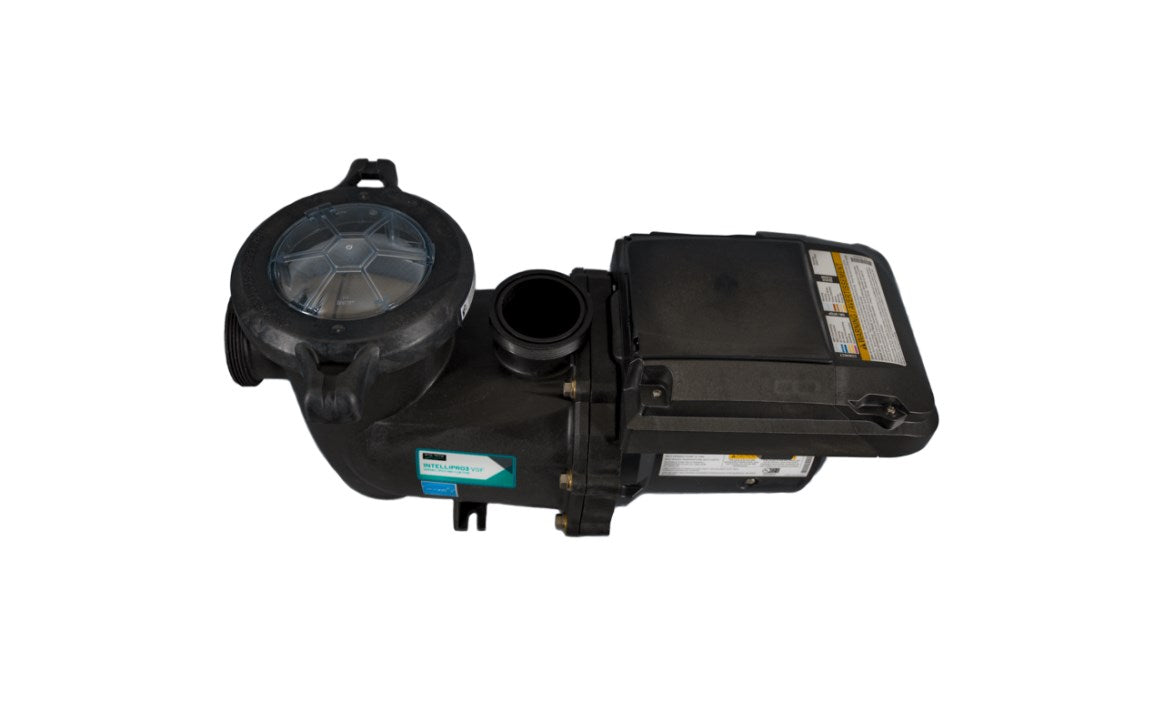

Pentair IntelliPro3® VSF Pump 3 THP 208-230V
The Pentair IntelliPro3® VSF 3 THP Pump 208-230V (013075) is the Sta-Rite branded variable speed + flow pump with built-in sensorless flow control — automatically maintains the programmed flow rate regardless of system changes. Same 20–140 GPM range and WEF 7.1 as the 013076 model, without the relay board. Backed by a 1-year warranty — longer than the relay-equipped 013076 (60 days).
Note: Relay board not included with this model (013075). See model 013076 for relay board version.
Key Features
Built-In Sensorless Flow Control
Automatically maintains the target GPM regardless of system resistance changes — no external sensors required.
3 THP / 20–140 GPM / WEF 7.1
Same performance specifications as the relay-equipped 013076.
1-Year Warranty
Longer warranty than the relay-equipped 013076 (60 days).
TEFC Motor / NEMA Cord / Electronic Thermal Protection
Totally Enclosed Fan-Cooled motor with electronic thermal protection for safe, reliable operation.
Sta-Rite by Pentair
IntelliPro3 is the Sta-Rite branded version of the IntelliFlo3 VSF platform.
Specifications
| Total HP (THP) | 3 THP |
| Flow Rate Range | 20–140 GPM |
| Motor Speed | Variable Speed + Flow |
| Motor Type | TEFC |
| Thermal Protection | Electronic |
| Max Working Pressure | 30 PSI |
| Weighted Energy Factor (WEF) | 7.1 |
| Voltage | 208V / 230V |
| Cord Type | NEMA |
| Relay Board | Not Included (see 013076 for relay version) |
| Product Weight | 53.5 lb |
| Shipping Dimensions | 30 × 15 × 19 in |
| Warranty | 1 Year |
What's in the Box
- Pentair IntelliPro3 VSF 3 THP Pump (013075)
- User Manual
Warranty
The Pentair IntelliPro3 VSF 013075 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
