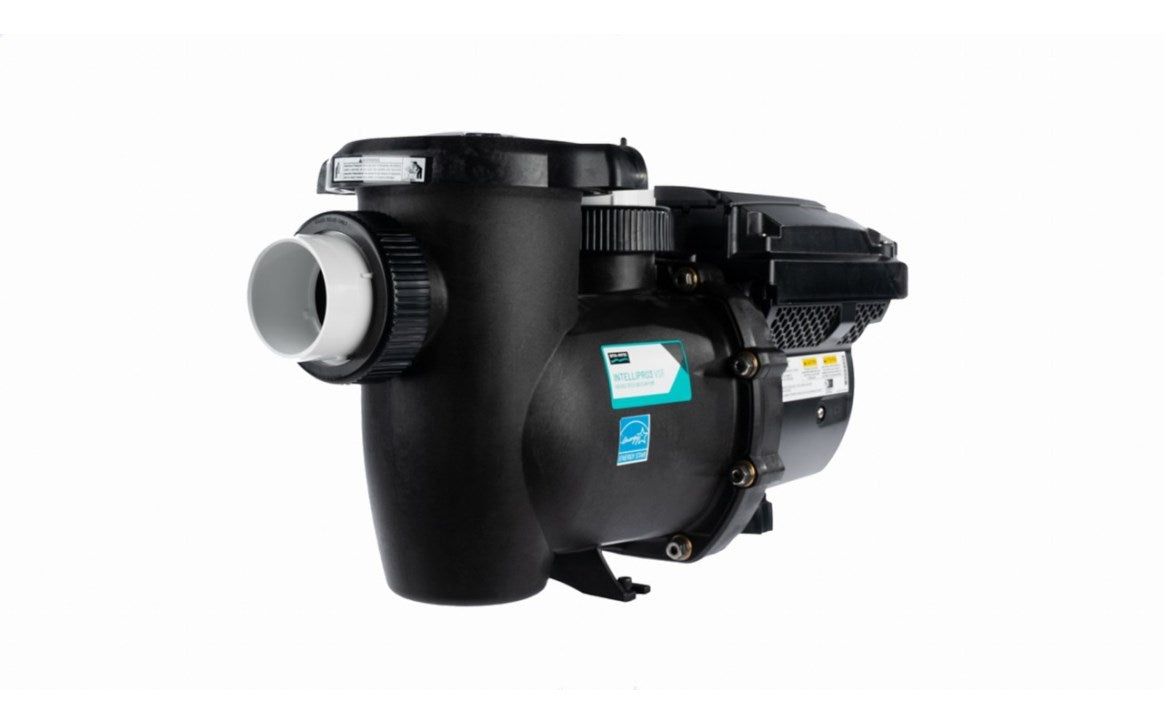

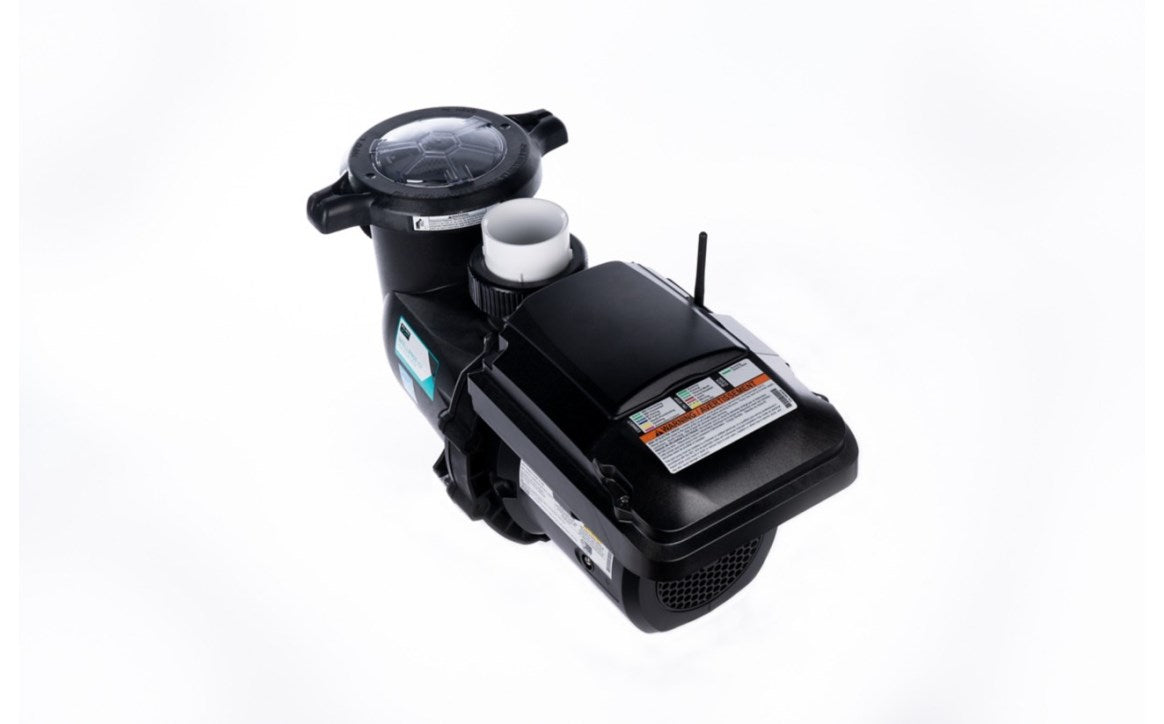

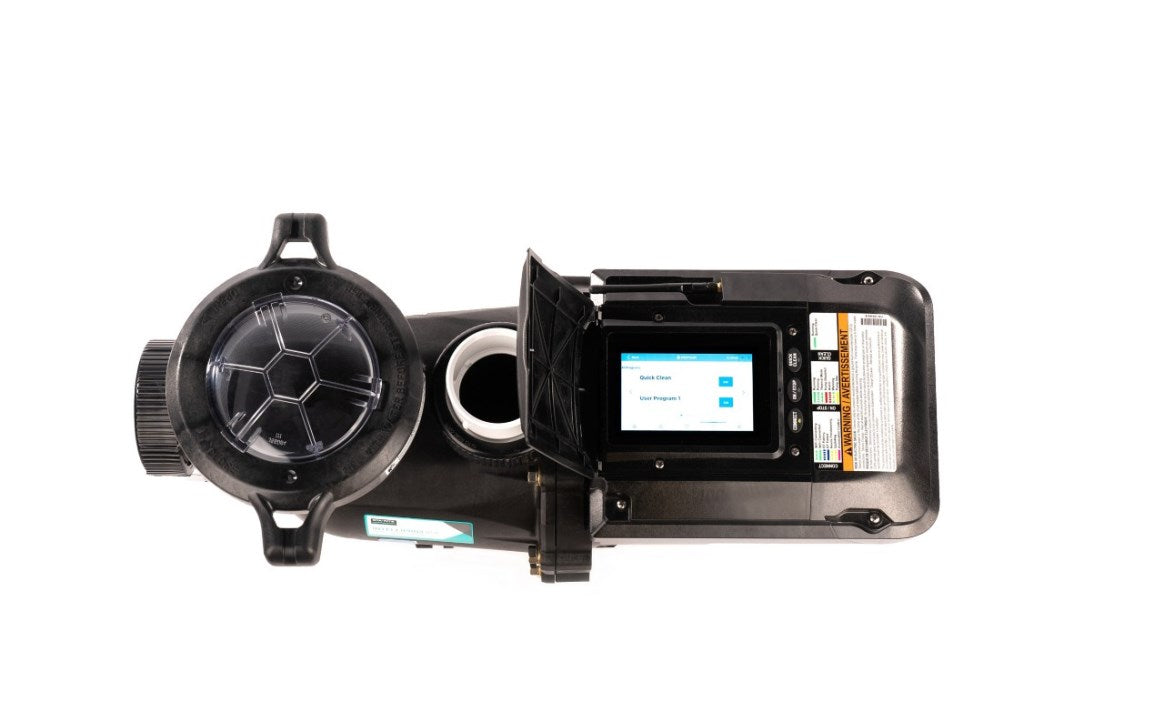

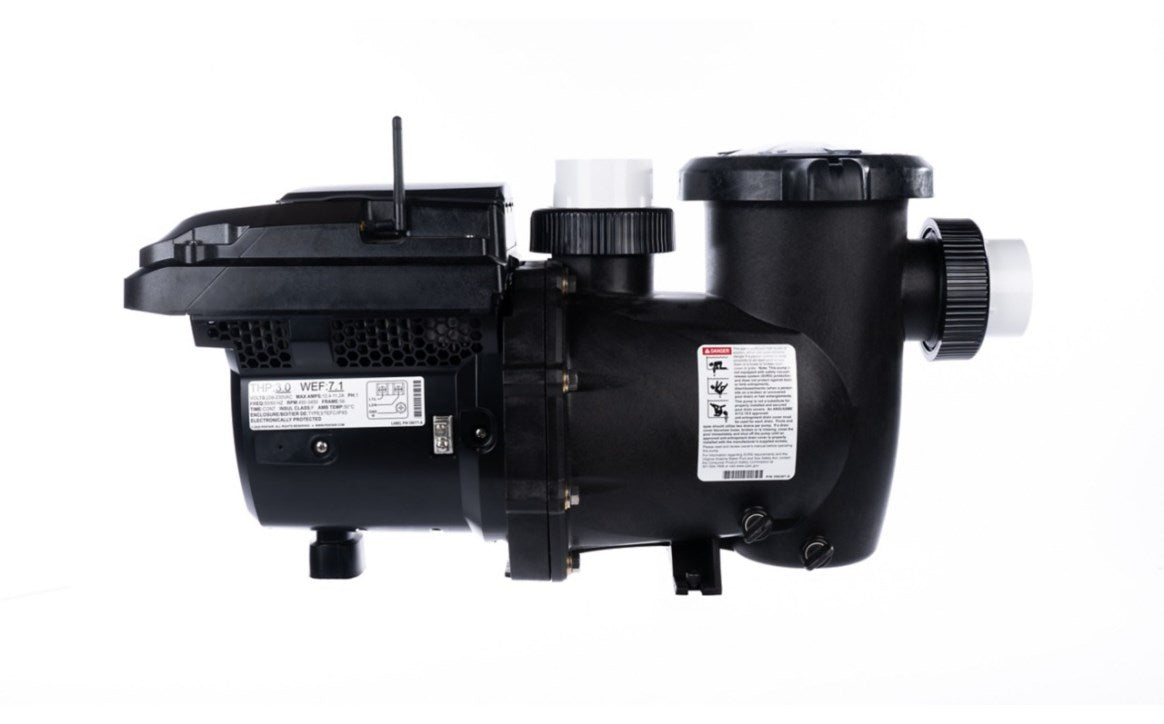

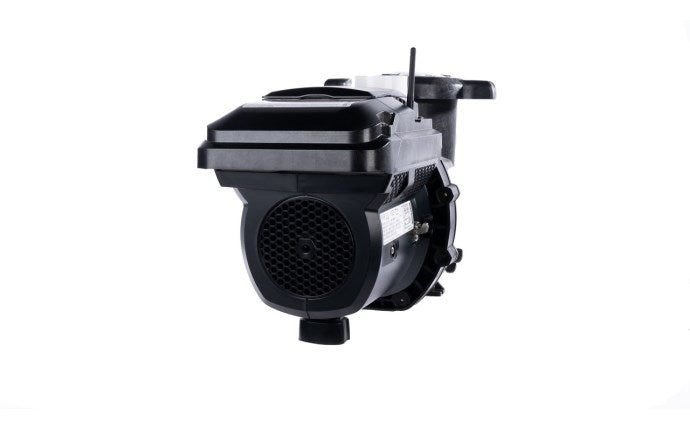

Pentair IntelliPro3® VSF Pool Pump with Relay 1.5 THP 115/208-230V
The Pentair IntelliPro3® VSF 1.5 THP Pool Pump with Relay 115/208-230V (013066) is the entry-level IntelliPro3 VSF — the Sta-Rite branded variable speed + flow pump with built-in sensorless flow control. Automatically maintains the programmed flow rate regardless of system changes. WEF 9.4 — the highest energy efficiency rating in the IntelliPro3 lineup. 20–90 GPM, relay included for automation integration. Backed by a 3-year warranty.
Key Features
WEF 9.4 — Highest IntelliPro3 Efficiency
Higher Weighted Energy Factor than the larger 3 THP model (WEF 7.1) — maximum efficiency for standard pools.
Built-In Sensorless Flow Control
Automatically maintains programmed GPM without external sensors — set a flow target, not just RPM.
1.5 THP / 20–90 GPM
Right-sized for standard residential pools — more efficient to run than the larger 3 THP model on lower-demand applications.
Relay Included / 3-Year Warranty
Automation relay included. 3-year warranty — longer than the 3 THP IntelliPro3 013076 (60 days).
115/208-230V Auto-Sensing
Flexible voltage for any standard pool electrical configuration.
Specifications
| Total HP (THP) | 1.5 THP |
| Flow Rate Range | 20–90 GPM |
| Motor Speed | Variable Speed + Flow |
| Max Working Pressure | 20 PSI |
| Weighted Energy Factor (WEF) | 9.4 |
| Voltage | 115V / 208–230V |
| Port Size | 2 in |
| Relay Board | Included |
| Product Weight | 47.5 lb |
| Shipping Dimensions | 30 × 15 × 19 in |
| Warranty | 3 Years |
What's in the Box
- Pentair IntelliPro3 VSF 1.5 THP Pump (013066)
- Relay Board
- User Manual
Warranty
The Pentair IntelliPro3 VSF 013066 comes with a 3-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
