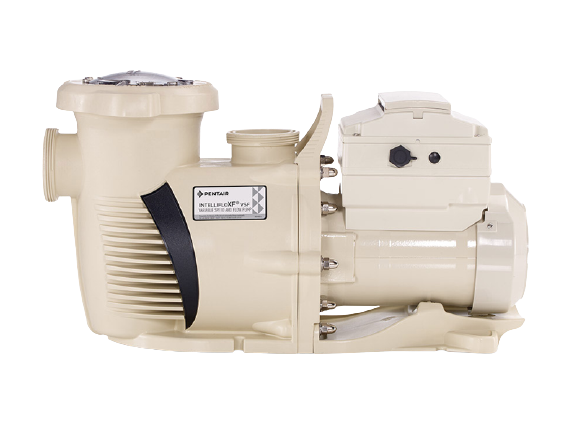

Pentair IntelliFloXF® Variable Speed Pump 3 HP 230V
The Pentair IntelliFloXF® Variable Speed & Flow Pump 3 HP 230V (022056) is the first variable speed and flow pump that automatically adjusts to changes in flow system conditions to maintain its programmed flow rate — not just its programmed RPM. Perfectly suited for large, feature-rich pools with high flow demand: water features, spillovers, spa jets, and large-volume systems that need consistent flow delivery. 3 HP / 3.95 THP, Energy Star certified. Backed by a 3-year warranty.
Key Features
Variable Speed AND Flow — Maintains Programmed GPM
Automatically adjusts to system changes (dirty filter, closed valve, etc.) to maintain the exact GPM programmed — not just RPM.
3 HP / 3.95 THP — High-Flow Capability
3,200W, 16A — built for large pools, water features, and multi-zone spa/feature systems with high flow demand.
8 Programmable Speed/Flow Settings + Timer
Built-in 8-program timer for different flow rates across filtration, feature, spa, and cleaner schedules.
2.5" or 3" Union Connectors Included
Connects directly to 2.5-inch or 3-inch plumbing — included unions simplify installation on large-pipe systems.
TEFC Motor / Rotatable Keypad
Totally Enclosed Fan-Cooled motor for extended life. Rotatable keypad and top-mounted wiring compartment for flexible installation.
Energy Star Certified / 3-Year Warranty
Green certified with Pentair's 3-year warranty.
Specifications
| Horsepower | 3 HP |
| Total HP (THP) | 3.95 THP |
| Motor Speed | Variable Speed + Flow |
| Programmable Settings | 8 Speed/Flow + Built-In Timer |
| Voltage | 230V |
| Amperage (High) | 16 A |
| Wattage (max) | 3,200 W |
| Frequency | 50/60 Hz |
| Plumbing | 2.5 in or 3 in (Union Connectors Included) |
| Motor Type | TEFC |
| Product Weight | 60 lb |
| Shipping Dimensions | 28 × 14 × 18 in |
| Certifications | Energy Star Certified |
| Warranty | 3 Years |
What's in the Box
- Pentair IntelliFloXF VSF Pump (022056)
- 2.5" and 3" Union Connectors
- User Manual
Warranty
The Pentair IntelliFloXF 022056 comes with a 3-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the IntelliFloXF compare to the IntelliFlo3 VSF?
Both are Pentair variable speed + flow pumps that maintain a programmed GPM target automatically. The IntelliFloXF is designed for larger, feature-rich pools requiring higher flow at 3 HP / 3.95 THP with 2.5"/3" plumbing connections and 8 programmable settings. The IntelliFlo3 VSF (011076) is also 3 HP but uses 2" plumbing and targets standard residential pools. Choose the IntelliFloXF for high-flow systems with water features or large pools using 2.5–3 inch pipe.
