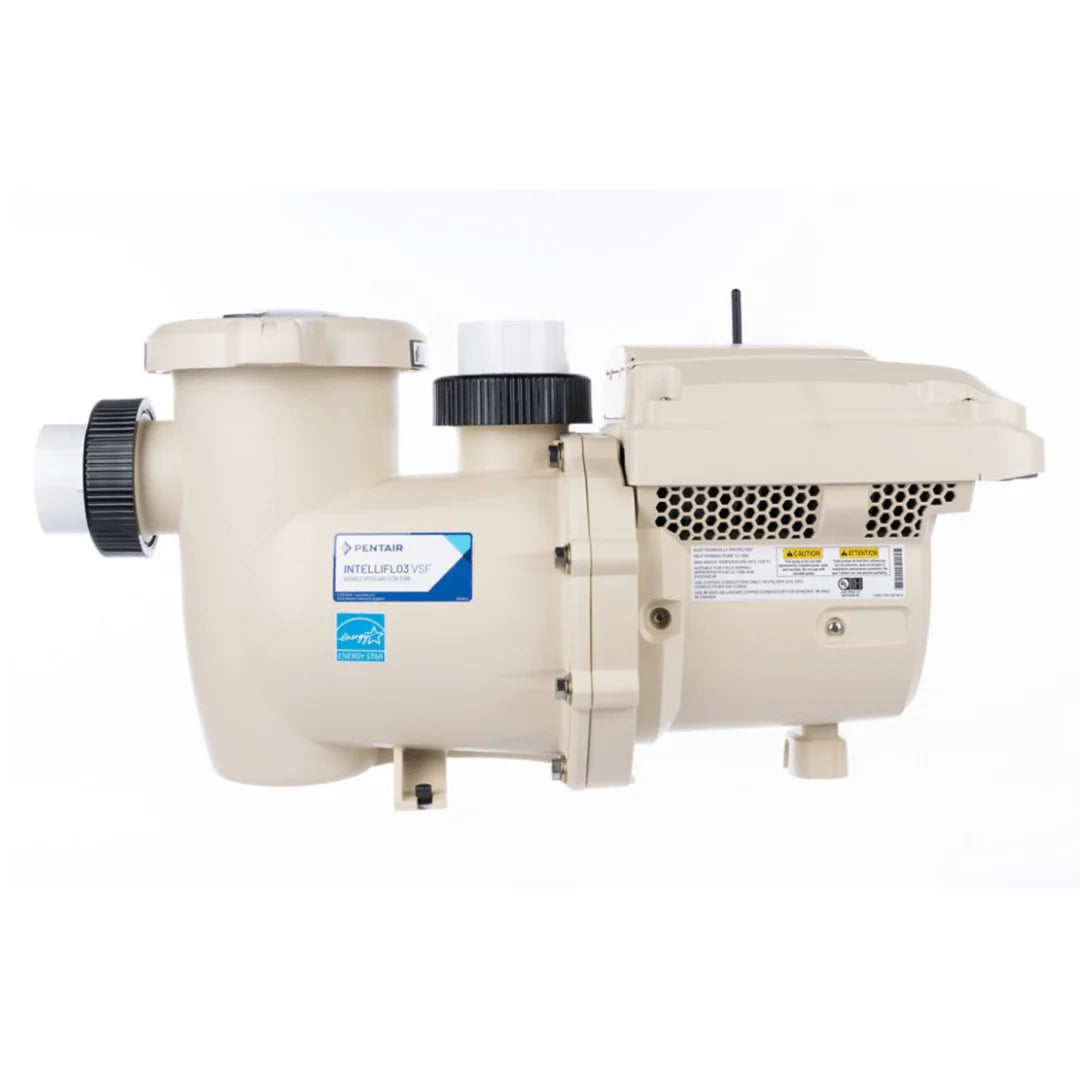

Pentair IntelliFlo3® VSF Pump with Relay Board 3 HP 208-230V
The Pentair IntelliFlo3® VSF 3 HP Variable Speed & Flow Pool Pump with Relay Board (011076) sets the new bar for pool pump performance with built-in sensorless flow control — automatically maintaining optimal flow without external sensors or manual adjustments. The IntelliFlo3 delivers the energy savings of a variable speed pump with the precision of a flow-controlled system, keeping the pool crystal clear with maximum efficiency.
3 HP, 208–230V, 20–140 GPM variable flow range, 2,590W max power draw, WEF 7.1. Relay board included for automation integration. NSF and UL certified. Backed by a 1-year warranty.
Key Features
Built-In Sensorless Flow Control
Automatically maintains the target flow rate without external sensors — the VSF advantage over standard VS pumps. Set a GPM target, not just an RPM.
3 HP / 20–140 GPM Variable Range
Wide flow range to serve filtration, spa jets, water features, and cleaners at precisely optimized speeds.
WEF 7.1 — Significant Energy Savings
High Weighted Energy Factor — variable speed operation at lower RPMs dramatically reduces energy consumption vs. single-speed pumps.
Relay Board Included
Relay board for automation system integration included in the box.
NSF and UL Certified
Meets NSF and UL safety and performance standards.

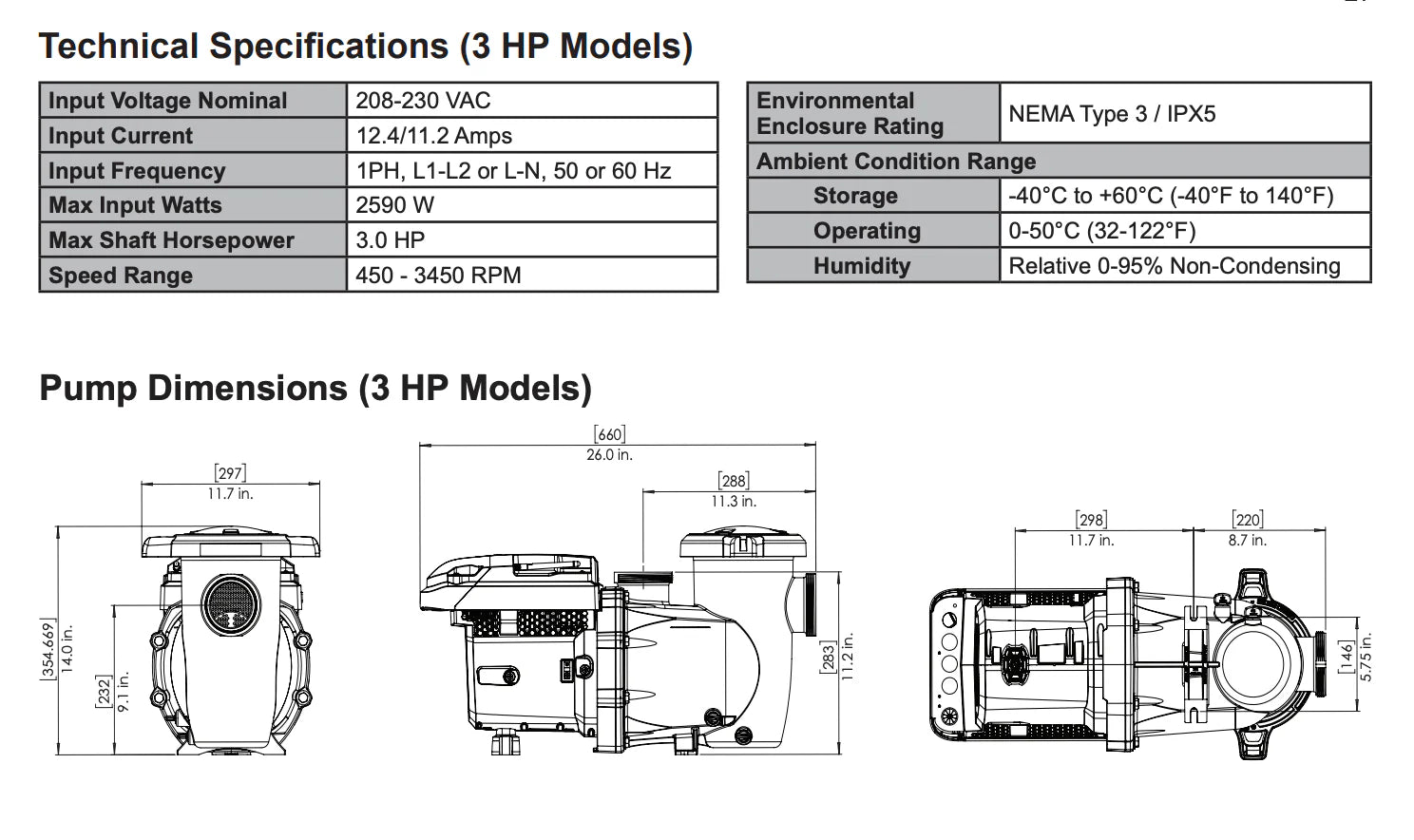

Specifications
Performance
| Horsepower | 3 HP |
| Flow Rate Range | 20–140 GPM |
| Motor Speed | Variable |
| Max Working Pressure | 30 PSI |
| Weighted Energy Factor (WEF) | 7.1 |
Electrical
| Voltage | 208–230V |
| Amperage | 12.4 A |
| Wattage (max) | 2,590 W |
| Frequency | 50/60 Hz |
| Cord Type | NEMA |
Physical
| Color | Beige |
| Product Weight | 55 lb |
| Shipping Dimensions | 30 × 17 × 18 in |
Approvals & Warranty
| Certifications | NSF Certified, UL Certified |
| Warranty | 1 Year |
What's in the Box
- Pentair IntelliFlo3 VSF Pump (011076)
- Relay Board
- User Manual
Warranty
The Pentair IntelliFlo3 VSF 011076 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
- Product Brochure (PDF)
- Install Guide (PDF)
- Operating Manual (PDF)
- Technical Manual (PDF)
- Warranty Document (PDF)
Frequently Asked Questions
What is the difference between VSF (Variable Speed + Flow) and VS (Variable Speed only)?
A standard VS pump lets you set RPM. A VSF pump lets you set a target GPM — the pump automatically adjusts its speed to maintain the exact flow rate regardless of system resistance changes (dirty filter, closed valve, etc.). This means consistent filtration turnover and more accurate chemical dosing. The IntelliFlo3 achieves this with built-in sensorless flow measurement — no external flow meter required.
