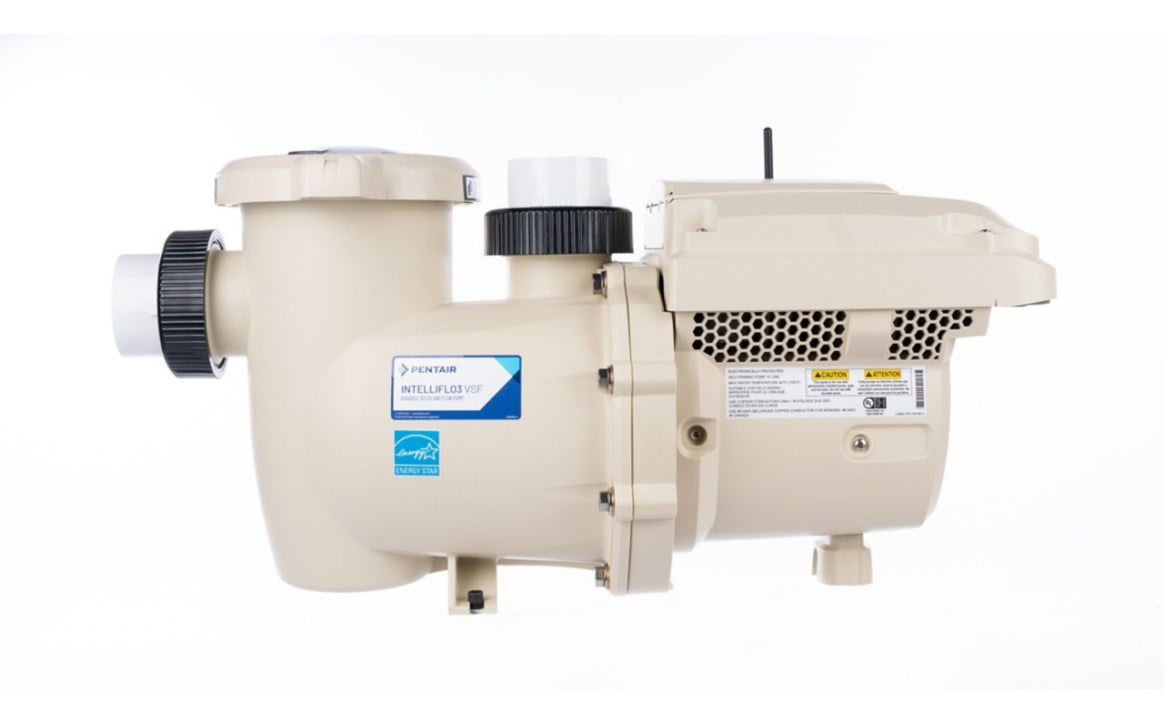

Pentair IntelliFlo3® VSF Pool Pump 3 HP 208-230V
The Pentair IntelliFlo3® VSF 3 HP Pool Pump 208-230V (011075) sets the new bar for pool pump performance with built-in sensorless flow control — automatically maintaining optimal flow without external sensors or manual adjustments. Same game-changing VSF technology as the 011076 model, without the relay board. 3 HP, 20–140 GPM variable flow range, WEF 7.1. Backed by a 1-year warranty.
Note: Relay board is not included with this model (011075). For relay board inclusion, see model 011076.
Key Features
Built-In Sensorless Flow Control
Automatically maintains the target flow rate without external sensors — set a GPM target, not just an RPM.
3 HP / 20–140 GPM Variable Range
Wide flow range for filtration, spa jets, water features, and cleaners at precisely optimized speeds.
WEF 7.1 — Significant Energy Savings
High Weighted Energy Factor — variable speed operation dramatically reduces energy vs. single-speed pumps.
208V / 230V Compatible
Works on both 208V and 230V pool electrical systems.
Specifications
| Horsepower | 3 HP |
| Flow Rate Range | 20–140 GPM |
| Motor Speed | Variable Speed + Flow |
| Max Working Pressure | 30 PSI |
| Weighted Energy Factor (WEF) | 7.1 |
| Voltage | 208V / 230V |
| Frequency | 50/60 Hz |
| Cord Type | NEMA |
| Relay Board Included | No (see 011076 for relay board model) |
| Product Weight | 55 lb |
| Shipping Dimensions | 30 × 17 × 19 in |
| Warranty | 1 Year |
What's in the Box
- Pentair IntelliFlo3 VSF Pump (011075)
- User Manual
Warranty
The Pentair IntelliFlo3 VSF 011075 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
