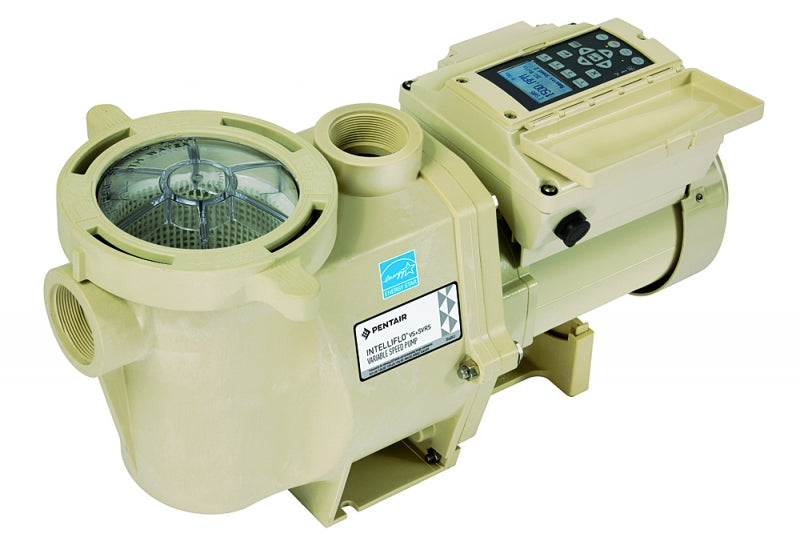

Pentair IntelliFlo® VS+SVRS Variable Speed Pump 3HP 230V
The Pentair IntelliFlo® VS+SVRS 3 HP 230V Variable Speed Pump (011057) combines the proven IntelliFlo variable speed platform with a built-in Safety Vacuum Release System — the first swimming pool pump to feature this critical safety technology. The SVRS automatically detects drain blockage and shuts the pump off, helping protect against drain entrapment. Permanent magnet motor technology (as used in hybrid vehicles) reduces pump-related energy costs by up to 90%. NSF, Energy Star, and cULus certified. Backed by a 2-year warranty.
Key Features
Built-In SVRS — Safety Vacuum Release System
Automatically detects drain blockage and shuts the pump off — the first pool pump with this built-in safety feature. Important for pools with main drains and code compliance in many jurisdictions.
Up to 90% Energy Savings
Permanent magnet variable speed motor (as used in hybrid cars) — dramatically reduces pump-related energy costs.
3 HP / 3.95 THP
3,200W, 16A at high speed — full IntelliFlo performance capability.
Onboard Digital Intelligence
Built-in programming and diagnostics for easy setup and operation.
2" NPT Port / 50/60 Hz
Standard 2-inch NPT connections, dual frequency compatible.
NSF / Energy Star / cULus / 2-Year Warranty
Triple-certified with Pentair's 2-year warranty.
Specifications
| Horsepower | 3 HP |
| Service Factor HP (THP) | 3.95 THP |
| Motor Speed | Variable |
| Safety Feature | SVRS (Safety Vacuum Release System) |
| Voltage | 230V |
| Amperage (High Speed) | 16 A |
| Wattage (max) | 3,200 W |
| Frequency | 50/60 Hz |
| Port Size | 2 in NPT |
| Product Weight | 53 lb |
| Shipping Dimensions | 28 × 12 × 17 in |
| Certifications | NSF Certified, Energy Star Certified, cULus Certified |
| Warranty | 2 Years |
What's in the Box
- Pentair IntelliFlo VS+SVRS Variable Speed Pump (011057)
- User Manual
Warranty
The Pentair IntelliFlo VS+SVRS 011057 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the SVRS and why does it matter?
The Safety Vacuum Release System (SVRS) is a safety feature required by the Virginia Graeme Baker Pool and Spa Safety Act for certain pool installations. It detects when a drain is blocked — such as when a person becomes trapped against a suction outlet — and automatically shuts off the pump to release the suction. The IntelliFlo VS+SVRS was the first pool pump to integrate this safety system directly into the pump, eliminating the need for a separate SVRS device. Consult your pool professional or local code authority to determine if SVRS is required for your installation.
