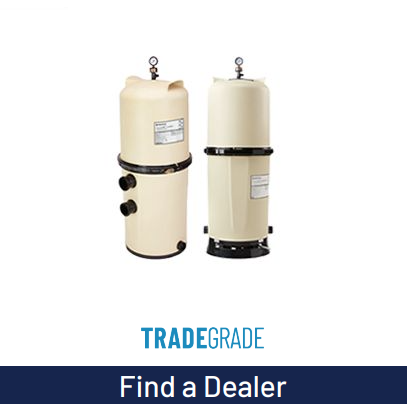

Pentair FullFloXF™ Q120 High-Efficiency Cartridge-Style D.E. Filter
The Pentair FullFloXF™ Q120 High-Efficiency Cartridge-Style D.E. Filter is part of Pentair's next-generation FullFloXF family — bringing D.E. filtration quality to a cartridge-style design for the ultimate combination of water clarity and easy maintenance. Superior filtration removes even the tiniest particles while the enhanced internal design and balanced flow deliver 25% greater energy efficiency and longer filtration cycles between cleanings. Rated for 180 GPM and pools up to 129,600 gallons (12-hour turnover).
120 sq ft cartridge-style D.E. filter, 12 lb D.E. charge, beige tank, 21.5-inch diameter. Backed by a 2-year warranty.
Key Features
D.E. Clarity + Cartridge Convenience
Cartridge-style D.E. design — finest filtration for the most sparkling-clear water with easy cartridge-style maintenance.
180 GPM High Flow
Rated for 180 GPM — handles pools up to 129,600 gallons at 12-hour turnover.
25% More Energy Efficient
Enhanced internal design and balanced flow deliver up to 25% greater energy efficiency for lower operating cost.
Longer Filtration Cycles
Extended periods between cleanings for low-maintenance ownership.
Superior Particle Removal
D.E. filtration removes even the tiniest particles — crystal-clear water at the highest standard.
2-Year Warranty
Pentair residential warranty — longer than the FullFloXF C620 cartridge (1 year).
Who It's For
- Pool owners who want D.E. water clarity with cartridge-style maintenance convenience
- Large residential pools up to 129,600 gallons needing 180 GPM high-efficiency filtration
- Anyone who wants the latest Pentair FullFloXF technology in a D.E. cartridge design
- Pentair system users wanting maximum filtration quality in a compact, high-flow package
Specifications
Performance
| Filtration Area | 120 sq ft |
| Filter Type | Cartridge-Style D.E. |
| Max Flow Rate | 180 GPM |
| D.E. Required | 12 lb |
| Energy Efficiency | Up to 25% More Efficient vs. Prior Generation |
| Pool Size (8-hr turnover) | Up to 86,400 gallons |
| Pool Size (10-hr turnover) | Up to 108,000 gallons |
| Pool Size (12-hr turnover) | Up to 129,600 gallons |
Tank
| Tank Color | Beige |
| Tank Diameter | 21.5 in |
| Vertical Clearance Required | 76 in |
Physical
| Product Weight | 102 lb |
| Shipping Dimensions | 23 × 23 × 53 in |
Approvals & Warranty
| Warranty | 2 Years |
What's in the Box
- Pentair FullFloXF Q120 D.E. Filter Tank
- D.E. Cartridge Elements
- User Manual
Note: Diatomaceous earth (12 lb) is not included and must be purchased separately.
Warranty
The Pentair FullFloXF Q120 comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the FullFloXF Q120 D.E. compare to the FullFloXF C620 cartridge?
Both are Pentair FullFloXF filters with up to 25% energy efficiency improvement. The C620 is a pure cartridge filter at 620 sq ft / 150 GPM with a 1-year warranty. The Q120 is a cartridge-style D.E. filter at 120 sq ft / 180 GPM with a 2-year warranty and D.E. media requirement. The Q120 delivers D.E.-level filtration (finer particle removal) while the C620 offers maximum cartridge area and longer cleaning intervals without D.E. powder.
How much D.E. is needed and when is it added?
The FullFloXF Q120 requires 12 lb of D.E. powder at initial startup and after each cleaning cycle. Add D.E. through the skimmer while the pump is running — it flows through the plumbing and coats the filter elements. Always use pool-grade diatomaceous earth.
