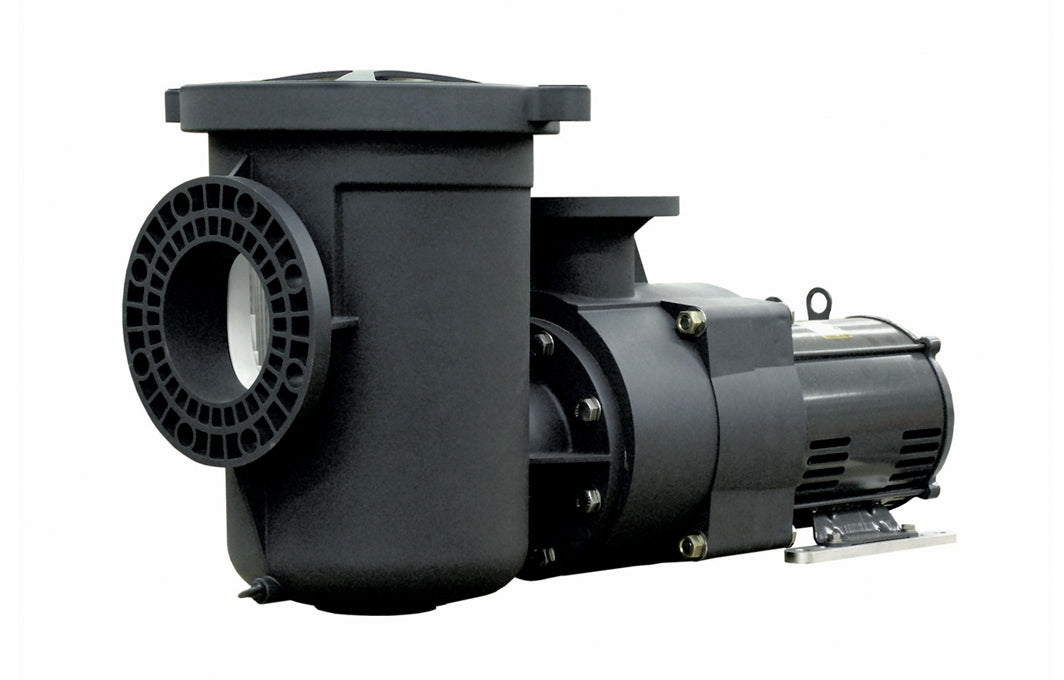

Pentair EQ Series® Commercial Pump 7.5 HP 575V
The Pentair EQ Series® 7.5 HP Commercial Pool Pump 575V 3-Phase (340149) is the 575V variant of the EQ Series commercial pump — built specifically for facilities running high-voltage 3-phase electrical systems. Same extraordinary electrical and hydraulic efficiency, NEMA-rated premium motor, and non-corrosive plastic construction as the standard EQ Series, with compatibility for 575V systems. Acu Drive™ XS VFD compatible. Drop-in replacement for C Series® and CSP Series™ pumps. Backed by a 1-year warranty.
Note: 3-phase 575V pump. Professional installation required.
Key Features
575V 3-Phase Operation
Built for facilities with 575V high-voltage 3-phase electrical service — the EQ Series variant for Canadian and specialized commercial electrical systems.
NEMA Premium Grade Efficiency Motor
Extraordinary electrical and hydraulic efficiency — lower operating costs, quiet operation.
Acu Drive™ XS VFD Compatible
Works with Pentair Acu Drive XS variable frequency drives for variable speed control.
Drop-In C Series / CSP Series Replacement
Direct replacement for legacy C Series and CSP Series commercial pumps.
Cam and Ramp™ Lid / Non-Corrosive Plastic
Commercial-grade non-corrosive plastic parts, self-priming with hair and lint strainer, easy serviceability.
1-Year Warranty
Pentair commercial warranty.
Specifications
| Horsepower | 7.5 HP |
| Service Factor HP | 8.63 SF HP |
| Motor Speed | Single Speed |
| Phase | Three Phase |
| Voltage | 575V |
| Amperage | 7.2 A |
| Material | Non-Corrosive Commercial-Grade Plastic |
| Product Weight | 93 lb |
| Shipping Dimensions | 22 × 29.5 × 36 in |
| Warranty | 1 Year |
What's in the Box
- Pentair EQ Series 7.5 HP 575V Commercial Pump (340149)
- User Manual
Warranty
The Pentair EQ Series 340149 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
