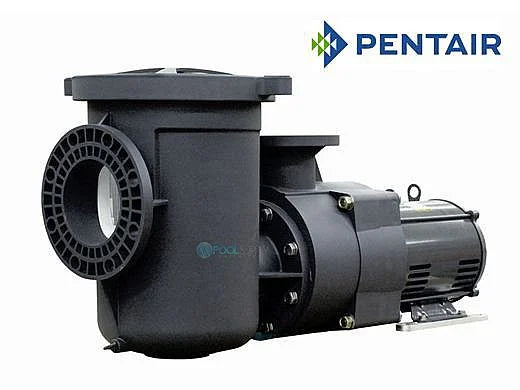

Pentair EQ Series® Commercial Pump 7.5 HP 208-230/460V
The Pentair EQ Series® 7.5 HP Commercial Pool Pump 208-230/460V (340605) is built specifically for commercial and large residential pools — delivering extraordinary electrical and hydraulic efficiency in a heavy-duty 3-phase platform. NEMA-rated premium grade efficiency motor, non-corrosive commercial-grade plastic parts, and Cam and Ramp™ see-through lid. Drop-in replacement for C Series® and CSP Series™ pumps. Compatible with Pentair Acu Drive™ XS variable frequency drives. Backed by a 1-year warranty.
Note: This is a 3-phase pump requiring 208-230/460V 3-phase electrical service. Professional installation required.
Key Features
NEMA Premium Grade Efficiency Motor
Extraordinary electrical and hydraulic efficiency — low electrical costs, less wear on moving parts, quiet operation.
7.5 HP 3-Phase / 208-230/460V
High-capacity commercial 3-phase power for the largest pools and aquatic facilities.
Acu Drive™ XS VFD Compatible
3-phase models work with Pentair Acu Drive XS variable frequency drives for variable speed control on commercial systems.
Drop-In C Series / CSP Series Replacement
Direct drop-in replacement for legacy C Series and CSP Series commercial pumps.
Non-Corrosive Commercial-Grade Plastic Parts
Cam and Ramp™ see-through lid, self-priming with hair and lint strainer, easy cleaning and serviceability.
1-Year Warranty
Pentair commercial warranty.
Specifications
| Horsepower | 7.5 HP |
| Service Factor HP | 9.38 SF HP |
| Motor Speed | Single Speed |
| Phase | Three Phase |
| Voltage | 208V / 230V / 460V |
| Amperage | 19.9 A (208-230V) / 8.9 A (460V) |
| Motor | NEMA Premium Grade Efficiency |
| Material | Non-Corrosive Commercial-Grade Plastic |
| Product Weight | 190 lb |
| Shipping Dimensions | 23 × 32 × 39 in |
| Warranty | 1 Year |
What's in the Box
- Pentair EQ Series 7.5 HP Commercial Pump (340605)
- User Manual
Warranty
The Pentair EQ Series 340605 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
