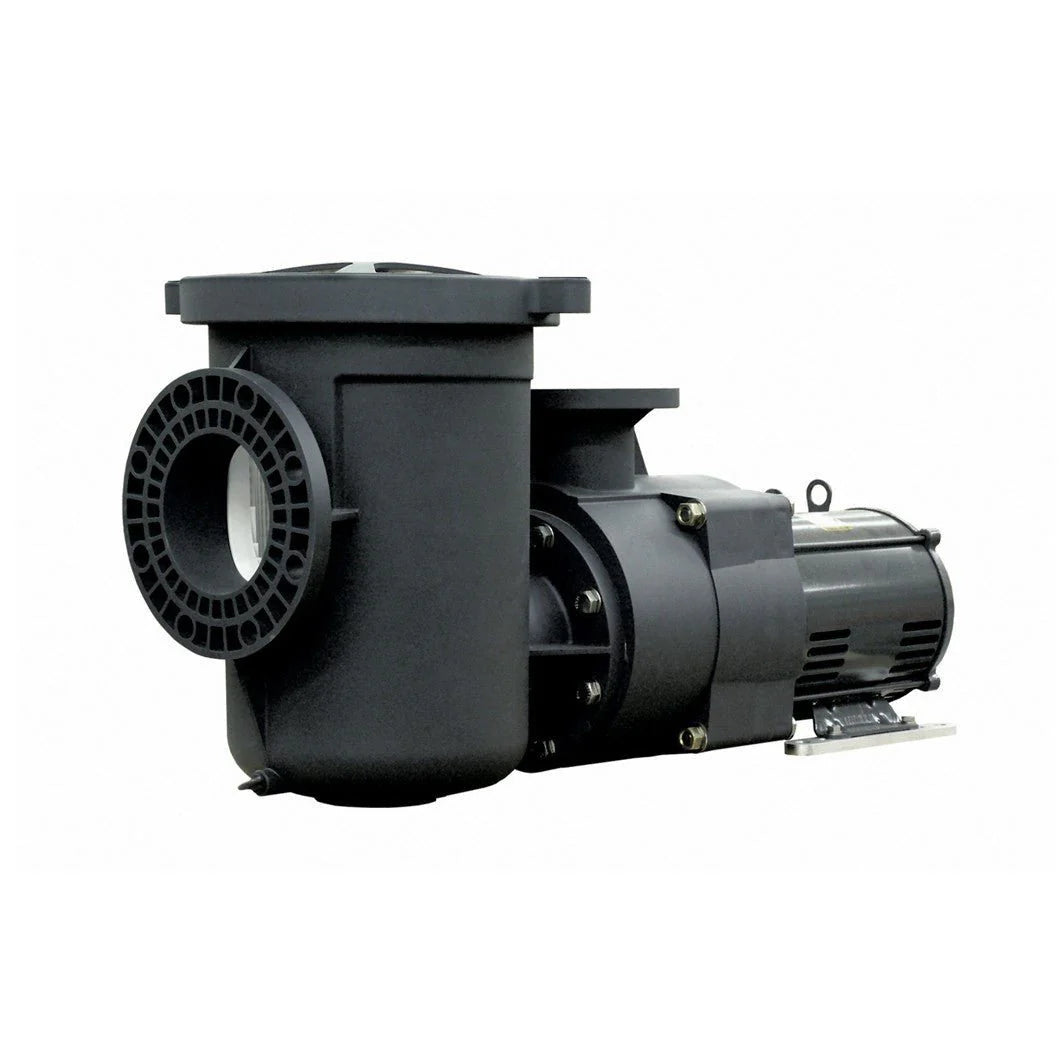

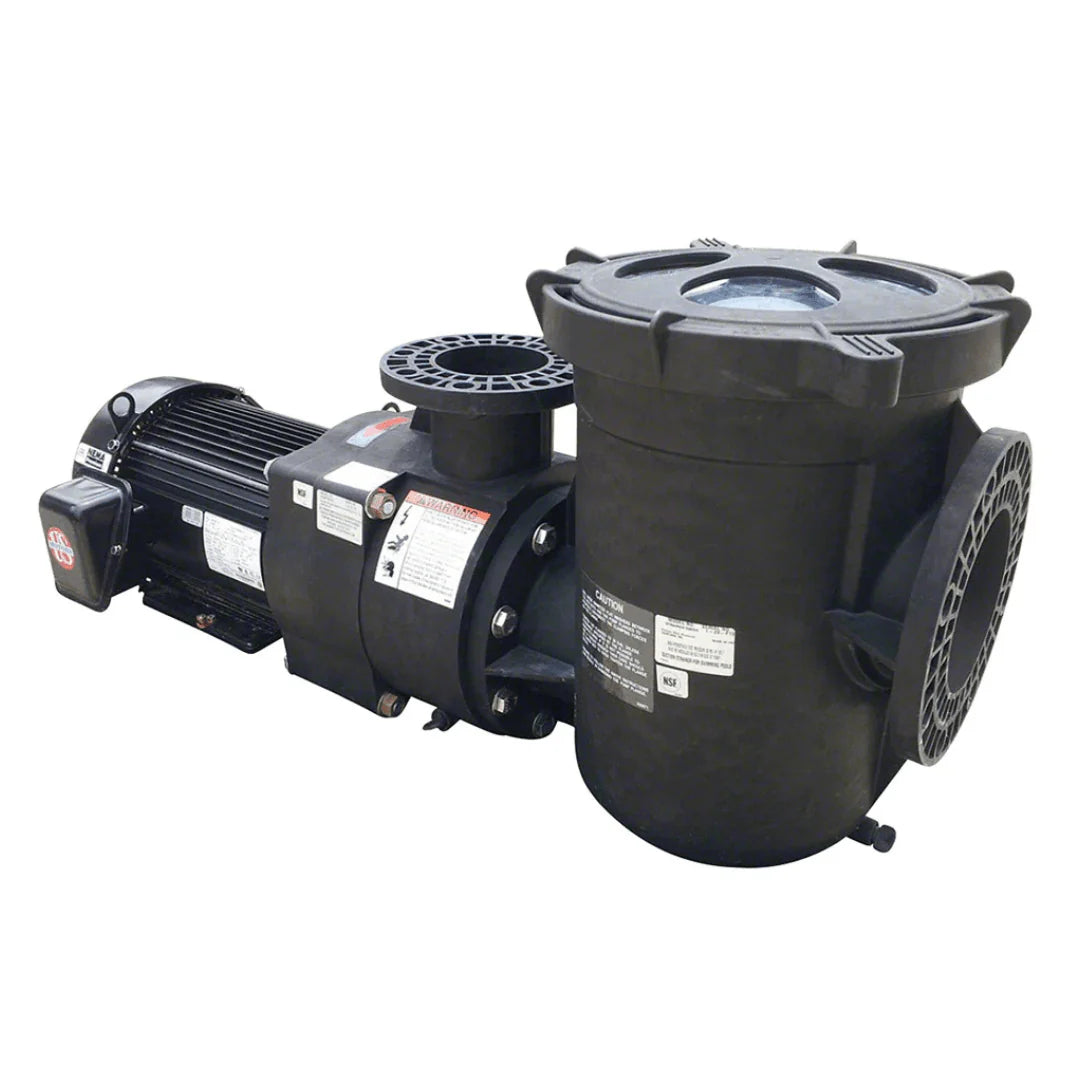

Pentair EQ Series® Commercial Pump 15 HP 208-230/460V
The Pentair EQ Series® 15 HP Commercial Pool Pump 208-230/460V (340607) is built specifically for commercial and large residential pools — delivering extraordinary electrical and hydraulic efficiency with a TEFC motor, NEMA-rated premium grade efficiency, and non-corrosive commercial-grade plastic construction. 3-phase, 39A at 208-230V / 18A at 460V. Compatible with Pentair Acu Drive™ XS variable frequency drives. Drop-in replacement for C Series® and CSP Series™ pumps. Backed by a 1-year warranty.
Note: 3-phase pump requiring 208-230/460V 3-phase electrical service. Freight shipping — contact us for a freight quote before ordering. Professional installation required.
Key Features
15 HP TEFC / SF 1.25 (18.75 SF HP)
Higher service factor than the 340035 model — 18.75 SF HP vs. 17.25, for installations requiring additional headroom.
NEMA Premium Grade Efficiency Motor
Extraordinary electrical and hydraulic efficiency — low electrical costs, less wear on moving parts, quiet operation.
Acu Drive™ XS VFD Compatible
Works with Pentair Acu Drive XS variable frequency drives for variable speed control on commercial systems.
Drop-In C Series / CSP Series Replacement
Direct replacement for legacy C Series and CSP Series commercial pumps.
Cam and Ramp™ See-Through Lid / Easy Service
Non-corrosive commercial-grade plastic parts, self-priming with hair and lint strainer, easy cleaning and serviceability.
1-Year Warranty
Pentair commercial warranty.
Specifications
| Horsepower | 15 HP |
| Service Factor HP | 18.75 SF HP |
| Motor Type | TEFC (Totally Enclosed Fan Cooled) |
| Phase | Three Phase |
| Voltage | 208V / 230V / 460V |
| Amperage | 39 A (208-230V) / 18 A (460V) |
| Material | Non-Corrosive Commercial-Grade Plastic |
| Product Weight | 235 lb |
| Shipping Dimensions | 23 × 32 × 39 in |
| Warranty | 1 Year |
What's in the Box
- Pentair EQ Series 15 HP Commercial Pump (340607)
- User Manual
Warranty
The Pentair EQ Series 340607 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
