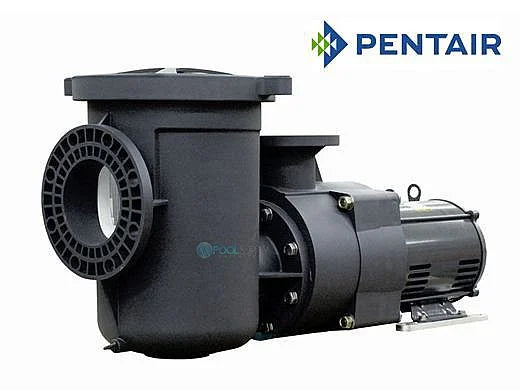

Pentair EQ Series® Commercial Pump 15 HP 208-230/460V
The Pentair EQ Series® 15 HP Commercial Waterfall Pump 208-230/460V (340035) is the highest-capacity pump in the EQ Series — built specifically for commercial pools, large residential applications, and waterfall/high-flow installations. NEMA-rated premium grade efficiency motor delivers extraordinary electrical and hydraulic efficiency with low electrical costs and quiet operation. 3-phase, 40A at 208-230V / 17.8A at 460V, 235 lb. Compatible with Pentair Acu Drive™ XS variable frequency drives. Backed by a 1-year warranty.
Note: This is a 3-phase pump requiring 208-230/460V 3-phase electrical service. Freight shipping — contact us for a freight quote before ordering. Professional installation required.
Key Features
15 HP — Maximum EQ Series Capacity
Largest EQ Series model — for the highest-demand commercial pools, water parks, and large waterfall/feature systems.
NEMA Premium Grade Efficiency Motor
Extraordinary electrical and hydraulic efficiency — lower electrical costs, less wear on moving parts, quiet operation.
Waterfall Model — Low Head, High Flow
Designed for waterfall and high-flow applications where low resistance and maximum volume are priorities.
Acu Drive™ XS VFD Compatible
Works with Pentair Acu Drive XS variable frequency drives for variable speed control in commercial systems.
Drop-In C Series / CSP Series Replacement
Direct replacement for C Series and CSP Series commercial pumps.
Cam and Ramp™ See-Through Lid / Easy Service
Non-corrosive commercial-grade plastic parts, self-priming with hair and lint strainer, easy cleaning.
Specifications
| Horsepower | 15 HP |
| Service Factor HP | 17.25 SF HP |
| Motor Speed | Single Speed |
| Phase | Three Phase |
| Voltage | 208V / 230V / 460V |
| Amperage | 40 A (208-230V) / 17.8 A (460V) |
| Motor | NEMA Premium Grade Efficiency |
| Material | Non-Corrosive Commercial-Grade Plastic |
| Product Weight | 235 lb |
| Shipping Dimensions | 22 × 29.5 × 36 in |
| Warranty | 1 Year |
What's in the Box
- Pentair EQ Series 15 HP Commercial Waterfall Pump (340035)
- User Manual
Warranty
The Pentair EQ Series 340035 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
