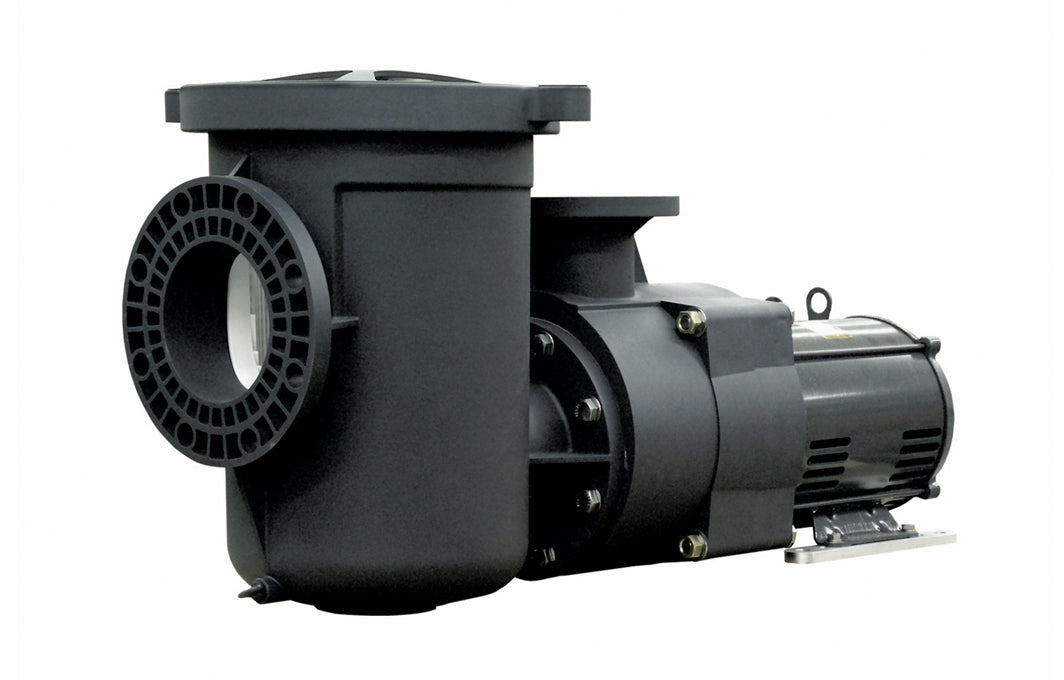

Pentair EQ Series® Commercial Pump 10 HP 230V
The Pentair EQ Series® 10 HP Commercial Pool Pump 230V Single-Phase (340238) is built specifically for commercial and large residential pools — delivering extraordinary electrical and hydraulic efficiency with a NEMA-rated premium grade motor and non-corrosive commercial-grade plastic construction. 10 HP single-phase, 230V, 40A. Acu Drive™ XS VFD compatible. Drop-in replacement for C Series® and CSP Series™ pumps. Backed by a 1-year warranty.
Note: Single-phase 230V, 260 lb — freight shipping required. Contact us for a freight quote before ordering. Professional installation required.
Key Features
10 HP Single-Phase 230V
High-capacity single-phase commercial pump — no 3-phase electrical service required at this power level.
NEMA Premium Grade Efficiency Motor
Extraordinary electrical and hydraulic efficiency — lower operating costs, quiet operation, reduced wear.
Acu Drive™ XS VFD Compatible
Works with Pentair Acu Drive XS variable frequency drives for variable speed control.
Drop-In C Series / CSP Series Replacement
Direct replacement for legacy C Series and CSP Series commercial pumps.
Cam and Ramp™ Lid / Non-Corrosive Plastic
Commercial-grade non-corrosive plastic, self-priming with hair and lint strainer, easy serviceability.
1-Year Warranty
Pentair commercial warranty.
Specifications
| Horsepower | 10 HP |
| Service Factor HP | 11.5 SF HP |
| Motor Speed | Single Speed |
| Phase | Single Phase |
| Voltage | 230V |
| Amperage | 40 A |
| Material | Non-Corrosive Commercial-Grade Plastic |
| Product Weight | 260 lb |
| Shipping Dimensions | 22 × 29.5 × 36 in |
| Warranty | 1 Year |
What's in the Box
- Pentair EQ Series 10 HP Commercial Pump (340238)
- User Manual
Warranty
The Pentair EQ Series 340238 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
