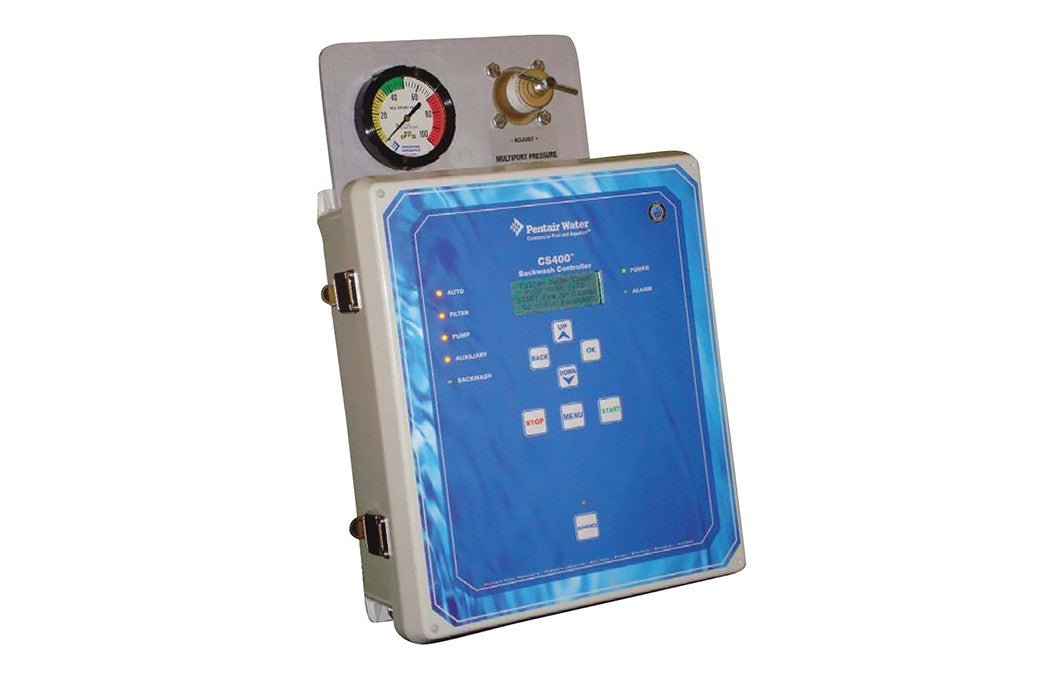

Pentair CS400™ Semi-Automatic Backwash Controller for 5-Tank Systems
The Pentair CS400™ Semi-Automatic Backwash Controller for 5-Tank Systems simplifies the backwash cycle of Stark™ and THS Series® commercial filtration systems equipped with diaphragm-valve face piping kits. With Acu-Trol® Intelligence, this programmable controller can backwash up to six filters in sequence via an integral multi-port pressure distribution valve — saving water, energy, and operator time on every backwash cycle.
A backwash can be initiated three ways: single-touch semi-automatic button, external signal from a master controller such as the Acu-Trol AK600, or an optional differential pressure switch for automatic backwash functionality. Features user-configurable settings, automatic calculated backwash cycle time, stored backwash data and history, alarms, heater cool-down (Fireman's delay), and valve control for pump and heater protection. Compatible with Acu-Trol AcuPort™ for network connectivity.
Key Features
Three Backwash Initiation Modes
Single-touch semi-automatic, external signal from AK600 master controller, or optional differential pressure switch for basic automatic operation.
Up to 6 Filters in Sequence
Integral multi-port pressure distribution valve actuates diaphragm-style backwash valves using city water pressure or compressed air — up to 6 filters per cycle.
"Advance" Feature — Water and Energy Savings
Skips unnecessary backwash cycles — one of the most eco-friendly commercial backwash controllers on the market.
Acu-Trol® Intelligence
Automatic calculated backwash cycle time, stored backwash data and history, user-configurable settings, and alarms.
Heater Cool-Down (Fireman's Delay)
Valve control ensures pump and heater protection prior to backwash cycle start — standard safety sequence.
Network Connectivity
Connect to networks via optional Acu-Trol AcuPort™. Compatible with Acu-Trol AK600 multi-body water chemistry and pump room controller.
LCD Display
Clear LCD interface for programming, monitoring, and alarm status.
Compatible with Stark™ and THS® Filters
Designed for Stark™ and THS Series® filtration systems with diaphragm-style backwash valves.
Who It's For
- Commercial aquatic facilities operating Stark™ or THS Series® filter systems with diaphragm-valve piping kits
- Filter rooms with up to 6 filters requiring automated or semi-automated backwash sequencing
- Operations integrating with Acu-Trol AK600 master controllers or AcuPort™ network systems
- Facilities seeking to reduce backwash water consumption and energy costs through intelligent cycle management
Specifications
Controller
| Max Filters Supported | Up to 6 in sequence |
| Compatible Filters | Stark™ and THS Series® with diaphragm-valve face piping kits |
| Backwash Initiation | Semi-auto (button), external signal (AK600), differential pressure switch (optional) |
| Valve Actuation | City water pressure or compressed air |
| Display | LCD |
| Color | Blue |
Physical
| Product Weight | 25 lb |
| Shipping Dimensions | 18 × 20 × 24 in |
Warranty
| Warranty | 60 Days |
Warranty
The Pentair CS400 Backwash Controller comes with a 60-day manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Frequently Asked Questions
What is the difference between semi-automatic and automatic backwash?
The CS400 is a semi-automatic controller — a backwash cycle requires a human action to initiate (pressing the button or receiving an external signal). With an optional differential pressure switch added, the controller can trigger automatically when filter pressure rises to a set threshold, providing basic automatic backwash functionality without full automation equipment.
Is this compatible with all commercial filter systems?
No. The CS400 is specifically designed for Pentair Stark™ and THS Series® filtration systems equipped with diaphragm-valve face piping kits. It is not compatible with other filter types or brands. Confirm your filter system's piping kit configuration before ordering.
