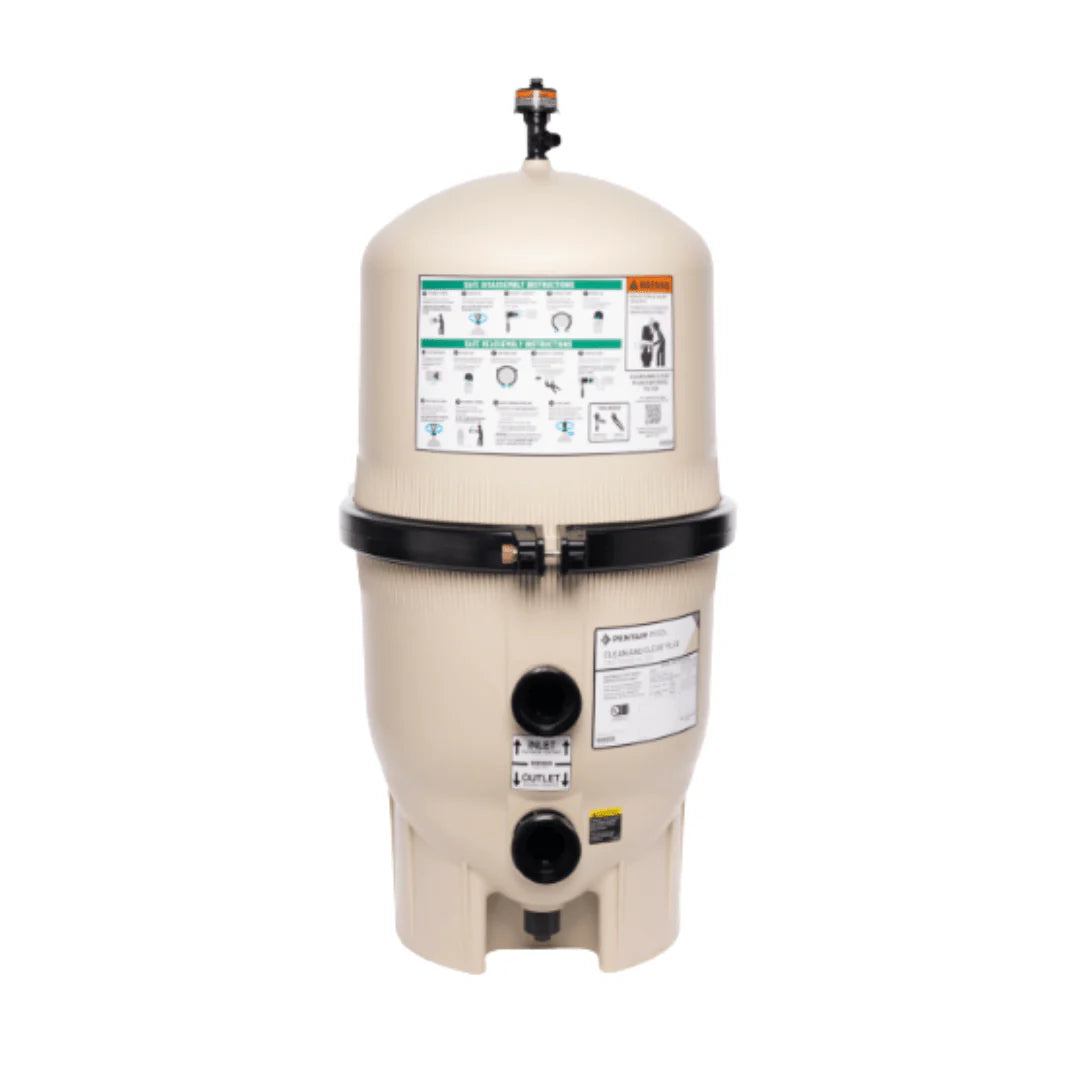

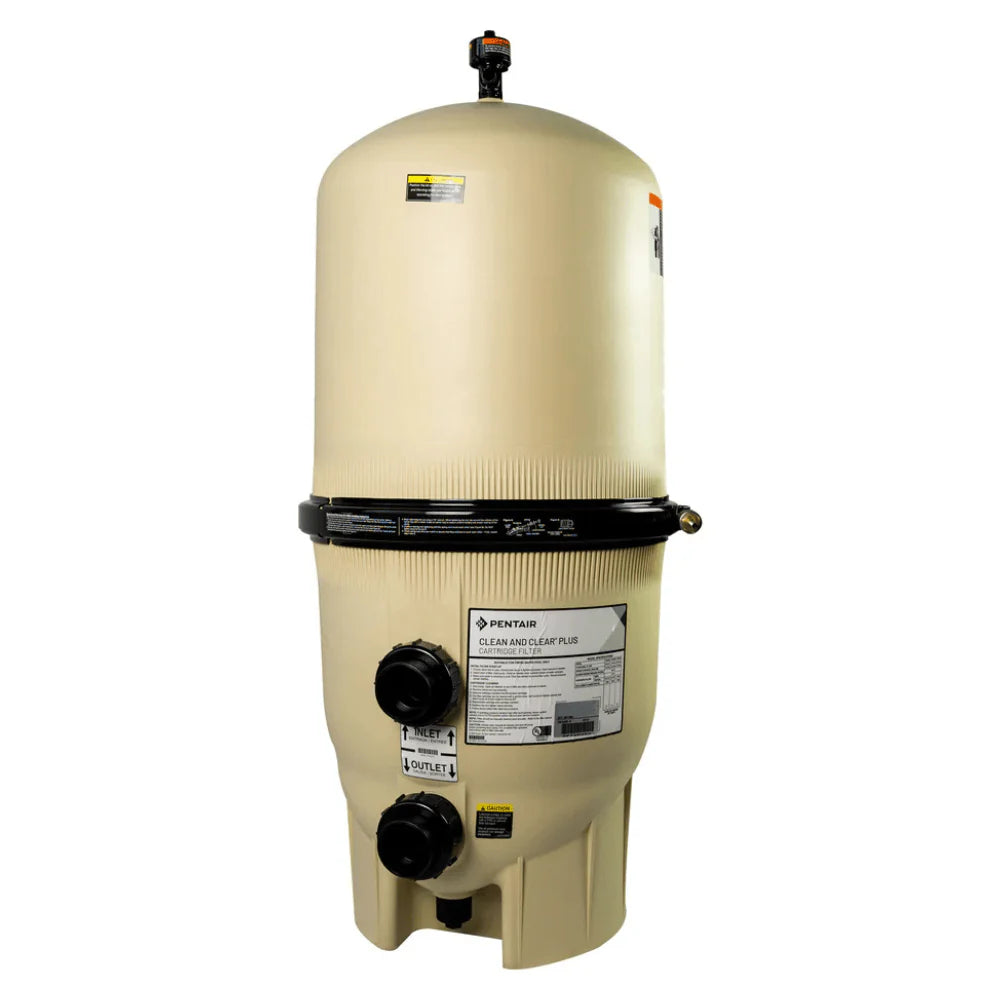

Pentair Clean & Clear® Plus 520 Sq Ft Cartridge Filter EC-160332

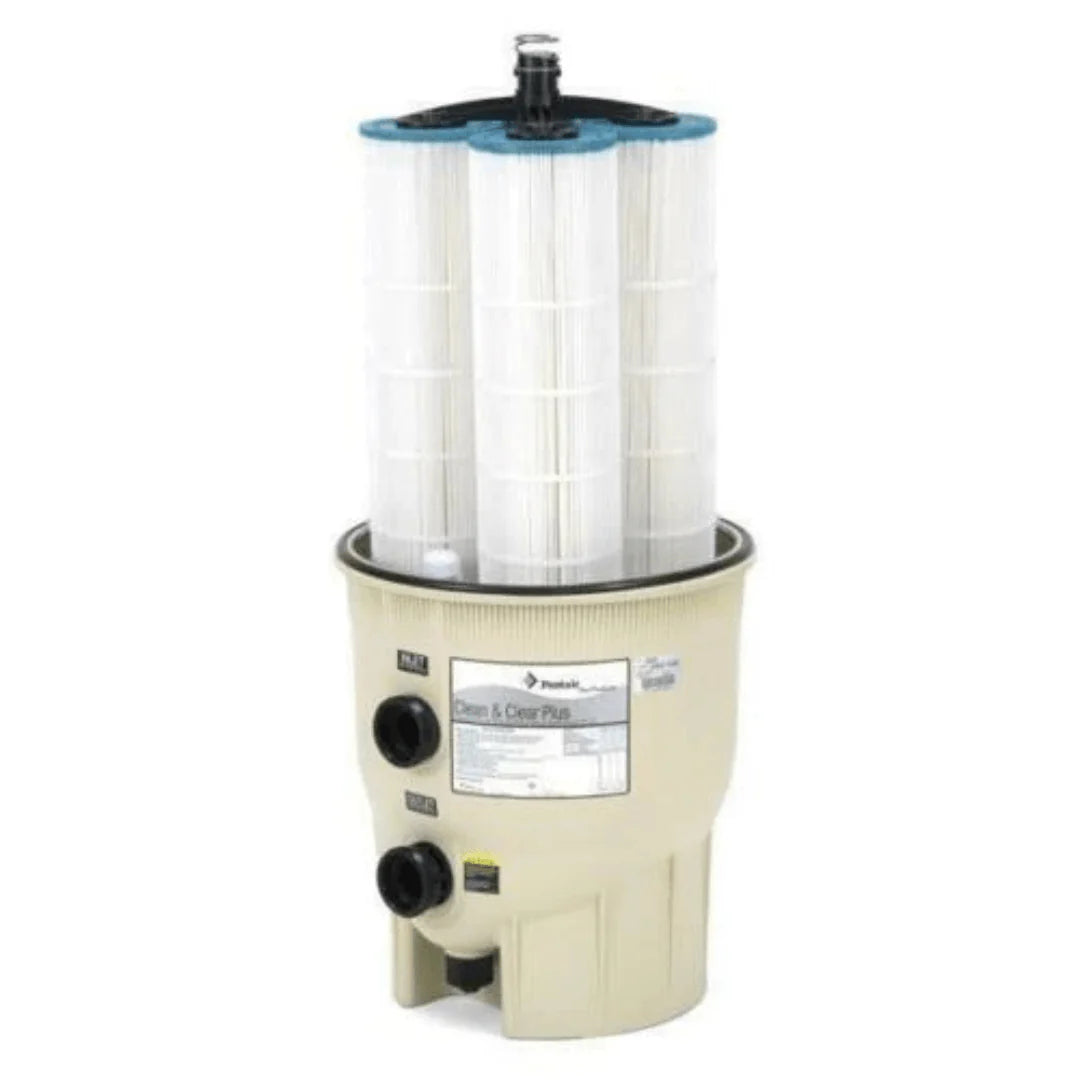

The Pentair Clean & Clear® Plus 520 Sq Ft Cartridge Filter (EC-160332) features a corrosion-resistant injection-molded fiberglass-reinforced polypropylene tank with four nonwoven polyester cartridges totaling 520 sq ft. No backwashing needed — simply remove the cartridges and rinse with a garden hose. Rated for 150 GPM and pools up to 108,000 gallons (12-hour turnover).
Features Continuous High Flow™ internal air relief, balanced hydraulic flow, 100% drain clean-out port, and durable injection-molded tank construction. Backed by a 1-year warranty.
Key Features
520 Sq Ft / Four Cartridges — No Backwashing
Large filter area for maximum dirt capacity and extended service intervals.
150 GPM / 108,000 Gallon Pool Coverage
Handles pools up to 108,000 gallons at 12-hour turnover.
Fiberglass-Reinforced Polypropylene Tank
Corrosion-resistant injection-molded construction for superior strength and reliability.
Continuous High Flow™ Internal Air Relief
Integrated automatic air relief for consistent operation.
Balanced Hydraulic Flow
Even flow distribution across all four cartridges for uniform filtration performance.
100% Drain Clean-Out Port
Complete tank drainage for maintenance and winterization.
Who It's For
- Pool owners who want the Clean & Clear Plus platform at maximum 520 sq ft capacity
- Large pools up to 108,000 gallons requiring 150 GPM cartridge filtration with the longest cleaning intervals in the CCP line
- Anyone who wants the EC-160332 variant specifically
Specifications
Performance
| Filtration Area | 520 sq ft |
| Max Flow Rate | 150 GPM |
| Cartridges | 4 (Nonwoven Polyester) |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Product Height | 56 in |
| Vertical Clearance Required | 74 in |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 22.5 × 22.5 × 50.5 in |
Warranty
| Warranty | 1 Year |
What's in the Box
- Pentair Clean & Clear Plus Filter Tank (EC-160332)
- Four Nonwoven Polyester Cartridge Elements
- User Manual
Warranty
The Pentair Clean & Clear Plus EC-160332 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the EC-160332 (520 sq ft) compare to the EC-160301 (420 sq ft)?
Both are Clean & Clear Plus four-cartridge filters at 150 GPM covering pools up to 108,000 gallons. The EC-160332 has 100 sq ft more filter area — holding more dirt before cleaning is needed and extending service intervals further. It ships taller (50.5 in vs. 44.5 in) and weighs slightly more (83 lb vs. 75 lb). Choose the EC-160332 for the absolute maximum CCP capacity and longest cleaning intervals.
