Pentair Clean & Clear® Plus 420 Sq Ft Cartridge Filter EC-160301

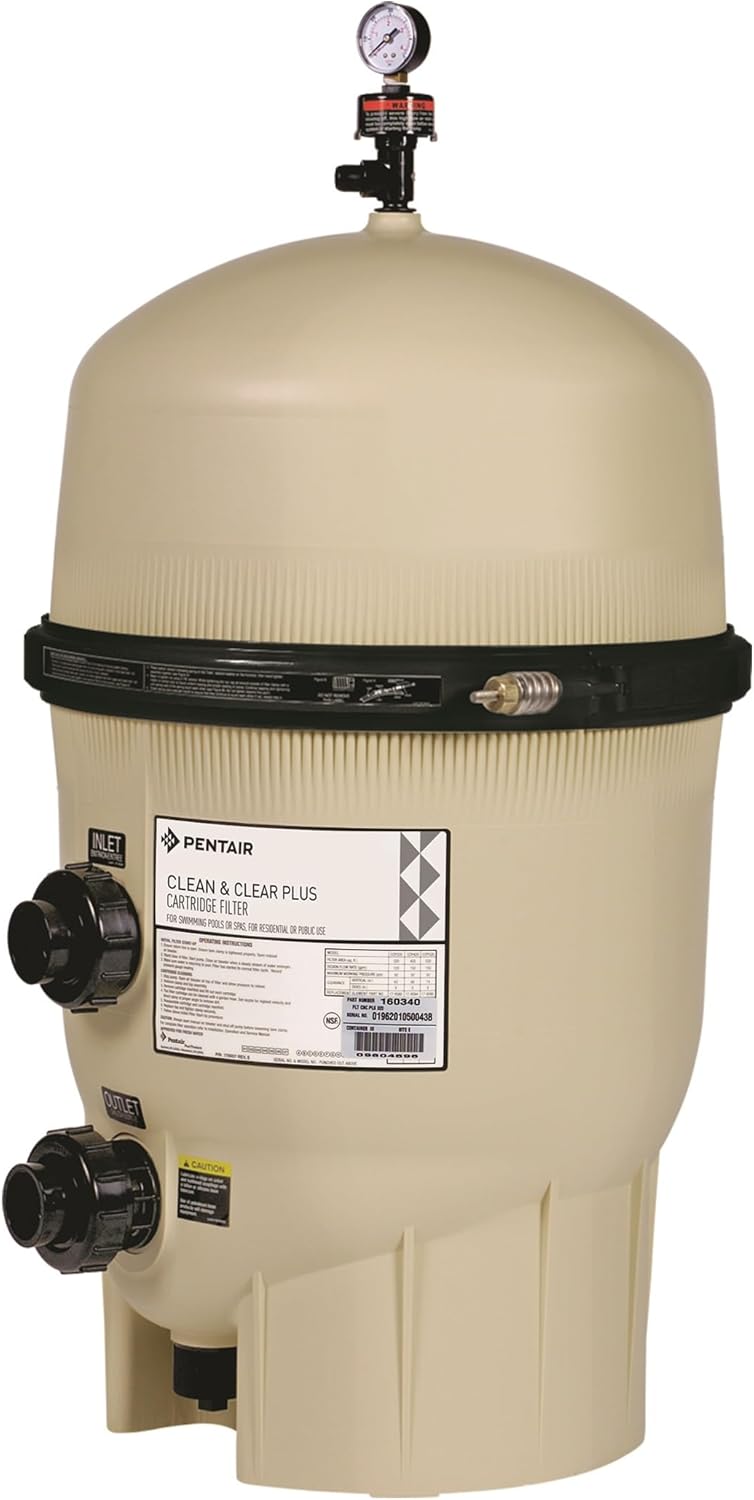

The Pentair Clean & Clear® Plus 420 Sq Ft Cartridge Filter (EC-160301) features a corrosion-resistant injection-molded fiberglass-reinforced polypropylene tank with four nonwoven polyester cartridges totaling 420 sq ft. No backwashing needed — simply remove the cartridges and rinse with a garden hose, reducing water consumption. Rated for 150 GPM and pools up to 108,000 gallons (12-hour turnover).
Features Continuous High Flow™ internal air relief, balanced hydraulic flow, 100% drain clean-out port, and durable injection-molded tank construction. Backed by a 1-year warranty.
Key Features
420 Sq Ft / Four Cartridges — No Backwashing

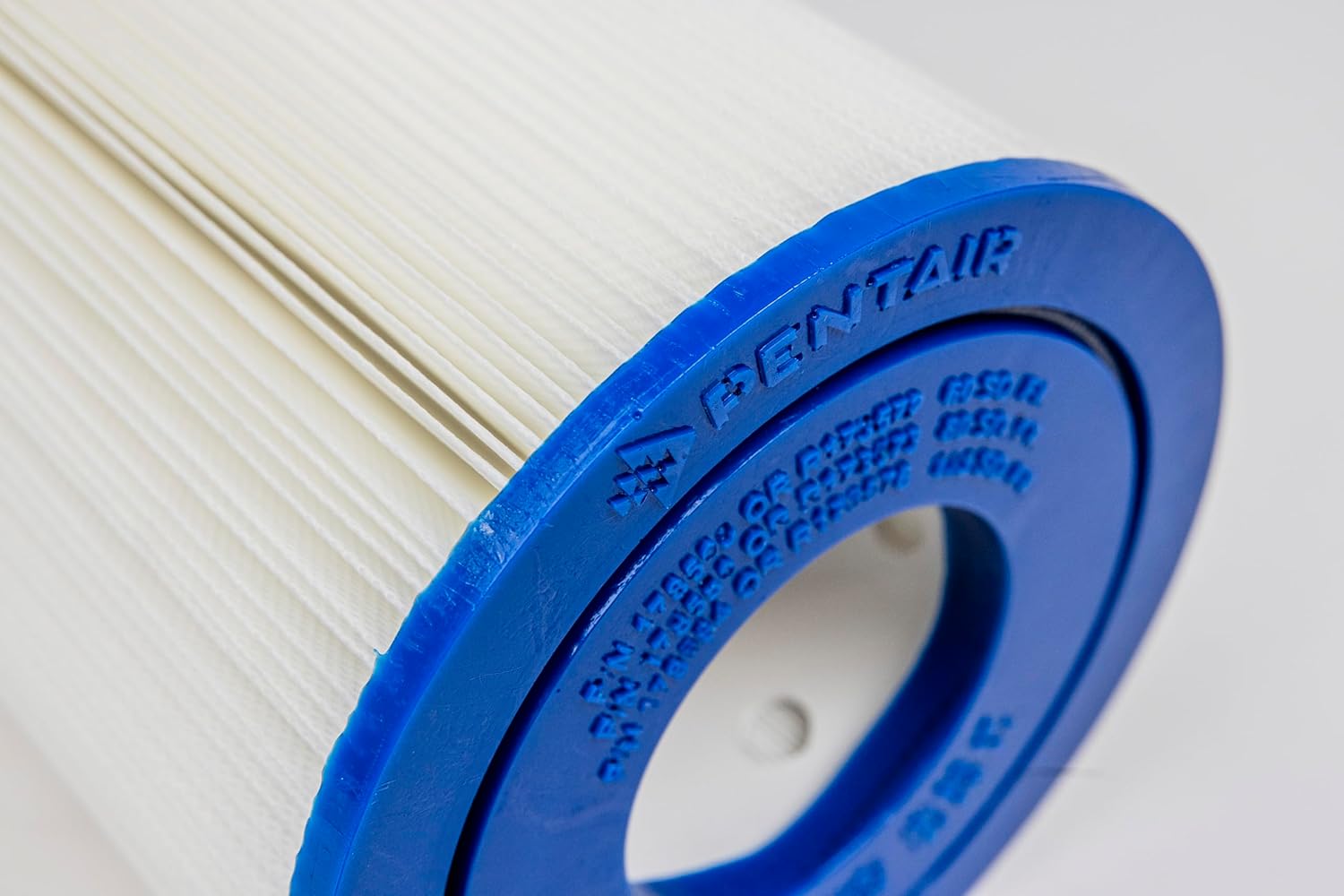

420 sq ft across four nonwoven polyester cartridges — large filter area for maximum dirt capacity. Simply rinse to clean.
150 GPM / 108,000 Gallon Pool Coverage
Rated for 150 GPM — handles pools up to 108,000 gallons at 12-hour turnover.
Fiberglass-Reinforced Polypropylene Tank
Corrosion-resistant injection-molded tank for superior strength and long-term reliability.
Continuous High Flow™ Internal Air Relief
Integrated automatic air relief for consistent, efficient operation.
Balanced Hydraulic Flow
Even flow distribution across all four cartridges for consistent filtration performance.
100% Drain Clean-Out Port
Complete tank drainage for maintenance and winterization.
1-Year Warranty
Pentair warranty coverage.
Who It's For
- Pool owners who want the Clean & Clear Plus 420 sq ft four-cartridge platform
- Large pools up to 108,000 gallons requiring 150 GPM cartridge filtration
- Anyone who wants the EC-160301 variant specifically
Specifications
Performance
| Filtration Area | 420 sq ft |
| Max Flow Rate | 150 GPM |
| Cartridges | 4 (Nonwoven Polyester) |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Plumbing Size | 2 in |
| Product Height | 49 in |
| Vertical Clearance Required | 68 in |
Physical
| Product Weight | 75 lb |
| Shipping Dimensions | 22.5 × 22.5 × 44.5 in |
Warranty
| Warranty | 1 Year |
What's in the Box
- Pentair Clean & Clear Plus Filter Tank (EC-160301)

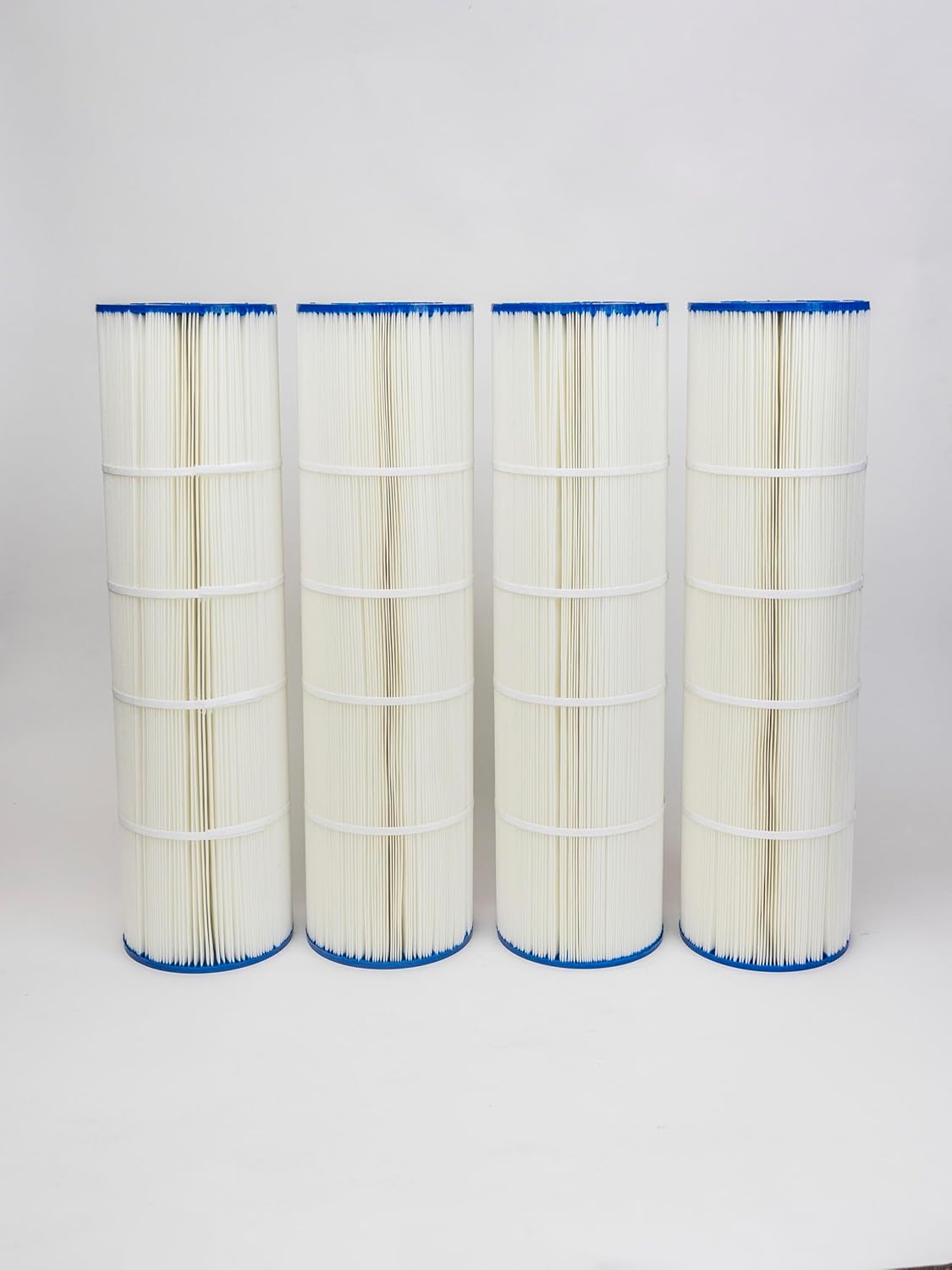

- Four Nonwoven Polyester Cartridge Elements
- User Manual
Warranty
The Pentair Clean & Clear Plus EC-160301 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the EC-160301 differ from the standard Clean & Clear Plus 420 (160301)?
The EC-160301 and 160301 are the same Clean & Clear Plus 420 sq ft filter with the same specifications. The EC- prefix typically denotes a variant SKU used for specific distribution channels. Performance, cartridges, and warranty are identical.
How often do the cartridges need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. Remove the four cartridges and rinse each with a garden hose.
