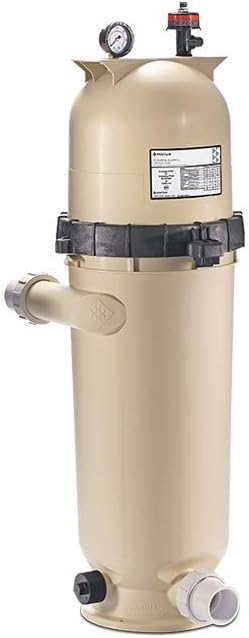

Pentair Clean & Clear® RP 200 Sq Ft Cartridge Filter
The Pentair Clean & Clear® RP 200 Sq Ft Cartridge Filter is the most efficient single-cartridge system ever made — now with 200 sq ft of filter area for extended cleaning intervals. Its side-entry port design provides nearly 50% more efficiency than any other single-cartridge filter, and increased cartridge surface consistency traps particles as small as 20 microns for picture-perfect water clarity.
Rated for up to 150 GPM and pools up to 108,000 gallons (12-hour turnover) from a single 35 lb cartridge. Low-force quick-connect diamond-seal closure, easy turn lock ring, drain and wash capability, chemical-resistant tank. ANSI Standard 50 certified. Backed by a 1-year warranty.
Key Features
200 Sq Ft Single Cartridge — No Backwashing
200 sq ft of filtration in a single cartridge — more area than the 150 sq ft CCRP for longer intervals between cleanings.
Side-Entry Port — 50% More Efficient
The unique side-entry port provides nearly 50% more efficiency than any other single-cartridge filter — enabling 150 GPM from a single compact element.
150 GPM at 200 Sq Ft
Same 150 GPM flow as the 150 sq ft model — more filter area in the same slim footprint means longer runs between cleanings.
Filters to 20 Microns
Increased cartridge surface consistency traps particles as small as 20 microns.
Low-Force Diamond-Seal / Easy Turn Lock Ring
Tool-free tank opening — quick-connect diamond-seal plus turn lock ring for fast cartridge access.
Chemical-Resistant Tank
Durable chemical-resistant tank body for long-term pool environment service.
Drain and Wash
Quick and convenient maintenance and winterization drain capability.
ANSI Standard 50 Certified / Green Certified
Energy efficient — ANSI 50 certified for pool and spa filtration.
Who It's For
- Pool owners who want single-cartridge convenience with 200 sq ft and 150 GPM in a compact footprint
- Tight equipment pad installations where a slim tank (only 6-inch side clearance) is needed but 76-inch vertical clearance is available
- Anyone who wants more filter area than the 150 sq ft CCRP but the same compact side-entry design
Specifications
Performance
| Filtration Area | 200 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 1 (Single Element) |
| Filtration Rating | 20 microns |
| Pool Size (6-hr turnover) | Up to 54,000 gallons |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank
| Port Design | Side-Entry |
| Closure | Low-Force Diamond-Seal (No Tools) + Turn Lock Ring |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 76 in |
Physical
| Product Weight | 35 lb |
| Shipping Dimensions | 17.5 × 14.5 × 42 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Pentair Clean & Clear RP Filter Tank with Diamond-Seal Closure
- Single Cartridge Element (200 sq ft)
- User Manual
Warranty
The Pentair Clean & Clear RP 200 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the 200 sq ft (160353) and 150 sq ft (160355) Clean & Clear RP?
Both are the same side-entry port Clean & Clear RP design with identical 150 GPM flow, 50 PSI rating, and pool size coverage. The 200 sq ft model holds 33% more filter media than the 150 sq ft — meaning it can trap more dirt before needing cleaning, extending the service interval between cartridge rinses. Both models weigh 35 lb and ship in the same dimensions. Choose the 200 sq ft for longer cleaning intervals.
How does a 200 sq ft filter handle the same GPM as a 420 sq ft four-cartridge filter?
The Clean & Clear RP's side-entry port provides nearly 50% greater hydraulic efficiency than traditional top-entry single-cartridge filters — allowing a smaller cartridge area to handle the same 150 GPM. The difference is cleaning interval: a 420 sq ft four-cartridge filter has more total filter area and can hold more dirt before needing cleaning. The RP is the right choice when footprint is the constraint and 76 inches of vertical clearance is available.
