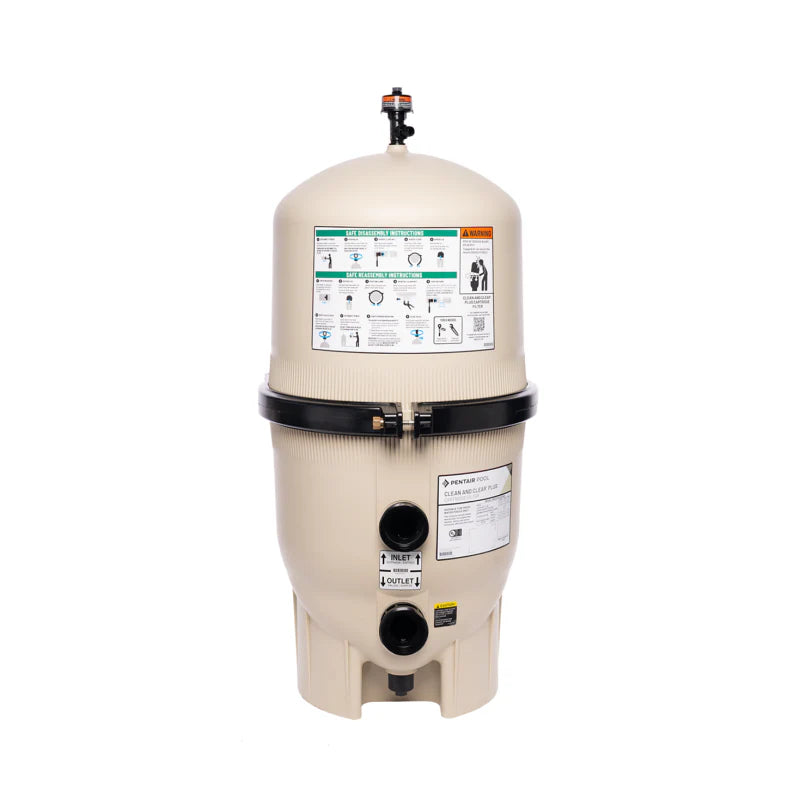

Pentair Clean and Clear® Plus 520 Sq Ft Cartridge Filter
The Pentair Clean and Clear® Plus 520 Sq Ft Cartridge Filter is the largest model in the Clean and Clear Plus lineup — delivering maximum cartridge filtration capacity with no backwashing required. Four polyester cartridge elements totaling 520 sq ft handle up to 150 GPM in the tallest tank in the series. To clean, simply remove the cartridges and rinse with a garden hose.
Built by Pentair with the same corrosion-resistant fiberglass-reinforced polypropylene construction, balanced hydraulic flow, 100% drain clean-out port, and Continuous High Flow™ internal air relief as the rest of the CCP line. ANSI Standard 50 certified. Backed by a 1-year warranty.
Key Features
520 Sq Ft Filter Area — Maximum CCP Capacity
Largest filter area in the Clean and Clear Plus line — maximum dirt capacity and longest intervals between cleanings.
150 GPM Flow Rate
Handles up to 150 GPM for large pools and high-flow systems.
No Backwashing Required
Clean by rinsing four cartridges with a garden hose — no backwash water wasted.
Four-Cartridge Assembly
Four nonwoven polyester cartridges provide 520 sq ft of combined area for maximum performance.
Fiberglass-Reinforced Polypropylene Tank
Corrosion-resistant injection-molded construction for long service life.
Continuous High Flow™ Internal Air Relief
Integrated automatic air relief maintains optimal flow.
Balanced Hydraulic Flow
Evenly distributes water across all four cartridges for consistent filtration.
100% Drain Clean-Out Port
Full-drain port for complete winterization or maintenance drainage.
Who It's For
- Pool owners with large pools who want maximum cartridge filter capacity in a single unit
- Anyone who wants the longest possible intervals between cartridge cleanings
- Pools where the 420 sq ft CCP420 is insufficient and maximum capacity is preferred
- High-flow pool systems running 150 GPM
Specifications
Performance
| Filtration Area | 520 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Cartridges Required | 4 |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (10-hr turnover) | Up to 90,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 74 in |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 22 × 22 × 50 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes |
| Warranty | 1 Year |
What's in the Box
- Pentair Clean and Clear Plus Filter Tank
- Four Polyester Cartridge Elements
- Clamp Band
- User Manual
Warranty
The Pentair Clean and Clear Plus 520 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the 520 sq ft model compare to the 420 sq ft CCP420?
Both are Clean and Clear Plus four-cartridge filters rated for 150 GPM. The CCP520 has 100 sq ft more filter area — it holds more dirt before needing cleaning, extending the interval between service visits. It is also taller (requires 74 in vertical clearance vs. 68 in for the CCP420) and weighs slightly more. Choose the 520 when maximum dirt capacity and the longest possible cleaning intervals are the priority.
How often do the cartridges need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. With 520 sq ft of area, this filter can go longer between cleanings than smaller models under the same conditions. Simply remove the four cartridges and rinse with a garden hose.
Does this require backwashing?
No. Cartridge filters do not require backwashing. Remove the cartridges and rinse with a garden hose. This saves significant water compared to sand or DE filter backwash cycles.
