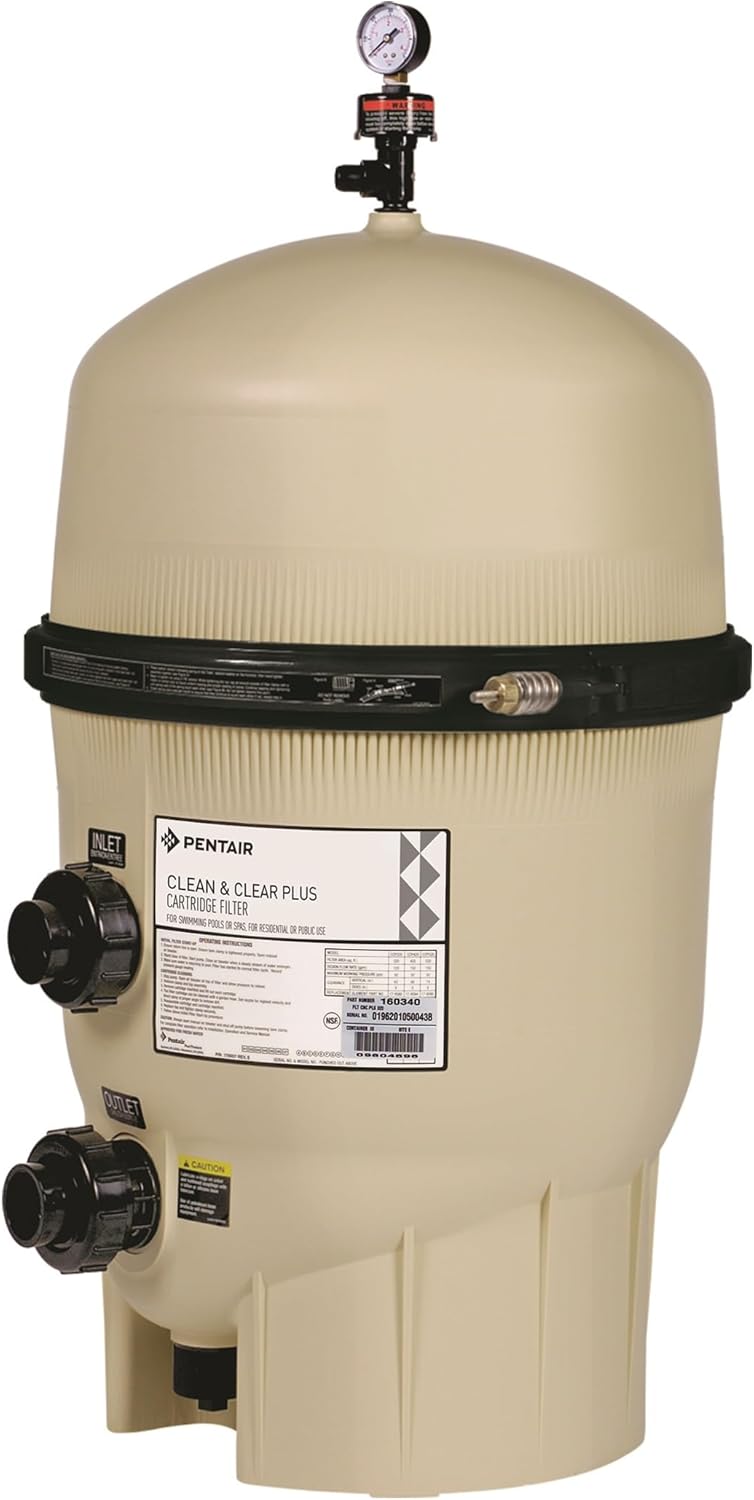

Pentair Clean and Clear® Plus 420 Sq Ft Cartridge Filter
The Pentair Clean and Clear® Plus 420 sq ft Cartridge Filter delivers high-capacity filtration with no backwashing required. The corrosion-resistant, fiberglass-reinforced polypropylene tank houses four polyester cartridge elements totaling 420 sq ft of filter area — handling up to 150 GPM at a maximum working pressure of 50 PSI. To clean, simply remove the cartridges and rinse with a garden hose.
Built by Pentair with balanced hydraulic flow, a 100% drain clean-out port, Continuous High Flow™ internal air relief, and ANSI Standard 50 certification. Sized for pools up to 108,000 gallons (12-hour turnover). Backed by a 1-year warranty.
Key Features
420 Sq Ft Filter Area — No Backwashing
Large 420 sq ft cartridge area for high dirt capacity. Clean by rinsing with a garden hose — no backwash water wasted.
150 GPM Flow Rate
Rated for up to 150 GPM — handles large residential and light commercial pool applications.

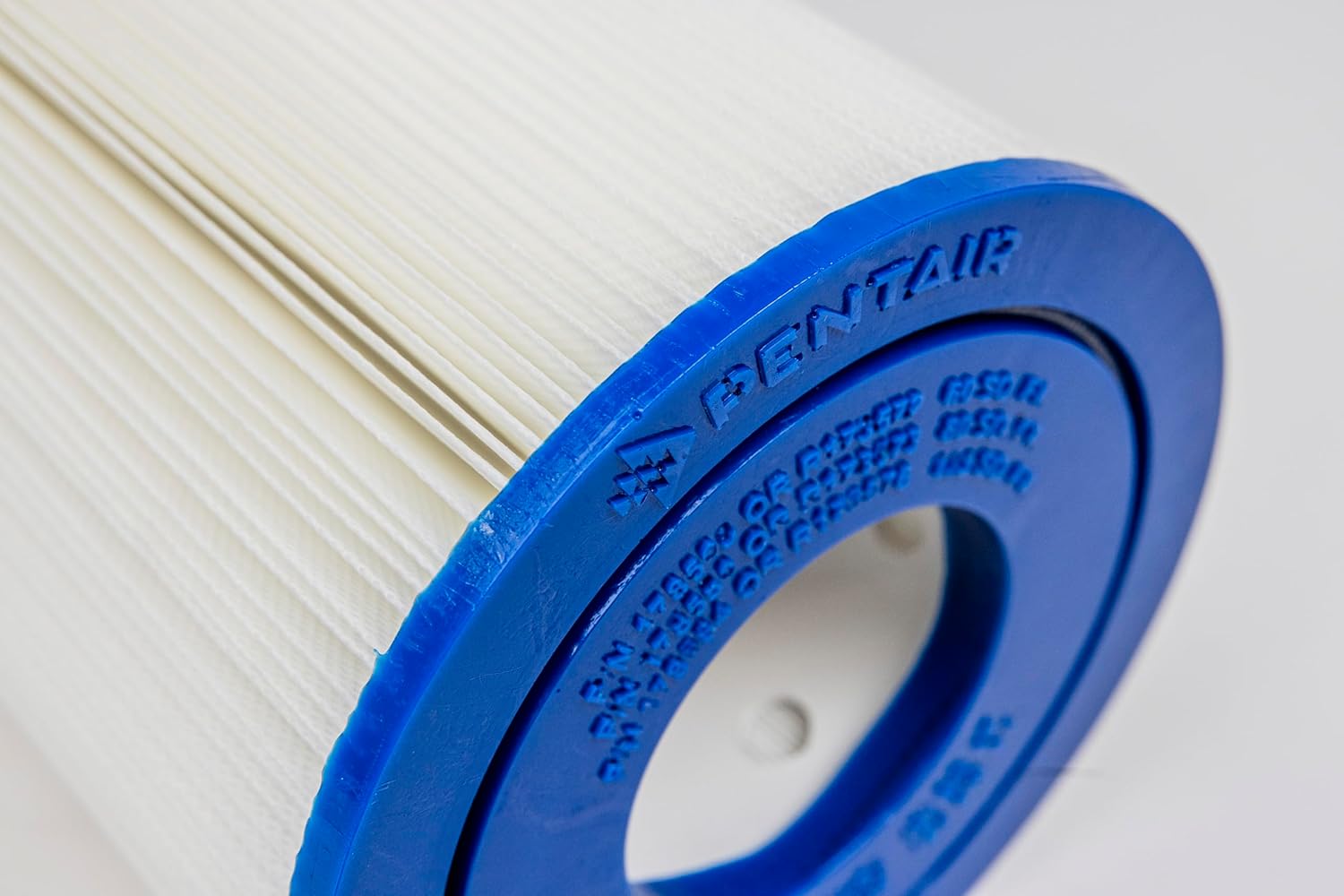

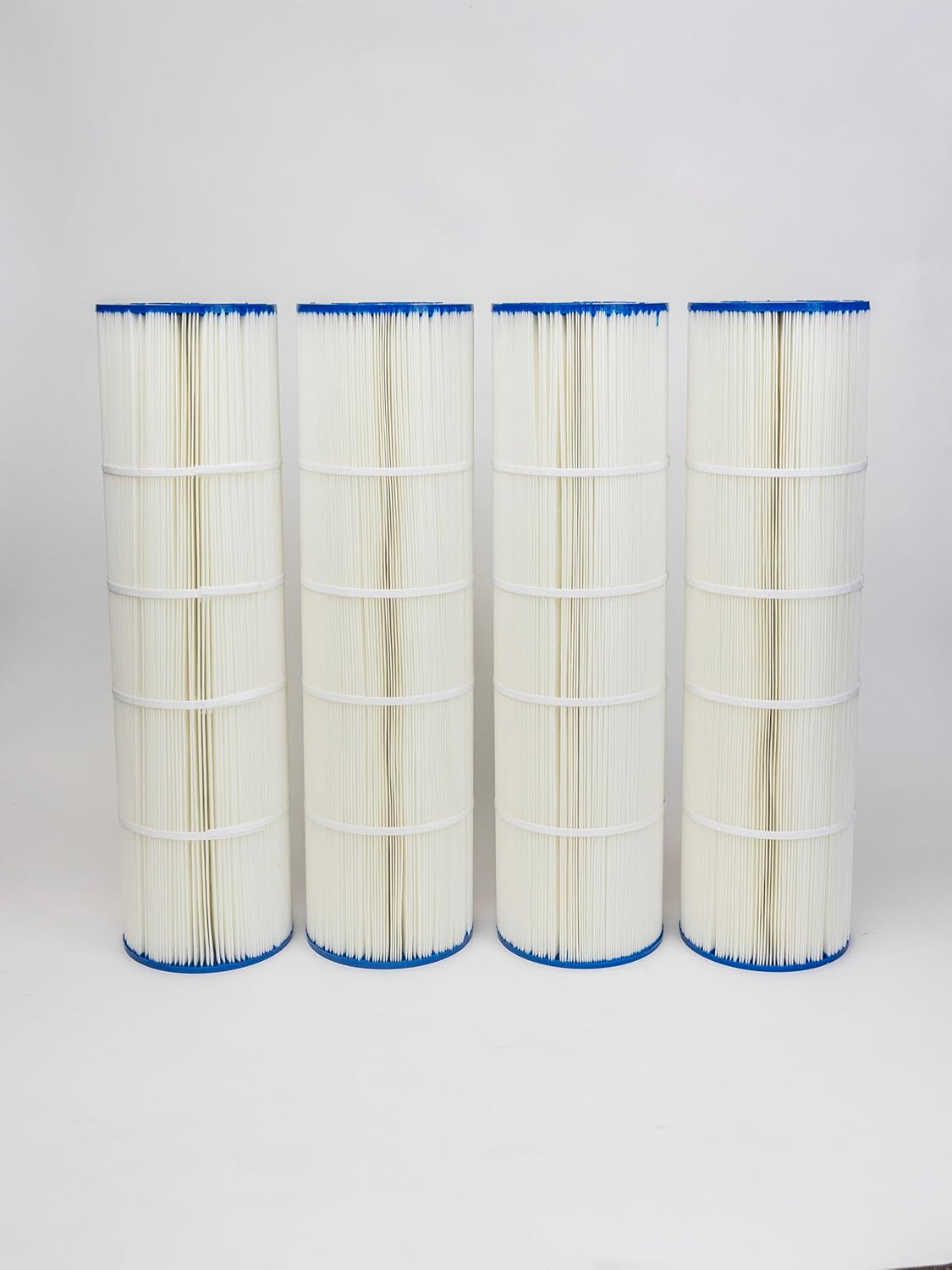

Four-Cartridge Assembly
Four nonwoven polyester cartridges provide the 420 sq ft combined filtration area.
Fiberglass-Reinforced Polypropylene Tank
Corrosion-resistant injection-molded construction for superior strength and long service life.
Continuous High Flow™ Internal Air Relief
Integrated automatic air relief maintains optimal flow — no manual bleeder valve required.
Balanced Hydraulic Flow
Balanced internal flow design evenly distributes water across all four cartridges for maximum filter efficiency.
100% Drain Clean-Out Port
Full-drain port enables complete tank drainage for winterization or maintenance.
Water-Saving Design
No backwash cycle means no water waste — eco-friendly and lower operating cost than sand or DE filters.
ANSI Standard 50 Certified
Meets ANSI Standard 50 for pool and spa filtration equipment.
Who It's For
- Pool owners with pools up to 108,000 gallons who want cartridge filtration at 150 GPM
- Anyone who prefers cartridge over sand or DE — no backwashing, lower water consumption
- Pools where a large-diameter single filter is preferred over multiple smaller units
- New builds and upgrades requiring ANSI 50 certified filtration
Specifications
Performance
| Filtration Area | 420 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 4 |
| Pool Size (6-hr turnover) | Up to 54,000 gallons |
| Pool Size (8-hr turnover) | Up to 72,000 gallons |
| Pool Size (12-hr turnover) | Up to 108,000 gallons |
Tank
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Tank Color | Beige |
| Tank Diameter | 22.98 in |
Plumbing & Clearance
| Pipe / Plumbing Size | 2 in |
| Inlet/Outlet Spacing | 7.49 in center-to-center |
| Product Height | 49 in |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 68 in |
Physical
| Product Weight | 75 lb |
| Shipping Dimensions | 22 × 22.5 × 45 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes |
| Warranty | 1 Year |
What's in the Box
- Pentair Clean and Clear Plus Filter Tank
- Four Polyester Cartridge Elements
- Clamp Band
- User Manual
Warranty
The Pentair Clean and Clear Plus 420 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How often do the cartridges need cleaning?
Cleaning frequency depends on pool size, bather load, and surrounding environment. A general guideline is to inspect the pressure gauge — when pressure rises 8–10 PSI above the clean starting pressure, it's time to clean. For most residential pools this is typically every 2–6 months. Simply remove the four cartridges and rinse with a garden hose.
What pool size is this filter appropriate for?
The CCP420 is sized for pools up to 54,000 gallons at a 6-hour turnover, 72,000 gallons at 8 hours, or up to 108,000 gallons at 12 hours. For residential pools, most sizing guidelines recommend a 6–8 hour turnover rate.
What replacement cartridges does this filter use?
The Clean and Clear Plus 420 uses four cartridge elements — consult Pentair's replacement parts guide for the correct cartridge part number for this model, or search by filter model number CCP420 / 160301.
Does this filter require backwashing?
No. Cartridge filters do not require backwashing. To clean, open the filter, remove the four cartridge elements, and rinse them with a garden hose. This saves significant water compared to sand or DE filter backwashing.
