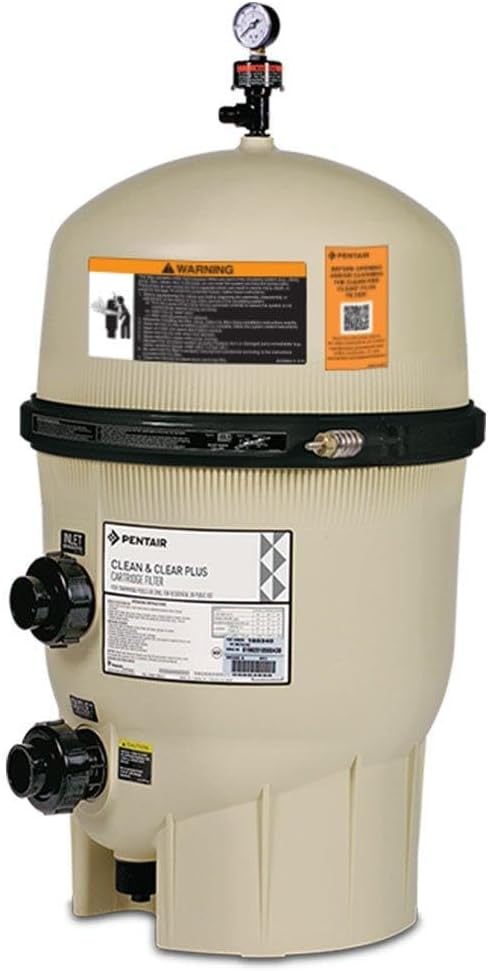

Pentair Clean & Clear® Plus 320 Sq Ft Cartridge Filter
The Pentair Clean & Clear® Plus 320 Sq Ft Cartridge Filter delivers high-capacity cartridge filtration with no backwashing required. The corrosion-resistant, fiberglass-reinforced polypropylene tank houses four polyester cartridge elements totaling 320 sq ft of filter area — handling up to 120 GPM at up to 50 PSI. To clean, simply remove the cartridges and rinse with a garden hose.
Built by Pentair with balanced hydraulic flow, a 100% drain clean-out port, and Continuous High Flow™ internal air relief. ANSI Standard 50 certified. Sized for pools up to 86,400 gallons (12-hour turnover). Backed by a 1-year warranty.
Key Features
320 Sq Ft Filter Area — No Backwashing
Large 320 sq ft cartridge area for high dirt capacity. Rinse with a garden hose to clean — no backwash water wasted.
120 GPM Flow Rate
Rated for up to 120 GPM — suited for large residential pools.
Four-Cartridge Assembly
Four nonwoven polyester cartridges provide 320 sq ft of combined filtration area for extended cleaning intervals.
Fiberglass-Reinforced Polypropylene Tank
Corrosion-resistant injection-molded construction for superior strength and long service life.
Continuous High Flow™ Internal Air Relief
Integrated automatic air relief maintains optimal flow without manual bleeding.
Balanced Hydraulic Flow
Internal flow design distributes water evenly across all four cartridges for maximum filter efficiency.
100% Drain Clean-Out Port
Full-drain port for complete tank drainage during winterization or service.
Water-Saving Design
No backwash cycle means no water waste — lower operating cost than sand or DE.
Who It's For
- Pool owners with pools up to 86,400 gallons who want cartridge filtration at 120 GPM
- Anyone who prefers cartridge over sand or DE — no backwashing, lower water consumption
- Pools where the 420 sq ft CCP420 is oversized and a 320 sq ft option is the right fit
Specifications
Performance
| Filtration Area | 320 sq ft |
| Design / Max Flow Rate | 120 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 4 |
| Pool Size (6-hr turnover) | Up to 43,200 gallons |
| Pool Size (8-hr turnover) | Up to 57,600 gallons |
| Pool Size (12-hr turnover) | Up to 86,400 gallons |
Tank & Plumbing
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Inlet/Outlet Size | 1.5 in |
| Pipe / Plumbing Size | 2 in |
| Product Height | 43 in |
| Side Clearance Required | 6 in |
| Vertical Clearance Required | 62 in |
Physical
| Product Weight | 70 lb |
| Shipping Dimensions | 22 × 22 × 39 in |
Approvals & Warranty
| Certifications | ANSI Standard 50 Certified |
| Energy Efficient | Yes |
| Warranty | 1 Year |
What's in the Box

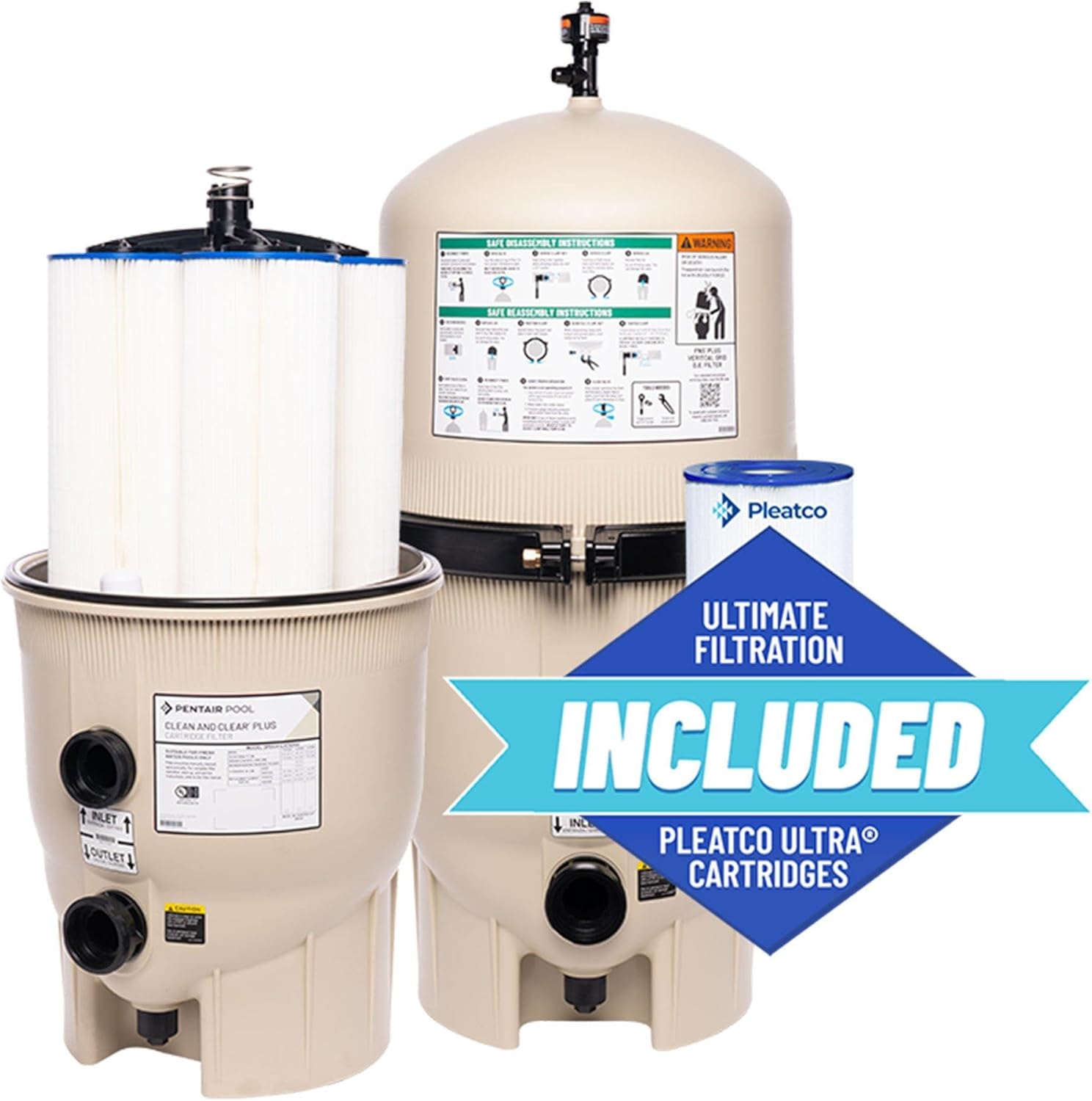

- Pentair Clean & Clear Plus Filter Tank
- Four Polyester Cartridge Elements
- Clamp Band
- User Manual
Warranty
The Pentair Clean & Clear Plus 320 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Pentair dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the 320 sq ft model differ from the 420 sq ft CCP420?
Both are Clean & Clear Plus four-cartridge filters. The CCP320 (this model) is rated for 120 GPM and pools up to 86,400 gallons at a 12-hour turnover. The CCP420 is rated for 150 GPM and pools up to 108,000 gallons. Choose the 320 for pools in the 40,000–86,000 gallon range; choose the 420 for larger pools or where additional capacity is preferred.
How often do the cartridges need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. For most residential pools this is every 2–6 months depending on pool size and bather load. Simply remove the four cartridges and rinse with a garden hose.
Does this filter require backwashing?
No. Cartridge filters do not backwash. To clean, open the filter, remove the four cartridges, and rinse them with a garden hose. This saves significant water compared to sand or DE filter backwashing.
