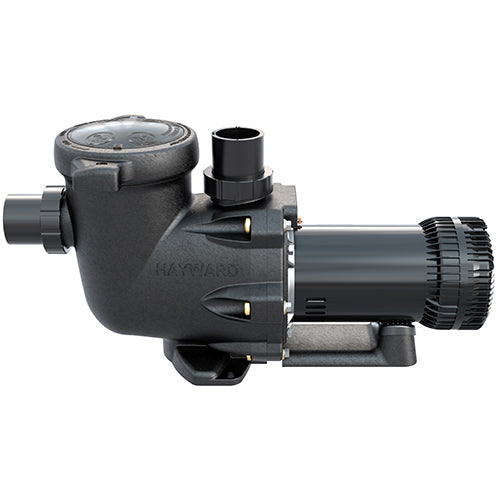

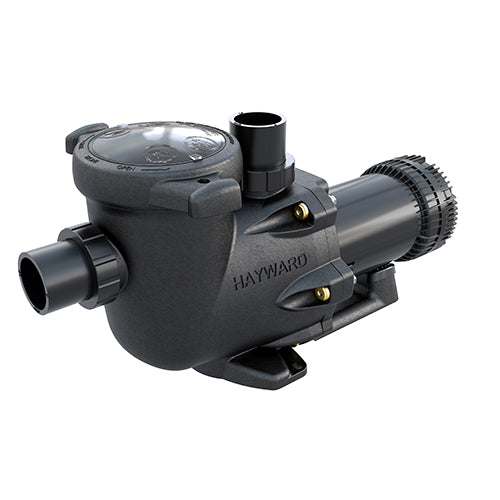

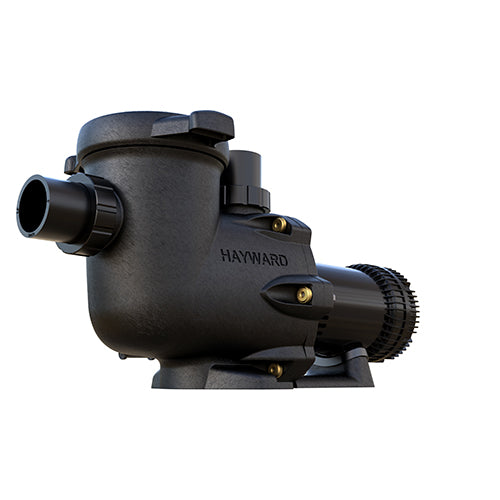

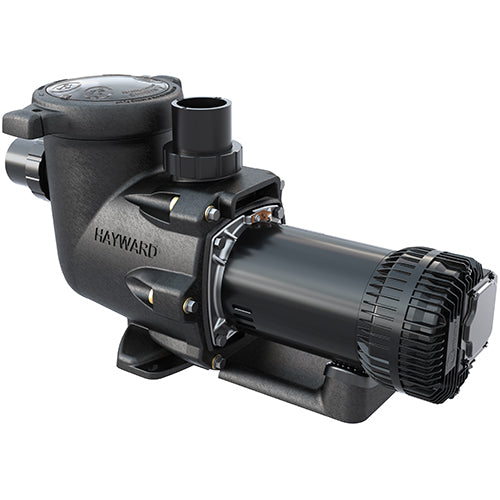

Hayward TriStar® XE Variable Speed Pump 2.2 THP 115/230V
The Hayward TriStar® XE Variable Speed Pump 2.2 THP 115/230V (SP3215X20XE) delivers maximum energy savings at a lower equipment cost — exceeding DOE benchmarks with a WEF of 8.7 at 115V and 7.2 at 230V. Up to 6 selectable speeds, easy-access toggle controls, dual-voltage capability, and standard 2"×2.5" CPVC unions included. The 2.2 THP model for new or existing pools requiring more power than the 1.85 THP XE, without paying for premium VS features you don't need.
Key Features
WEF 8.7 (115V) — Exceeds DOE Benchmarks
Industry-leading efficiency exceeds DOE requirements and outperforms many competitive VS pumps at this power level.
2.2 THP Variable Speed
Step up from the 1.85 THP XE for pools requiring more flow — same efficient XE platform.
6 Selectable Speeds / Easy Toggle Controls
Up to 6 programmable speed settings with easy-access toggle between speeds.
Dual-Voltage 115V / 230V
Flexible installation for any standard pool electrical configuration.
2" × 2.5" CPVC Unions Included
Simple installation — no additional equipment required.
Cut Equipment Costs by Over a Third
Ultra-high efficiency at significantly lower cost than premium VS models.
Specifications
| Horsepower (THP) | 2.2 THP |
| Motor Speed | Variable (up to 6 selectable speeds) |
| Weighted Energy Factor (WEF) | 8.7 (115V) / 7.2 (230V) |
| Voltage | 115V / 230V |
| Union Connections | 2 in × 2.5 in CPVC (Included) |
| Product Weight | 41.3 lb |
| Shipping Dimensions | 30.5 × 13.3 × 16.3 in |
What's in the Box
- Hayward TriStar XE Variable Speed Pump (SP3215X20XE)
- 2" × 2.5" CPVC Union Connections
- User Manual
Warranty
The Hayward TriStar XE SP3215X20XE is backed by Hayward's manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
