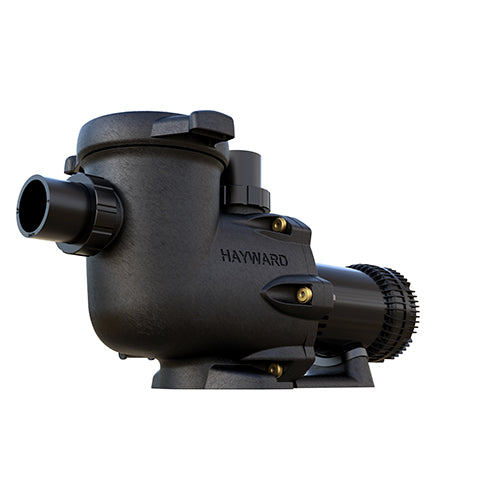

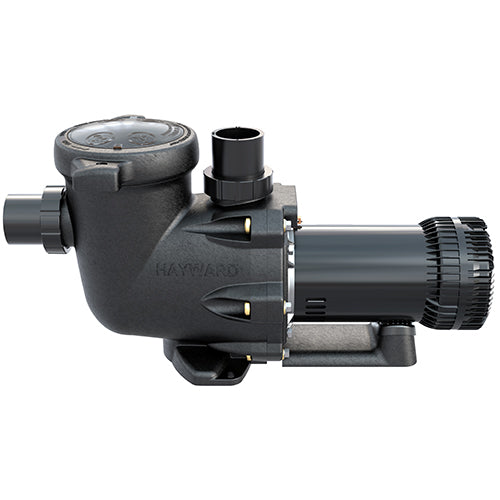

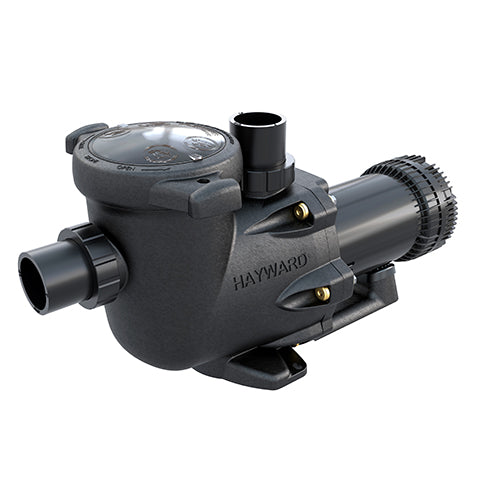

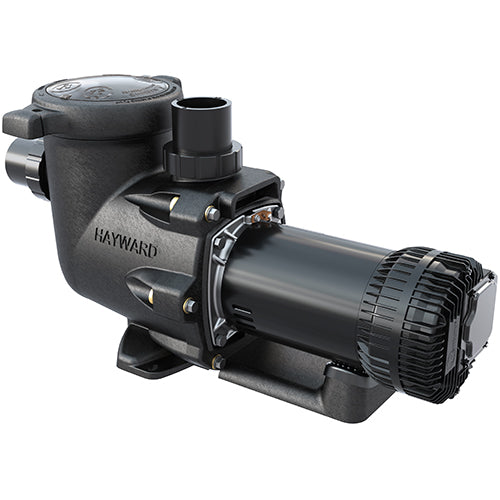

Hayward TriStar® XE Variable Speed Pump 1.85 THP 115/230V
The Hayward TriStar® XE Variable Speed Pump 1.85 THP 115/230V (SP3210X15XE) delivers maximum energy savings at a lower equipment cost — cutting costs by more than a third compared to premium VS models while still exceeding DOE benchmarks. WEF 8.5 at 230V (8.4 at 115V). Up to 6 selectable speeds, easy-access toggle controls, dual-voltage capability, and standard 2"×2.5" CPVC unions included. The right-sized, DOE-compliant VS solution without paying for more than you need. Backed by a 1-year warranty.
Key Features
WEF 8.5 — Exceeds DOE Benchmarks
Industry-leading efficiency exceeds DOE benchmarks and outperforms many competitive VS pumps at a lower price point.
6 Selectable Speeds / Easy Toggle Controls
Up to 6 programmable speed settings. Easy-access control toggles between speeds at the touch of a button.
Dual-Voltage 115V / 230V
Flexible installation for any standard pool electrical configuration — no rewiring required.
2" × 2.5" CPVC Unions Included
Simple installation — unions included, no additional equipment required.
Cut Equipment Costs by Over a Third
Ultra-high efficiency at a significantly lower price than premium VS models — maximum value for DOE-compliant VS replacement.
1-Year Warranty
Hayward warranty coverage.
Specifications
| Horsepower (THP) | 1.85 THP |
| Motor Speed | Variable (up to 6 selectable speeds) |
| Weighted Energy Factor (WEF) | 8.5 (230V) / 8.4 (115V) |
| Voltage | 115V / 230V |
| Frequency | 60 Hz |
| Max Working Pressure | 50 PSI |
| Union Connections | 2 in × 2.5 in CPVC (Included) |
| Application | In-Ground Pool / Spa / Fountains |
| Product Weight | 39.8 lb |
| Shipping Dimensions | 30.5 × 13.3 × 16.3 in |
| Warranty | 1 Year |
What's in the Box
- Hayward TriStar XE Variable Speed Pump (SP3210X15XE)
- 2" × 2.5" CPVC Union Connections
- User Manual
Warranty
The Hayward TriStar XE SP3210X15XE comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
