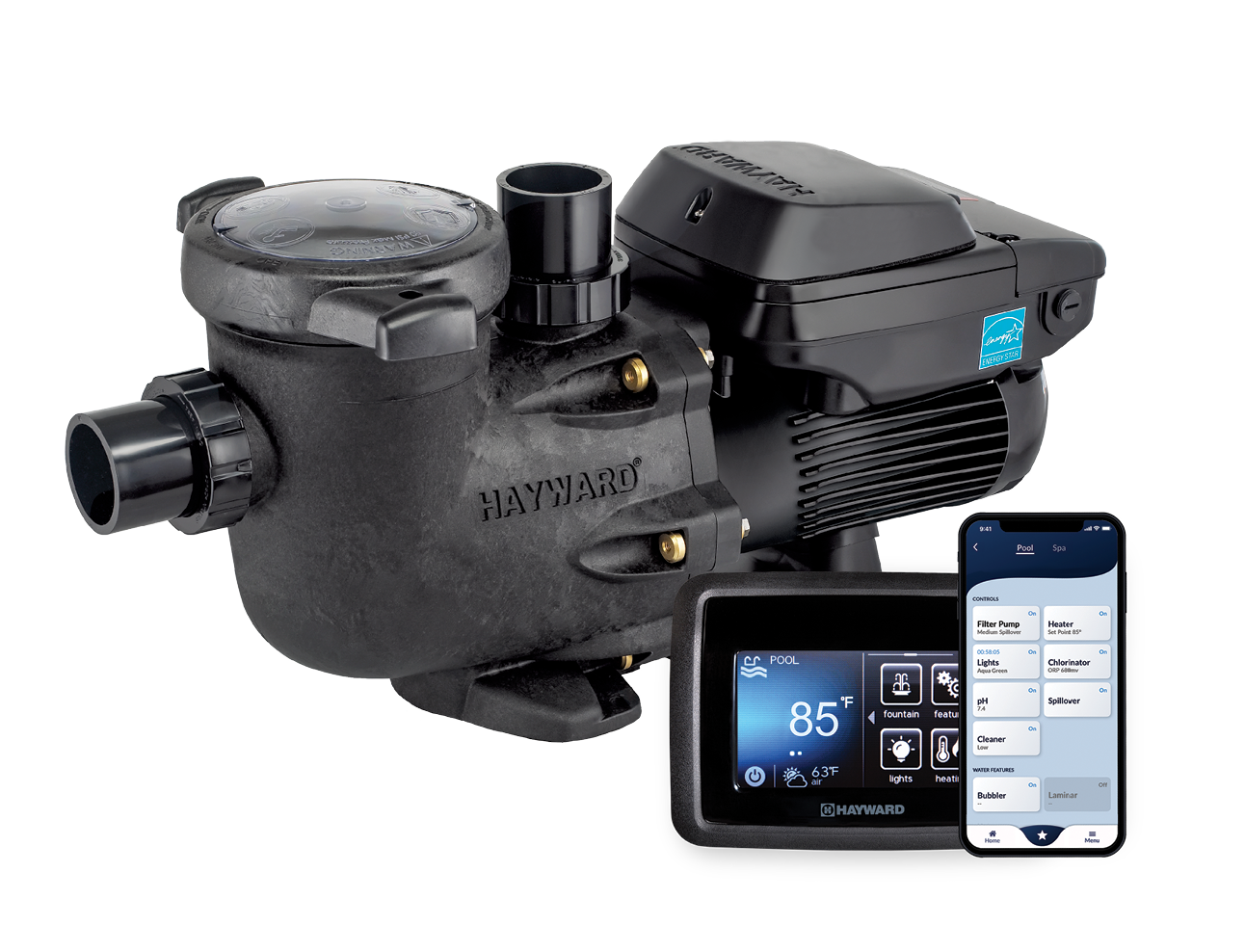

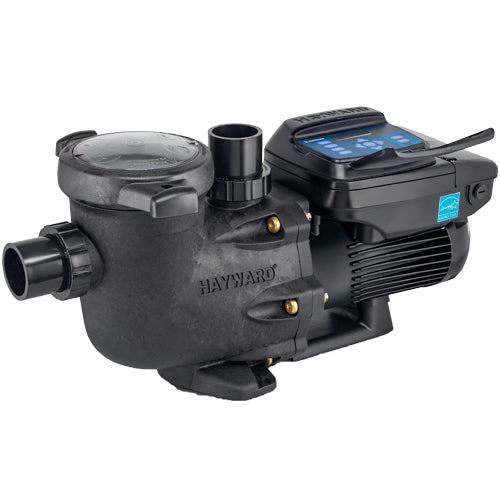

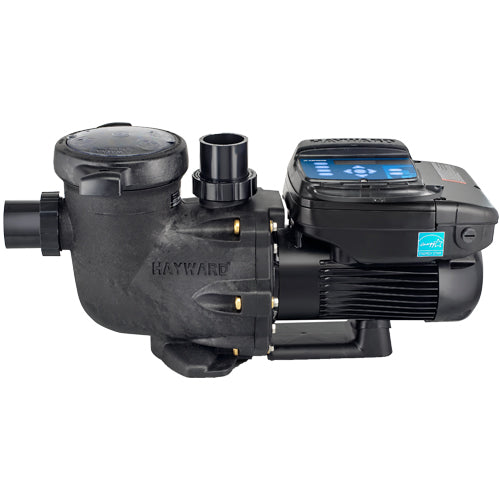

Hayward TriStar® VS 900 Omni Variable Speed Pump 1.85HP 115/230V
The Hayward TriStar® VS 900 Omni Variable Speed Pump 1.85 HP 115/230V (HL32900VSP) combines the TriStar's proven pump body with VS Omni automation — saving up to 90% in energy costs while controlling virtually every piece of pool and spa equipment from a smartphone or tablet. Seamlessly integrates with most equipment brands. Permanent magnet TEFC motor with EnduraDrive™ and Viton® seal. NSF, Energy Star, and cULus certified. Backed by a 3-year warranty.
Key Features
1.85 HP — Between VS 815 and VS 950
More power than the 1.85 HP TriStar VS 815 (different body) at the same HP — 62 lb on the TriStar Omni platform.
Multi-Brand Omni Integration
VS Omni seamlessly integrates with most equipment brands — not limited to Hayward-only ecosystems.

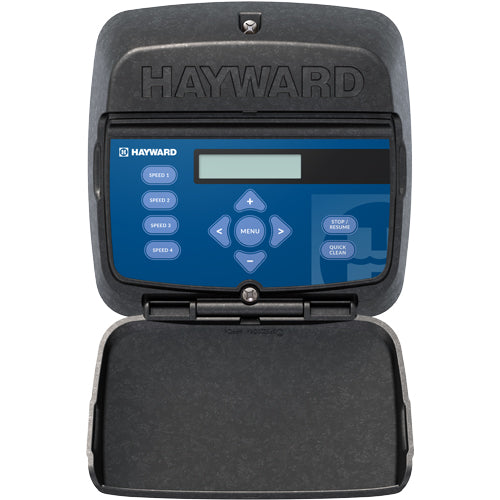

Smartphone Control / Up to 90% Energy Savings
Control and schedule from anywhere — adjust speed, temperature, lights, and more.
EnduraDrive™ Permanent Magnet TEFC / Viton® Seal
Long-lasting, reliable performance in all conditions.
NSF / Energy Star / cULus / 3-Year Warranty
Triple-certified with Hayward's 3-year warranty.
Specifications
| Horsepower | 1.85 HP |
| Motor Speed | Variable (600–3,450 RPM) |
| Motor Type | Permanent Magnet TEFC / EnduraDrive™ |
| Seal | Viton® Chemical-Resistant |
| Voltage | 115V / 230V |
| Frequency | 60 Hz |
| Phase | Single |
| Color | Black |
| Application | In-Ground Pool / Spa |
| Product Weight | 62 lb |
| Shipping Dimensions | 30.1 × 13.6 × 23.3 in |
| Certifications | NSF, Energy Star, cULus Certified |
| Warranty | 3 Years |
What's in the Box
- Hayward TriStar VS 900 Omni Variable Speed Pump (HL32900VSP)
- User Manual
Warranty
The Hayward TriStar VS 900 Omni HL32900VSP comes with a 3-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
