Hayward SwimClear™ 700 Sq Ft Cartridge Filter
The Hayward SwimClear™ C7030 700 Sq Ft Cartridge Filter is the largest SwimClear model — delivering maximum cartridge filtration capacity with heavy-duty dirt-holding capacity and extra-long filter cycles. 725 sq ft across four cartridge elements, 150 GPM, 50 PSI, no backwashing required. Saves up to 2,500 gallons of water per year vs. backwash filter operation.
Built with a durable injection-molded 18-inch tank and SwimClear's proven efficient flow design. Green certified. Backed by a 1-year warranty.
Key Features
725 Sq Ft — Largest SwimClear Model
Maximum filter area in the SwimClear line — four cartridges for the heaviest dirt load and longest intervals between cleanings.
150 GPM — No Backwashing
Saves up to 2,500 gallons of water per year. Simply rinse the four cartridges when cleaning is due.
Heavy-Duty Dirt-Holding Capacity

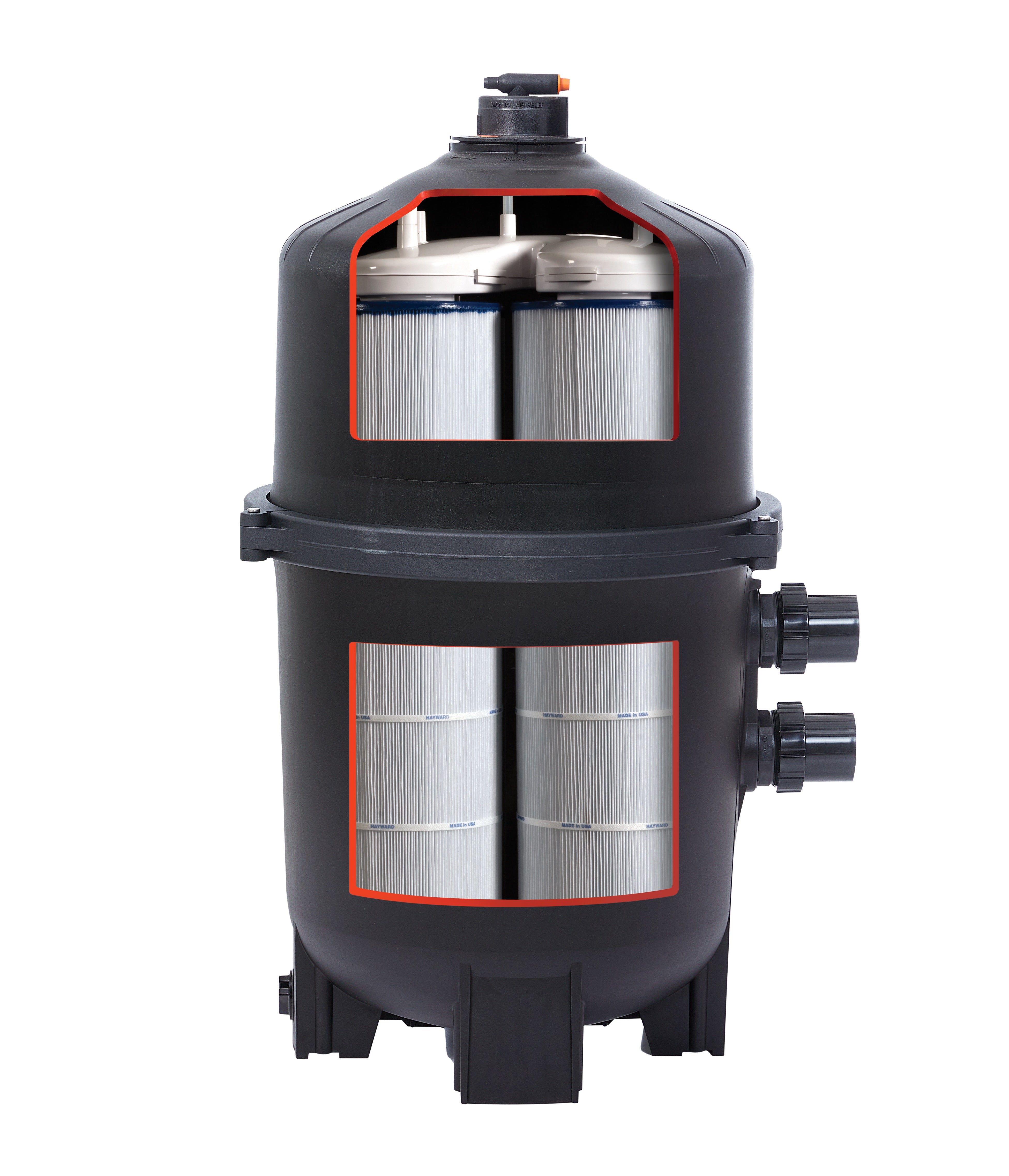

Four-cartridge design provides maximum filter surface area for extra-long filter cycles.
Most Energy-Efficient Flow
SwimClear's efficient flow design lowers operating cost — green certified.
New Pool and Aftermarket Compatible
Suitable for both new construction and replacement installations.
Durable Injection-Molded Tank
18-inch diameter tank built for long service life.
Who It's For
- In-ground pool and spa owners who want the absolute maximum SwimClear filter capacity and cleaning intervals
- Anyone upgrading from the C5030 (525 sq ft) who wants even longer service intervals
- High-demand pools — high bather load, heavy debris environment, or simply maximum set-and-forget operation
- Hayward system users wanting brand-matched filtration at the top of the SwimClear lineup
Specifications
Performance
| Filtration Area | 725 sq ft (C7030) |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 4 |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Diameter | 18 in |
| Tank Color | Beige / Gray |
| Product Height | 52.5 in |
| Inlet/Outlet Spacing | 5 in center-to-center |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 28 in |
Physical
| Product Weight | 107.5 lb |
| Shipping Dimensions | 24.6 × 23.1 × 53.8 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C7030 Filter Tank
- Four Cartridge Elements
- One-Piece Flange Clamp
- User Manual
Warranty
The Hayward SwimClear C7030 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the C7030 compare to the C5030 (525 sq ft)?
Both are SwimClear four-cartridge filters at 150 GPM in the same 18-inch tank. The C7030 has 200 sq ft more filter area (725 vs. 525 sq ft) — holding more dirt before cleaning and extending service intervals further. It ships taller (53.8 in vs. 47.8 in) and weighs slightly more (107.5 lb vs. 92 lb). Choose the C7030 when you want the absolute maximum SwimClear filter area.
Does the SwimClear require backwashing?
No. SwimClear is a cartridge filter — it does not backwash. Remove the four cartridge elements and rinse with a garden hose to clean. This saves up to 2,500 gallons of water per year compared to sand or D.E. filter backwashing.
