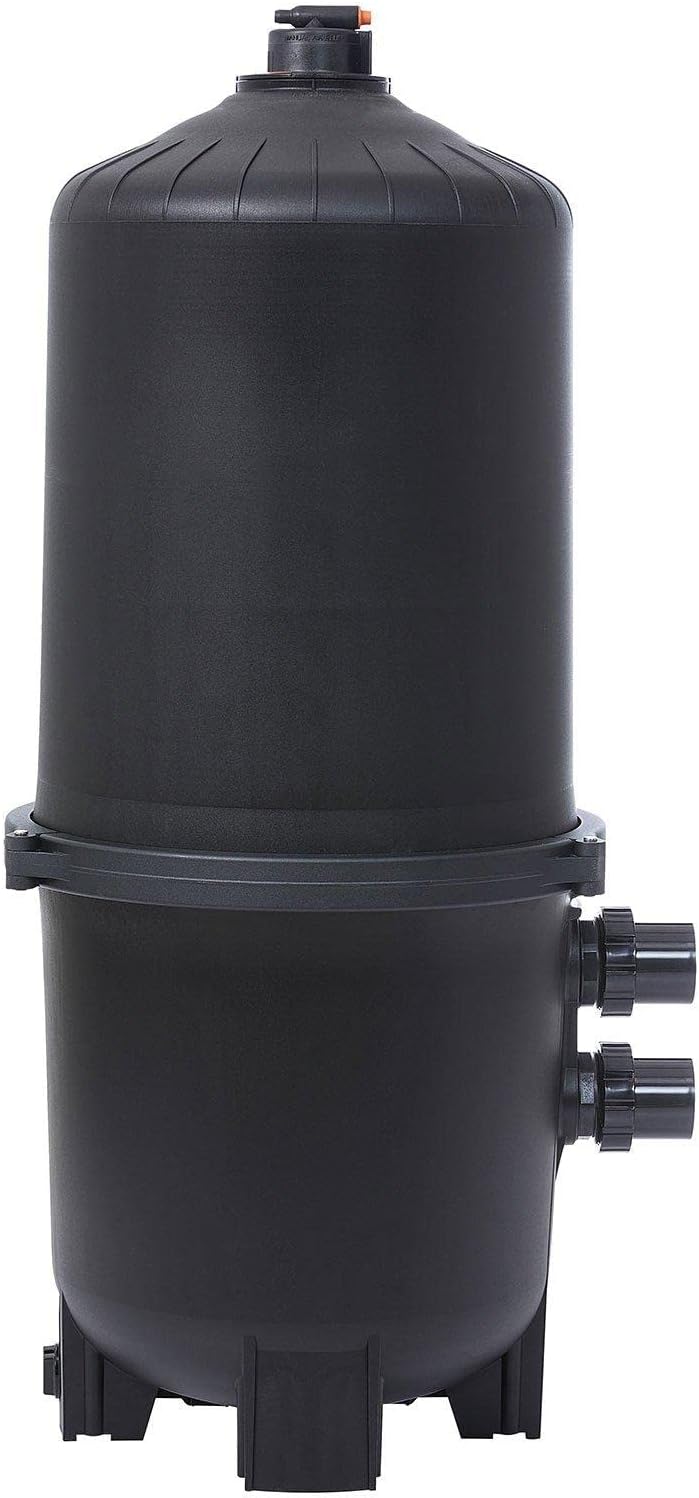

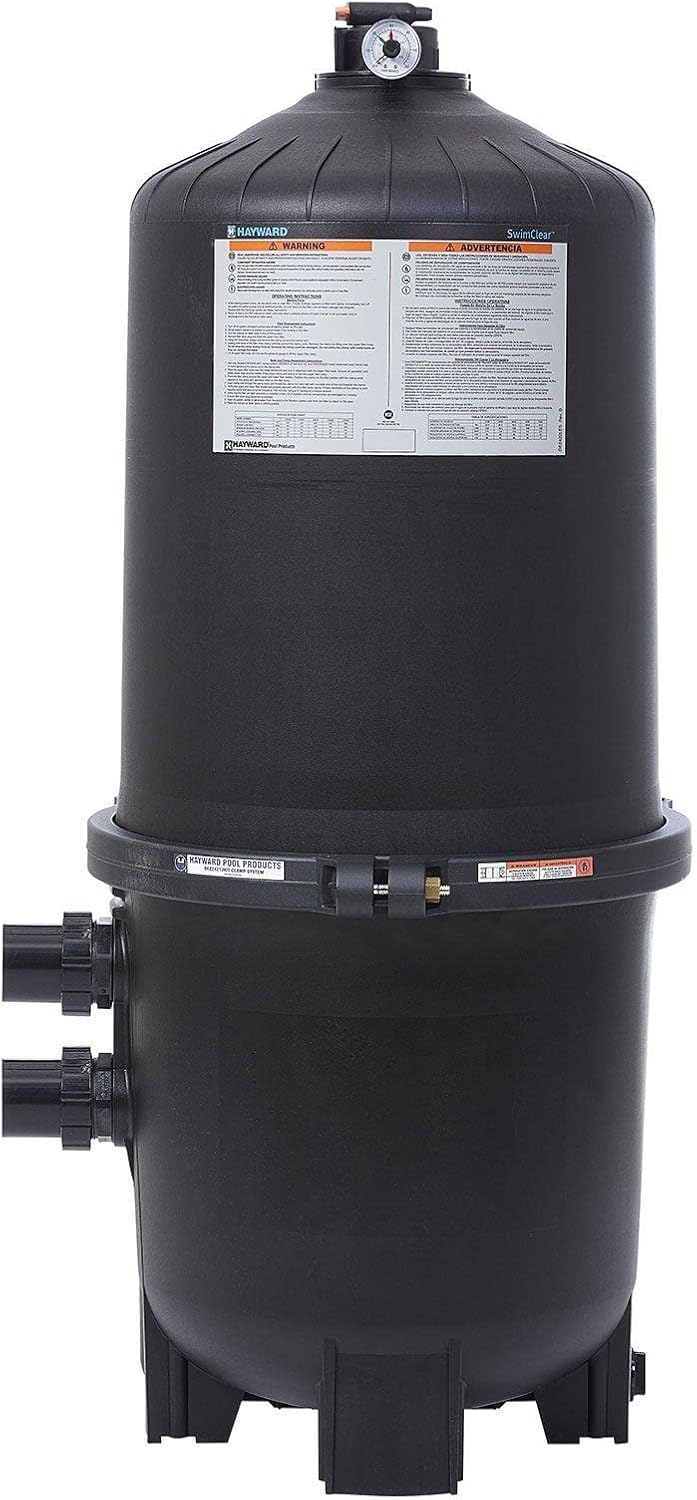

Hayward SwimClear™ 525 Sq Ft Cartridge Filter
The Hayward SwimClear™ 525 Sq Ft Cartridge Filter is the largest SwimClear model — delivering maximum cartridge filtration capacity with no backwashing required. Suitable for both new pool and aftermarket installations. 525 sq ft across four cartridge elements handles up to 150 GPM at 50 PSI, saving up to 2,500 gallons of water per year vs. backwash filter operation.
Built with a durable injection-molded 18-inch tank and the SwimClear's proven efficient flow design. Green certified. Backed by a 1-year warranty.
Key Features

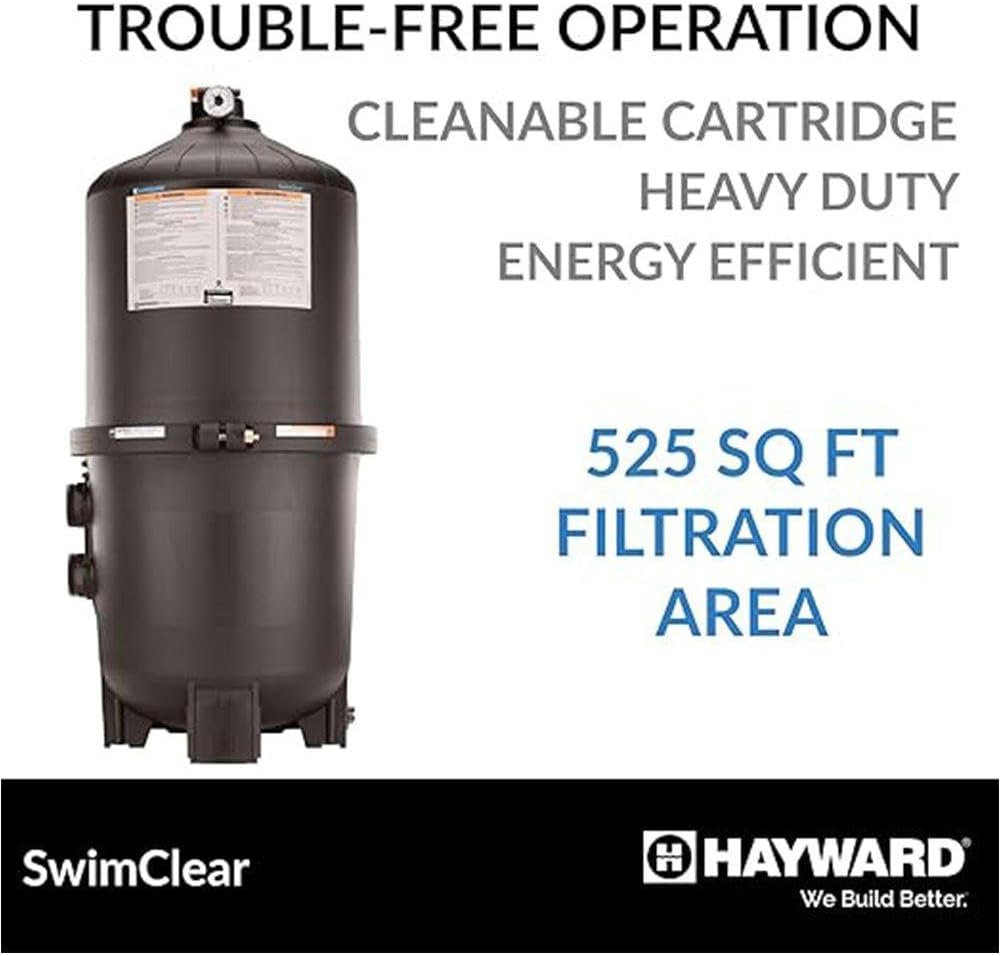

525 Sq Ft — Largest SwimClear Model
Maximum filtration area in the SwimClear line — four cartridge elements totaling 525 sq ft for the longest cleaning intervals and highest dirt-holding capacity.
150 GPM — No Backwashing
Handles up to 150 GPM. Saves up to 2,500 gallons of water per year — no backwash cycle, no water waste.

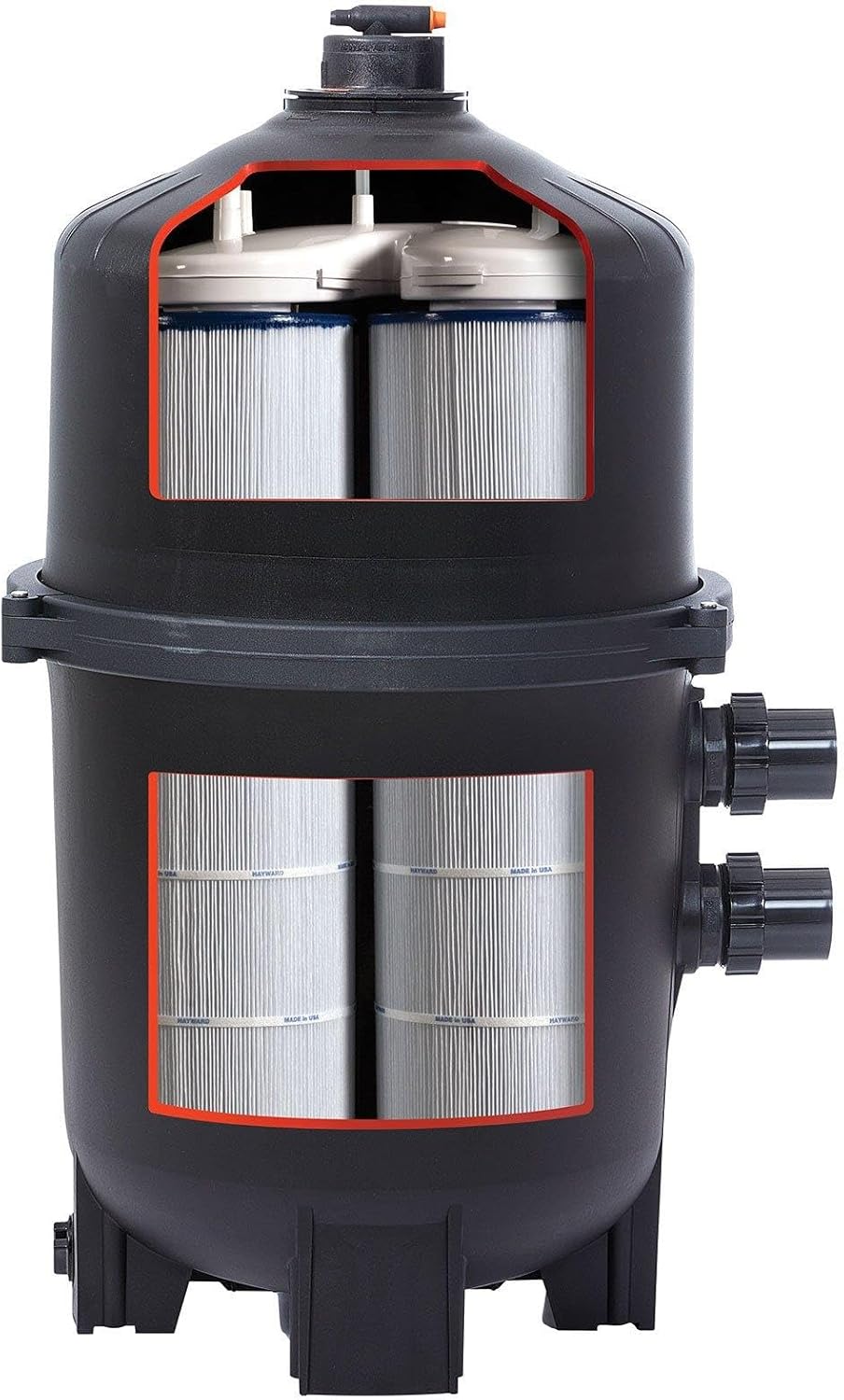

Four-Cartridge Assembly
Four cartridge elements provide 525 sq ft of combined filtration area for maximum performance and extended service intervals.
Most Energy-Efficient Flow
SwimClear's efficient flow design lowers operating cost — green certified.
New Pool and Aftermarket Compatible
Suitable for both new construction installations and replacement of existing filters.
Durable Injection-Molded Tank
Built for demanding applications and long service life.
Superior Water Clarity
Cartridge filtration delivers clearer water than sand without the water waste of backwashing.
Who It's For
- In-ground pool and spa owners who want maximum SwimClear capacity for the longest possible cleaning intervals
- Anyone upgrading from a smaller filter who wants to extend service intervals
- New construction and aftermarket installations requiring 150 GPM cartridge filtration
- Hayward system users wanting brand-matched filtration at the top of the SwimClear lineup
Specifications
Performance
| Filtration Area | 525 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 4 |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Diameter | 18 in |
| Tank Color | Beige / Gray |
| Product Height | 46.5 in |
| Inlet/Outlet Spacing | 5 in center-to-center |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 22 in |
Physical
| Product Weight | 92 lb |
| Shipping Dimensions | 23.1 × 24.6 × 47.8 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C5030 Filter Tank
- Four Cartridge Elements
- One-Piece Flange Clamp
- User Manual
Warranty
The Hayward SwimClear 525 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions

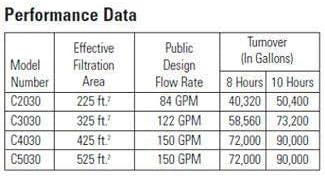

How does the C5030 (525 sq ft) compare to the C4030 (425 sq ft)?
Both are SwimClear 150 GPM filters in the same 18-inch tank. The C5030 has 100 sq ft more filter area — holding more dirt before needing cleaning and extending service intervals. The C5030 ships taller (47.8 in vs. 41.8 in) and weighs slightly more (92 lb vs. 83 lb). Choose the C5030 when maximum filter area and the longest possible cleaning intervals are the priority.
How often do the cartridges need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. With 525 sq ft across four cartridges, this filter holds more dirt than any smaller SwimClear, extending intervals. Open the tank using the one-piece flange clamp, remove the four cartridges, and rinse each thoroughly with a garden hose.
Does the SwimClear require backwashing?
No. SwimClear is a cartridge filter — it does not backwash. To clean, remove and rinse the four cartridge elements with a garden hose. This saves up to 2,500 gallons of water per year compared to sand or D.E. filter backwashing.
