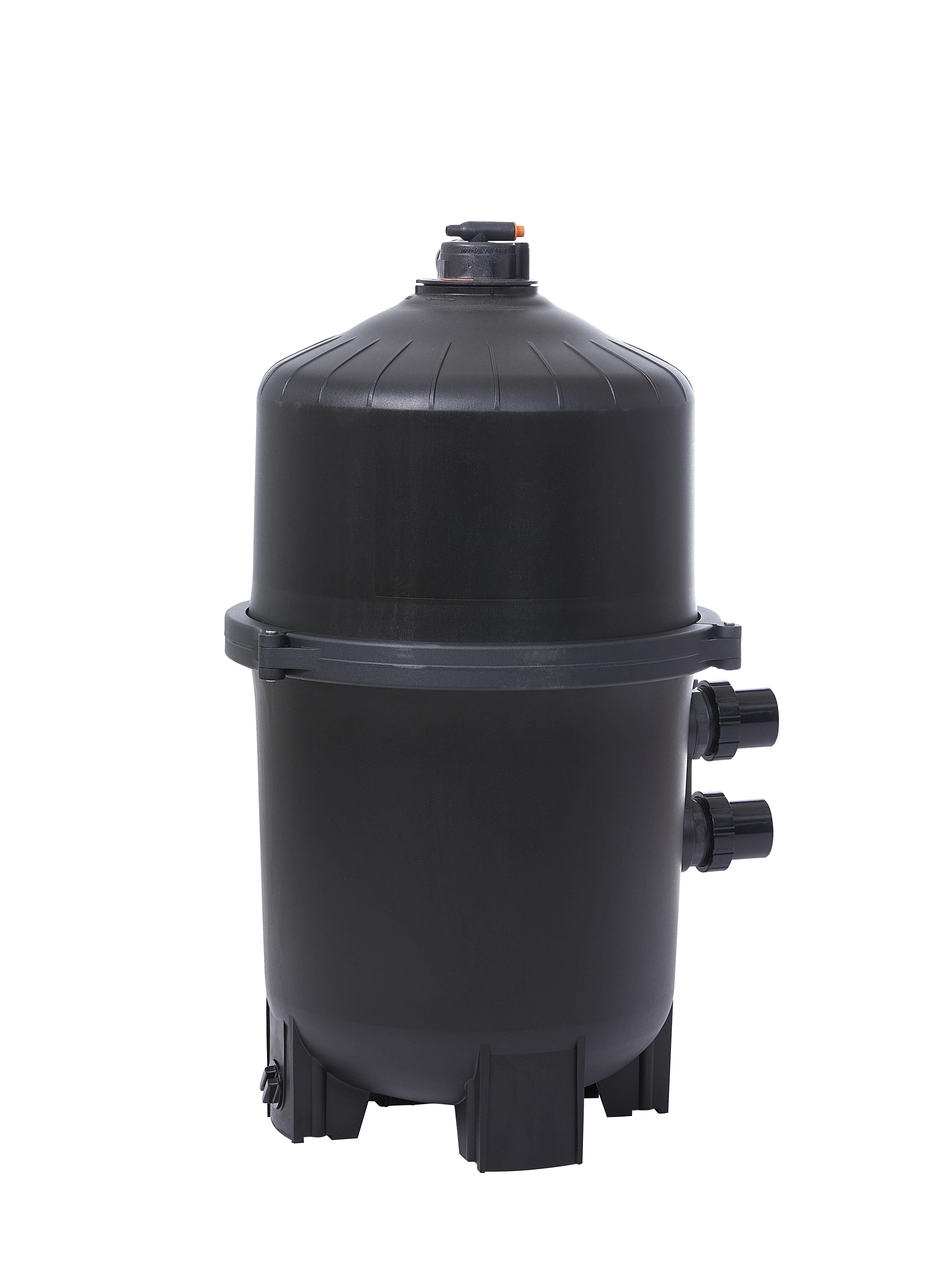

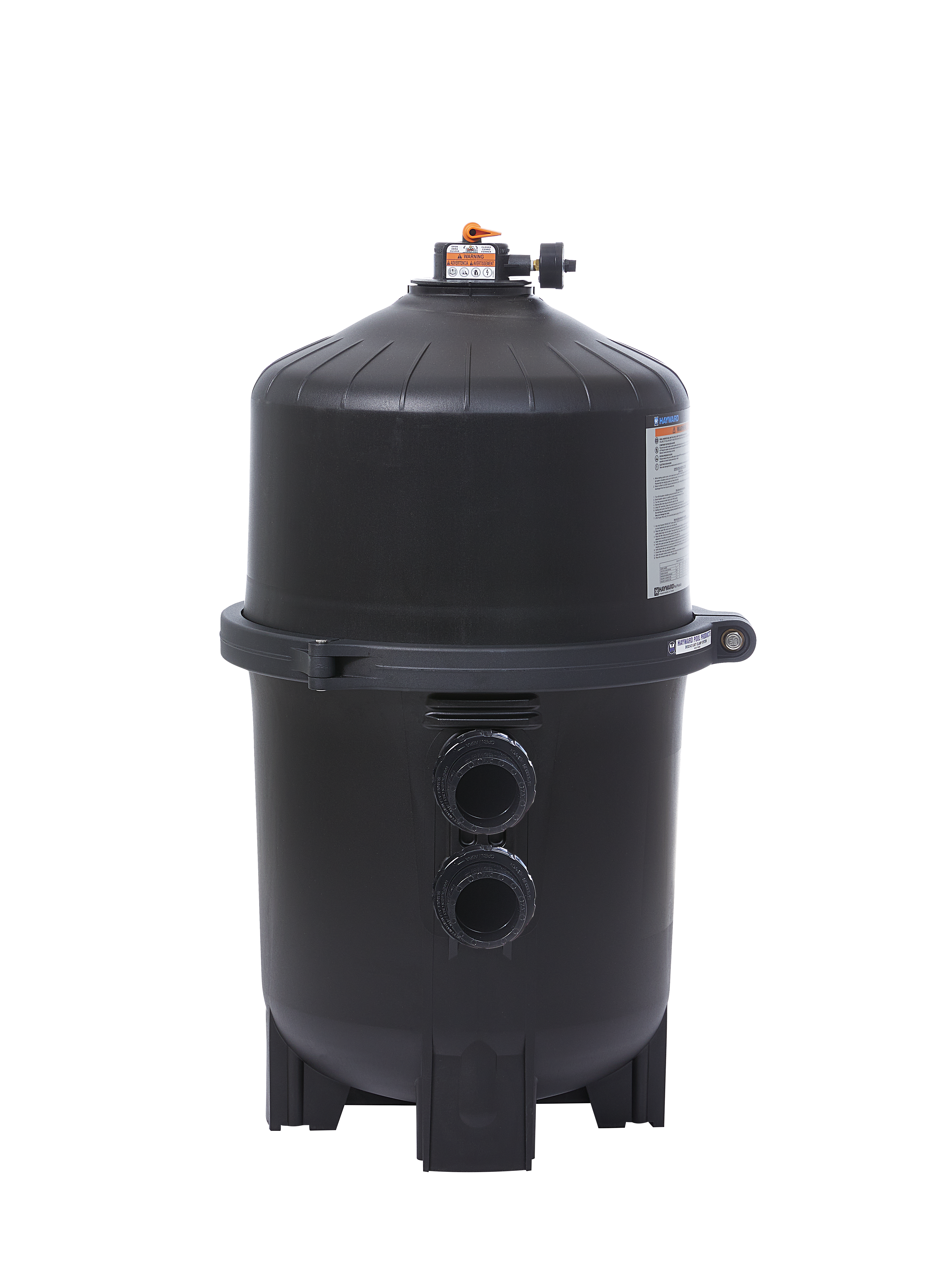

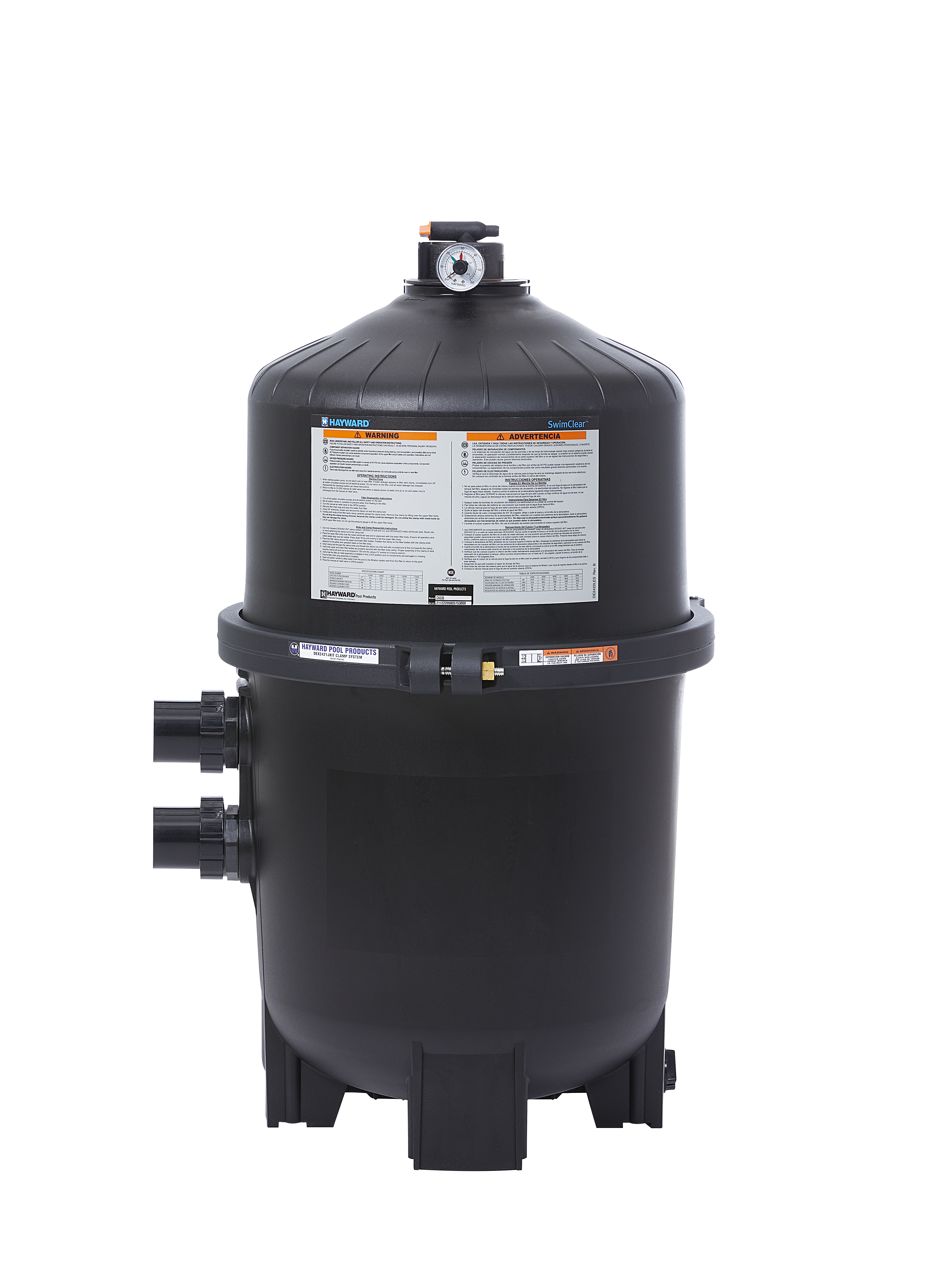

Hayward SwimClear™ 425 Sq Ft Cartridge Filter
The Hayward SwimClear™ 425 Sq Ft Cartridge Filter delivers the most energy-efficient flow with no backwashing required — saving up to 2,500 gallons of water per year. 425 sq ft of filtration area in a single large cartridge element handles up to 150 GPM at 50 PSI, providing superior water clarity for in-ground pools and spas.
Built with a durable injection-molded tank, 18-inch diameter, and the SwimClear's proven efficient flow design. Simply clean by rinsing the cartridge element with a garden hose. Green certified. Backed by a 1-year warranty.
Key Features

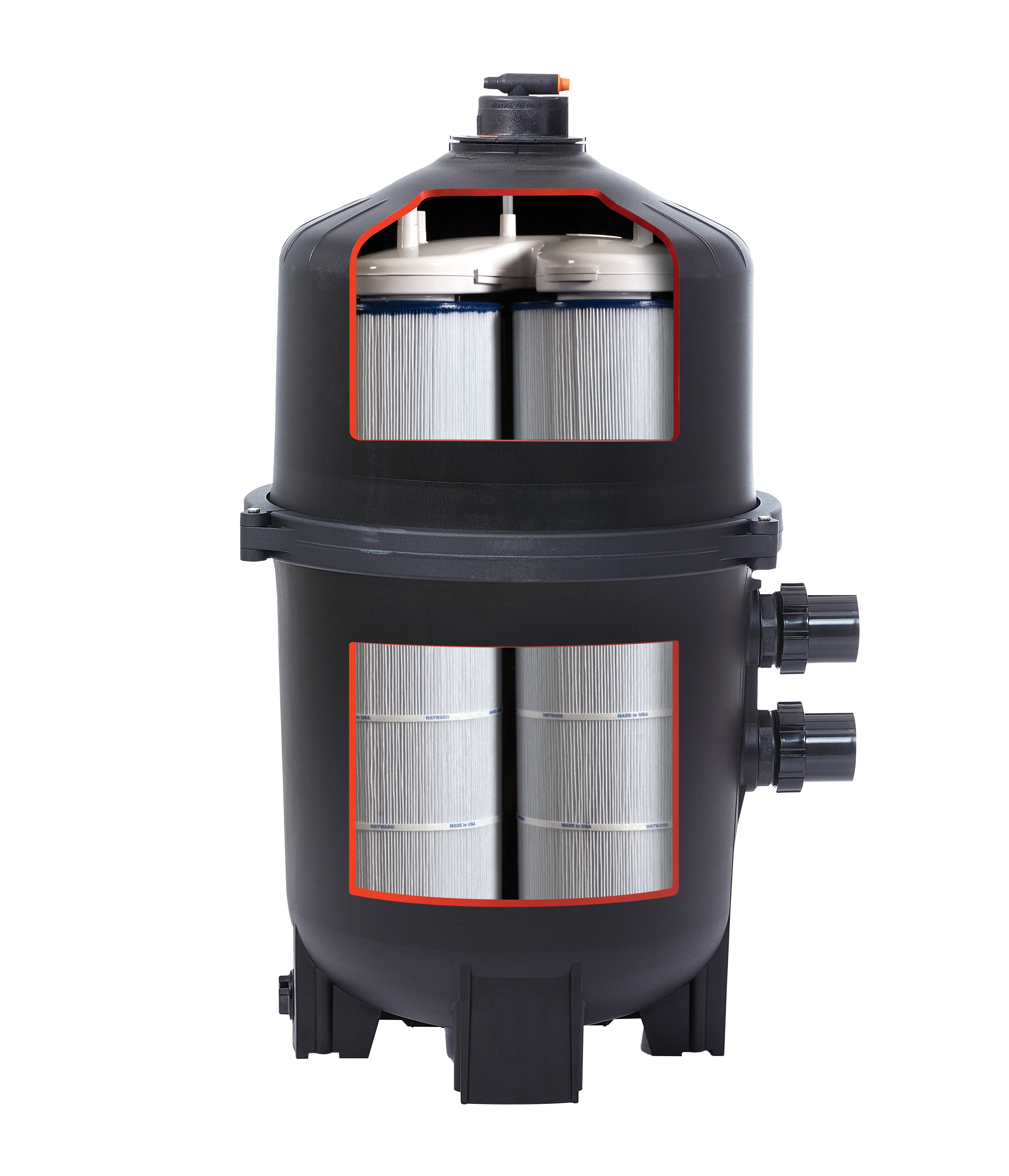

425 Sq Ft Single Cartridge
425 sq ft of filtration area in a single large cartridge element — larger capacity than the 325 sq ft C3030 in the same SwimClear tank footprint.
150 GPM Flow Rate
Rated for up to 150 GPM — handles large in-ground pool circulation systems.
No Backwashing Required
Saves up to 2,500 gallons of water per year — simply rinse the cartridge with a garden hose to clean.
Most Energy-Efficient Flow
SwimClear's efficient flow design lowers cost of operation vs. sand or D.E. backwash filters.
Durable Injection-Molded Tank
Built to handle demanding applications and environmental conditions.
Superior Water Clarity
Crystal-clear water with cartridge filtration superior to sand.
Who It's For
- In-ground pool and spa owners who want high-capacity cartridge filtration at 150 GPM with no backwashing
- Pools where a single-cartridge design is preferred over multi-element setups for simpler service
- Anyone upgrading from the 325 sq ft SwimClear (C3030) who needs more filter area
- Hayward system users wanting brand-matched cartridge filtration at maximum SwimClear capacity
Specifications
Performance
| Filtration Area | 425 sq ft |
| Design / Max Flow Rate | 150 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 1 (Single Large Element) |
Tank
| Tank Construction | Injection-Molded |
| Tank Diameter | 18 in |
| Tank Color | Beige / Gray |
| Product Height | 34.5 in |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 23.1 × 24.6 × 41.8 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C4030 Filter Tank
- Single Cartridge Element
- One-Piece Flange Clamp
- User Manual
Warranty
The Hayward SwimClear 425 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the C4030 (425 sq ft) differ from the C3030 (325 sq ft)?
Both are SwimClear single-cartridge filters in the same 18-inch tank. The C4030 has 100 sq ft more filtration area and a higher 150 GPM flow rating vs. 122 GPM for the C3030. The C4030 is also taller (ships at 41.8 in vs. 35.7 in). Choose the C4030 for larger pools, higher-flow systems, or when maximum filter area and longer cleaning intervals are preferred.
Does the SwimClear use one cartridge or multiple?
The SwimClear C4030 uses a single large cartridge element — unlike some competing filters that use four separate cartridges. Single-cartridge cleaning means one element to remove, rinse, and reinstall rather than handling four.
How often does the cartridge need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. With 425 sq ft of area, the C4030 holds more dirt than smaller filters, extending cleaning intervals. Remove the cartridge and rinse thoroughly with a garden hose.
